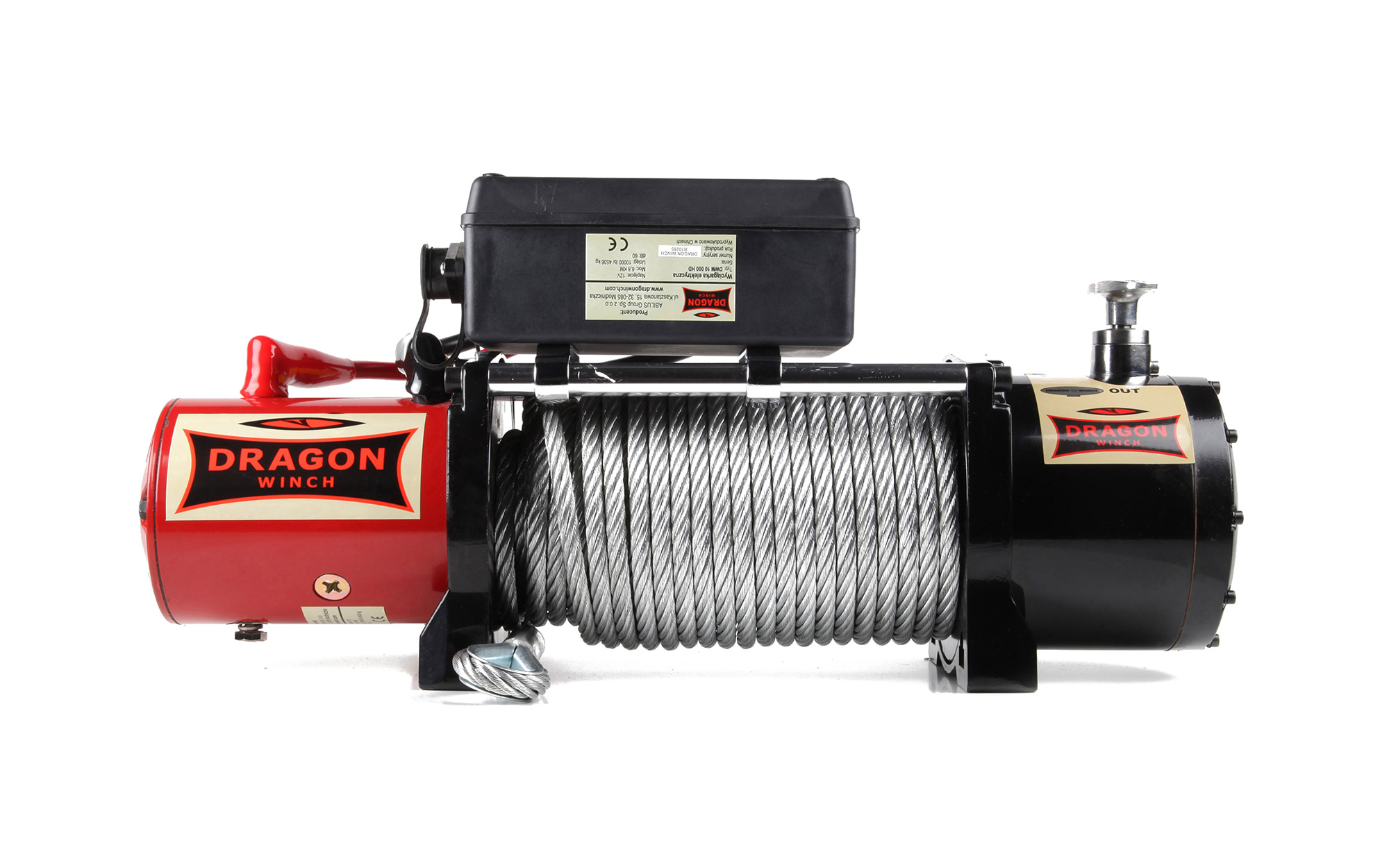

Maverick 10000 HD
Built for Medium-Large Off-Road & Industrial vehicles
The Dragon Winch Maverick 10000 HD is suited for many different uses including Recovery Vehicles, UTVs, Off-Road & 4x4s, Industrial & Construction and Trailers. Durable and tough due to superior materials and construction methods, the Maverick 10000 HD provides a robust and reliable winching solution in all weather conditions and environments. It is capable of pulling upto 10,000 lb / 4,536 kg / 4.5 t. The Maverick 10000 HD comes with a 28m Steel Cable with Clevis Hook fed through Roller Guides, which are all included. The winch is controlled with a Wired & Wireless Controller. The Maverick 10000 HD comes in a 12v option only. The winch comes with a two-year return-to-base warranty.
Key Features
| Pulling Rate | 10000lbs (4536kg) | Weight | 39kg | Braking System | Dynamic |
|---|---|---|---|---|---|
| Rope Length | 28m - 8.4mm | Dimensions (w/d/h) | 535mm x 160mm x 245mm | Transmission/Gear System | 3 Stage Planetary |
| Horsepower | 6.8hp | Mounting Screw Spacing | 254mm x 114mm | Gear/Speed Reduction Ratio | 265:1 |
| Power Supply | Electrical (Battery) | Drum Size | 63.5mm x 244mm | Guide Bar | 4 Roll/Slide |
| Voltage | 12v | Feeding Cable | 1.83m | ||
| Control | Remote Control & Wireless Remote Control |
Pack Includes

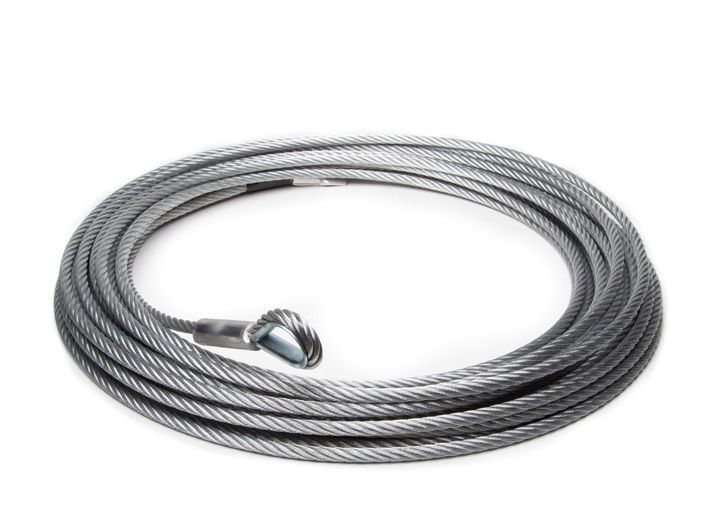

28m of 8.4mm Steel Cable

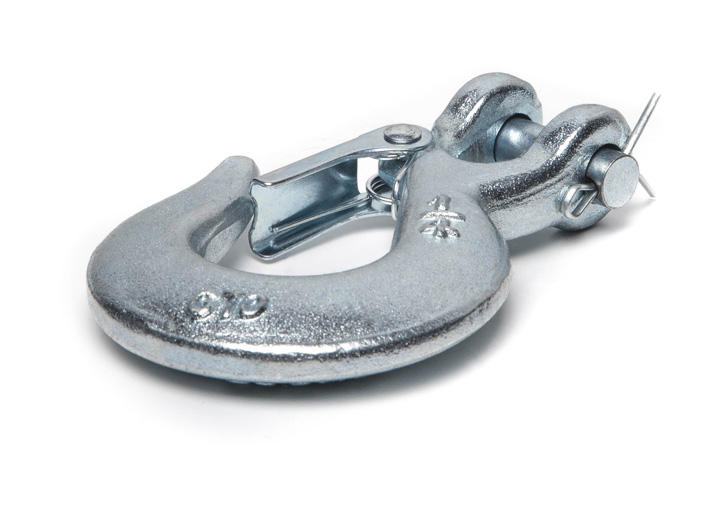

Clevis Hook

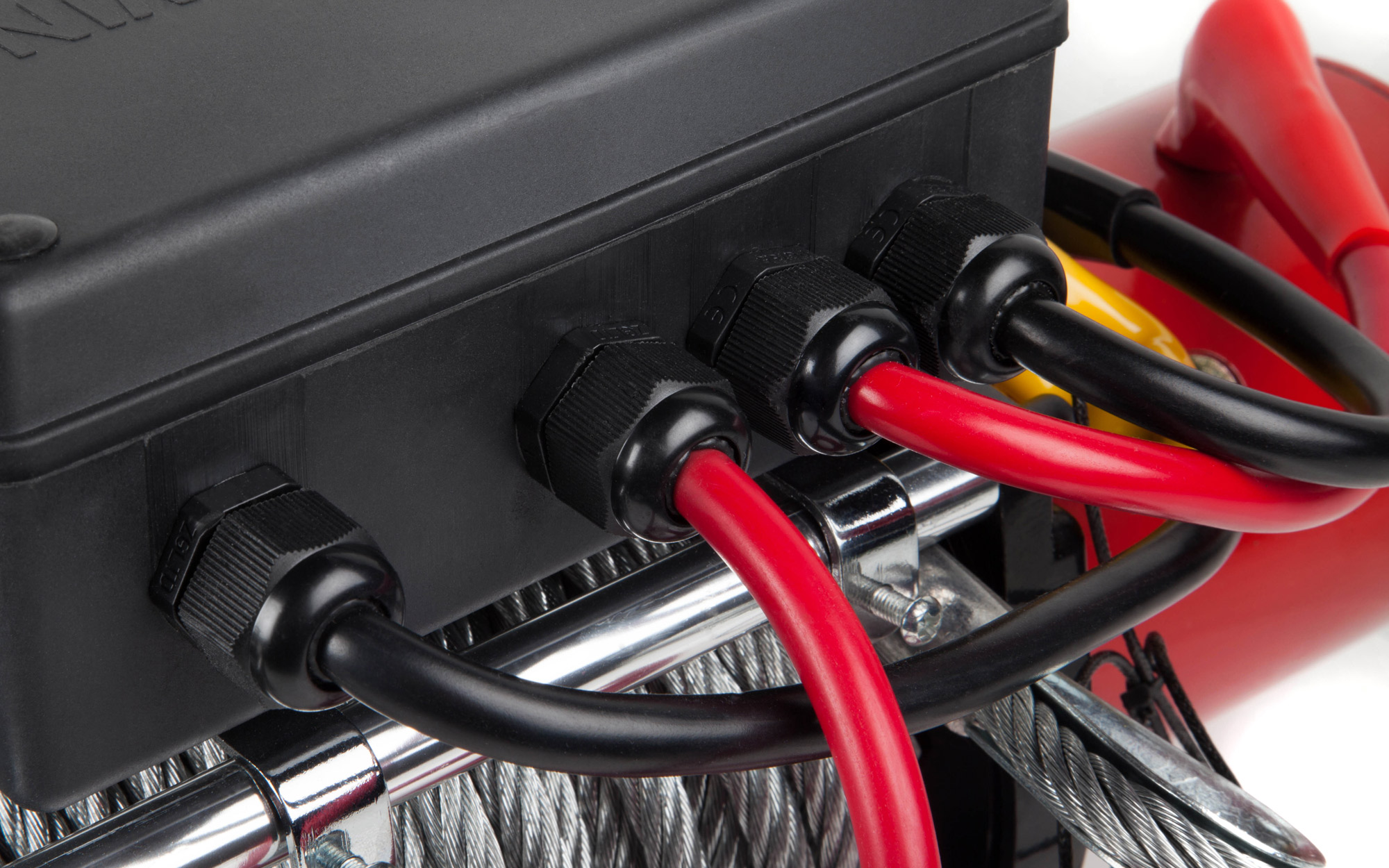

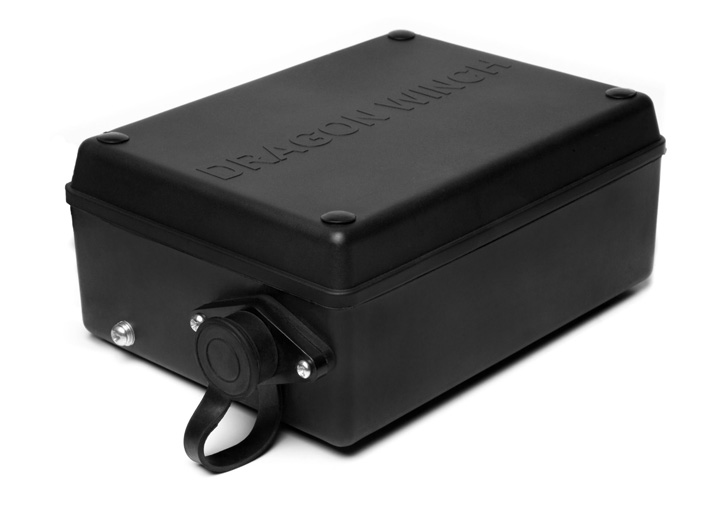

Control Box

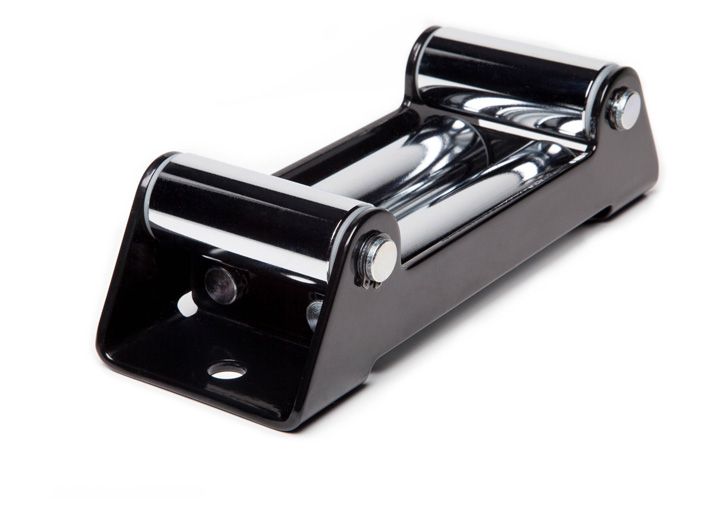

Roller Guides

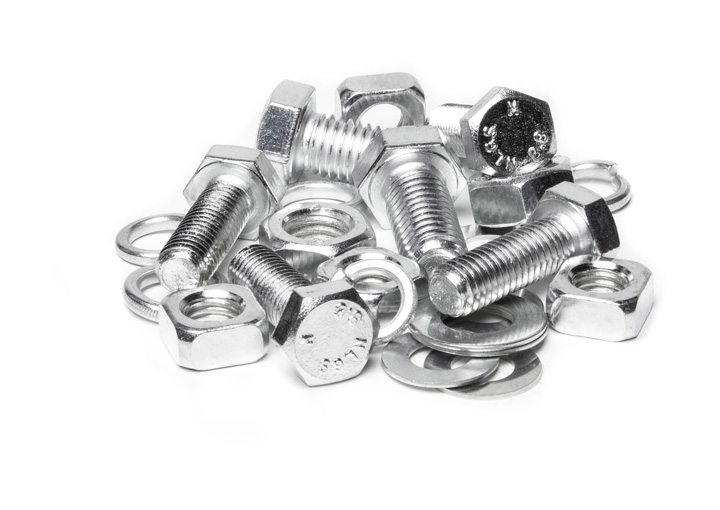

Mounting Screws

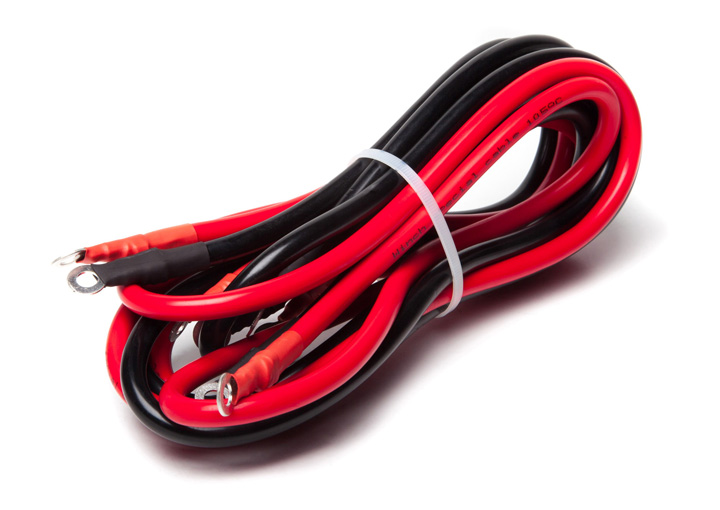

Power Cables
Wired Controller

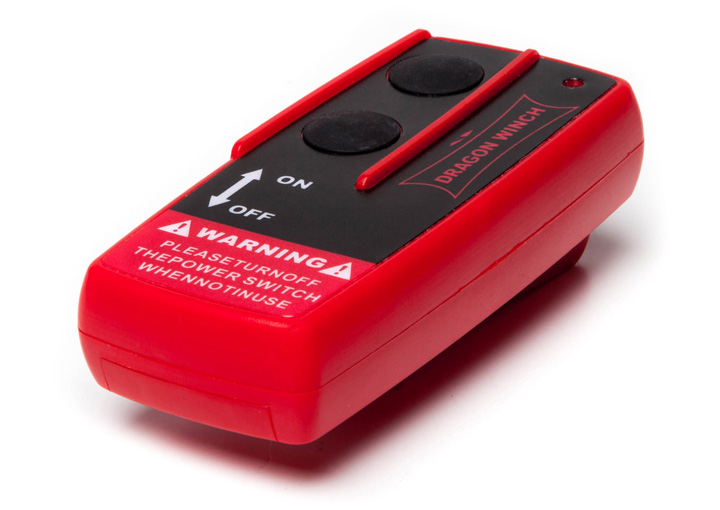

Wireless Controller
Wireless Controller Batteries

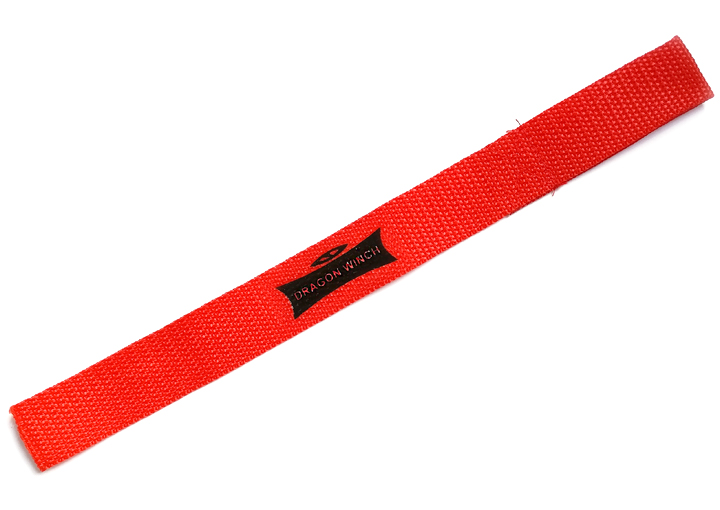

Marker Tab
Manual
Control Options

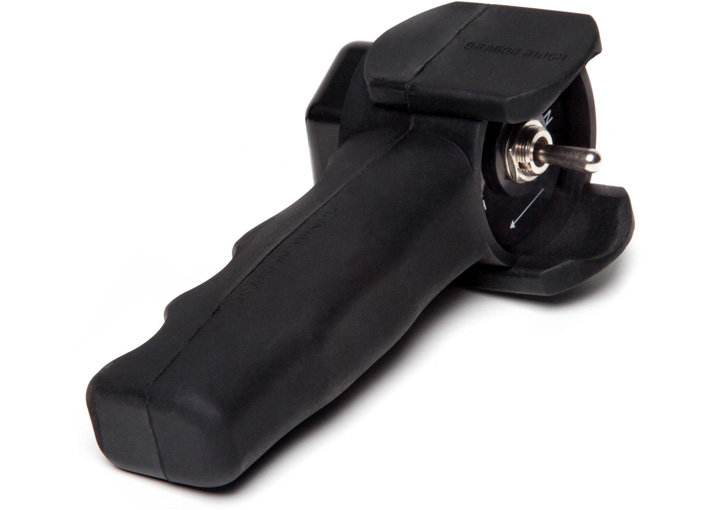

Wired Remote Control
Built to tough Dragon Winch standards, a wired control gives a simple and totally reliable solution for controlling your winch in extreme conditions.
Wireless Remote Control
Compact, simple and remote to the winch itself, a wireless control option gives the operator greater ability to focus on the vehicle being towed without being restricted by cables.
Additional Information
| Rope Winding Speed & Power Consumption | ||||
|---|---|---|---|---|
| Rope Load (kg) | 0 | 910 | 1814 | 4536 |
| Rope Speed (m/min) | 8 | 4.5 | 3.5 | 2.5 |
| Power Consumption (amp) | 70 | 150 | 217 | 435 |
| Pulling Force Depending On Rope Layer | ||||
|---|---|---|---|---|
| Rope Layer | 1 | 2 | 3 | 4 |
| Rope Pull (kg) | 4536 | 3653 | 3004 | 2570 |
| Rope Length On The Drum (m) | 4.8 | 12 | 21 | 28 |
Comparison
| Maverick 10000 HD | Maverick 12000 HD | Maverick 12000 HDI | Maverick 13000 HD | |
|---|---|---|---|---|
 |  |  |  | |
| Pulling Rate | 10000lbs (4536kg) | 12000lbs (5443kg) | 12000lbs (5443kg) | 13000lbs (5897kg) |
| Horsepower | 6.8hp | 6.8hp | 6.8hp | 6.8hp |
| Dimensions | 535mm x 160mm x 245mm | 535mm x 160mm x 245mm | 535mm x 160mm x 255mm | 535mm x 160mm x 235mm |
| Voltage Options | 12v | 12/24v | 12v | 12/24v |
| Rope Type | Wire | Wire | Wire | Wire |
| Rope Length | 30m | 30m | 30m | 30m |
| Gear Reduction Ratio | 265:1 | 265:1 | 265:1 | 265:1 |
| Drum Size (Diameter/Length) | 63.5mm x 244mm | 63.5mm x 244mm | 63.5mm x 244mm | 63.5mm x 244mm |
| Feeding Cable Length | 1.83m | 1.83m | 1.83m | 1.83m |
| Guide Bar | 4 Roll/Slide | 4 Roll/Slide | 4 Roll/Slide | 4 Roll/Slide |
| Price | 315.95GBP | 399.99GBP | 511.99GBP | 435.99GBP |
