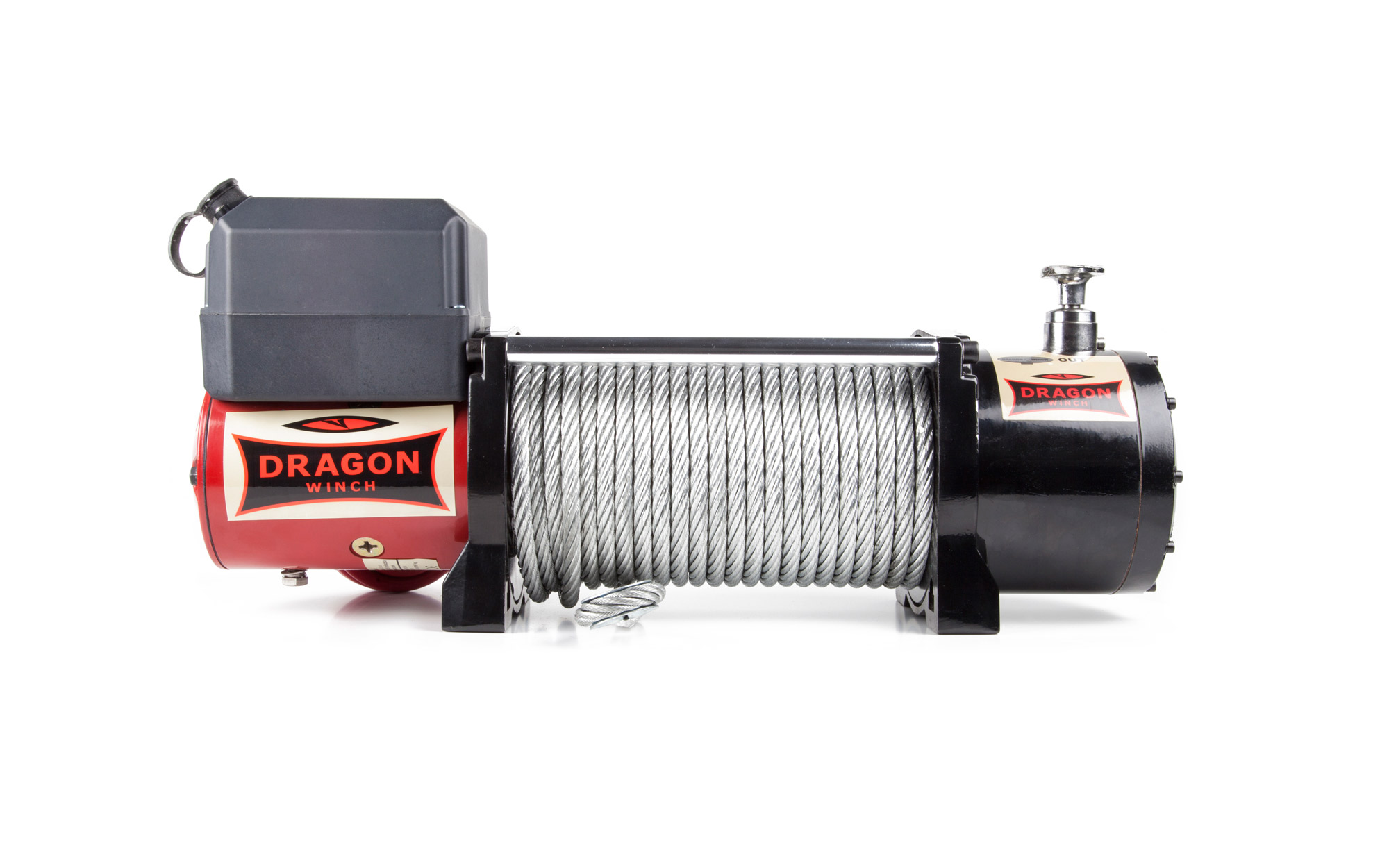

Maverick 13000 HD
Built for Medium-Large Off-Road & Industrial vehicles
The Dragon Winch Maverick 13000 HD is recommended for Recovery Vehicles, Off-Road and 4x4s. Durable and tough due to superior materials and construction methods, the Maverick 13000 HD provides a robust and reliable winching solution in all weather conditions and environments. It is capable of pulling up to 13,000 lb (5,897 kg / 5.9 t). The Maverick 13000 HD comes with a 28m of 9mm Steel Cable with Clevis Hook fed through Roller Guides, which are all included. The winch is controlled with a Wired & Wireless Controller. The Maverick 13000 HD comes in 12v and 24v options. The winch comes with a two-year return-to-base warranty.
Key Features
| Pulling Rate | 13000lbs (5897kg) | Weight | 42kg | Braking System | Dynamic |
|---|---|---|---|---|---|
| Rope Length | 30m - 10.3mm | Dimensions (w/d/h) | 535mm x 160mm x 235mm | Transmission/Gear System | 3 Stage Planetary |
| Horsepower | 6.8hp | Mounting Screw Spacing | 254mm x 114mm | Gear/Speed Reduction Ratio | 265:1 |
| Power Supply | Electrical (Battery) | Drum Size | 63.5mm x244mm | Guide Bar | 4 Roll/Slide |
| Voltage | 12/24v | Feeding Cable | 1.83m | ||
| Control | Remote Control & Wireless Remote Control |
Pack Includes

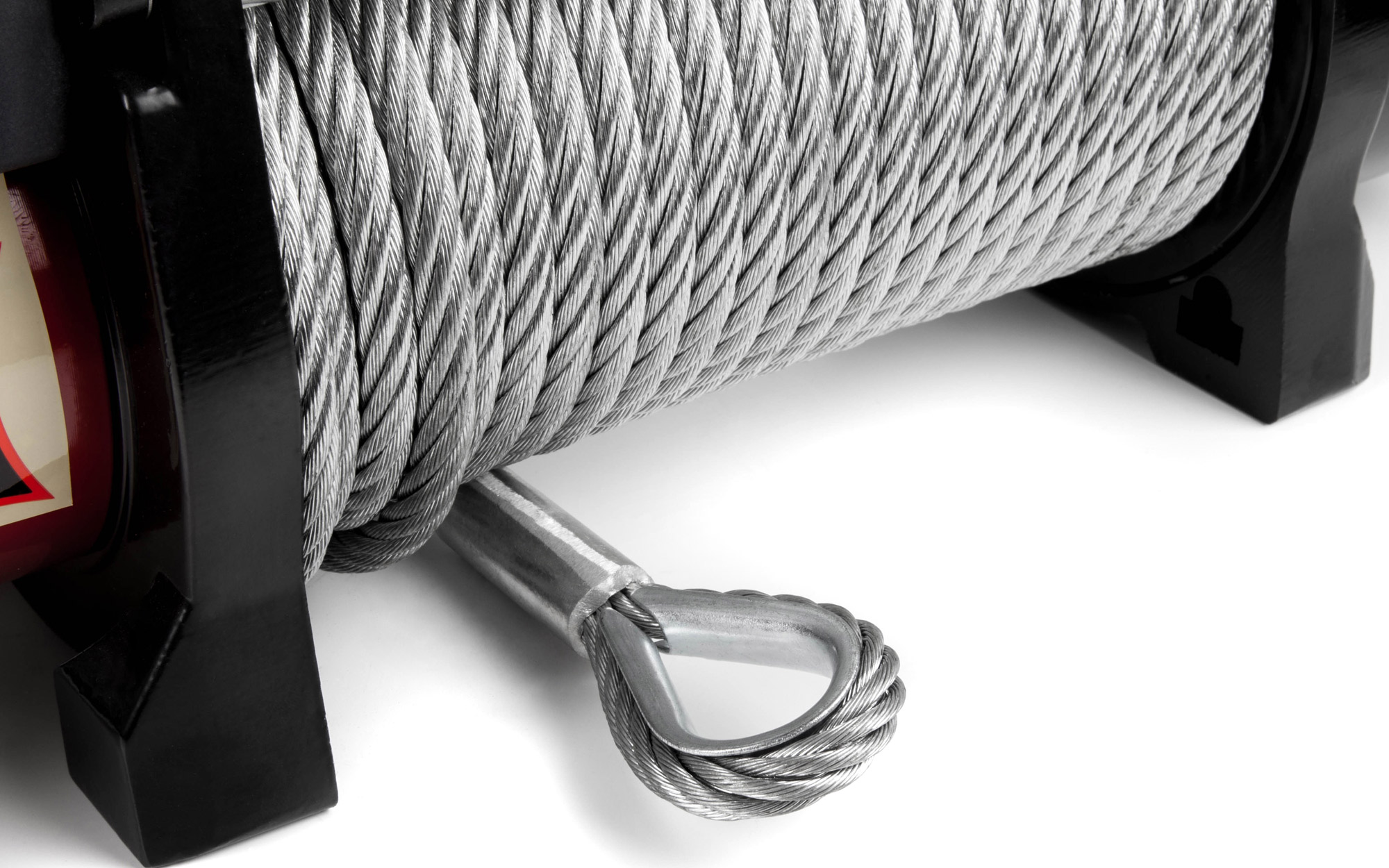

28m of 9mm Steel Cable
Clevis Hook
Control Box
Roller Guides
Mounting Screws
Power Cables
Wired Controller
Wireless Controller
Wireless Controller Batteries
Marker Tab
Manual
Control Options
Wired Remote Control
Built to tough Dragon Winch standards, a wired control gives a simple and totally reliable solution for controlling your winch in extreme conditions.
Wireless Remote Control
Compact, simple and remote to the winch itself, a wireless control option gives the operator greater ability to focus on the vehicle being towed without being restricted by cables.
Additional Information
| Rope Winding Speed & Power Consumption | ||||
|---|---|---|---|---|
| Rope Load (kg) | 0 | 910 | 2722 | 5897 |
| Rope Speed (m/min) | 6.5 | 3.5 | 2.2 | 0.8 |
| Power Consumption (amp) | 65 | 126 | 230 | 420 |
| Pulling Force Depending On Rope Layer | ||||
|---|---|---|---|---|
| Rope Layer | 1 | 2 | 3 | 4 |
| Rope Pull (kg) | 5897 | 4749 | 3906 | 3341 |
| Rope Length On The Drum (m) | 4.8 | 12 | 21 | 28 |
Comparison
| Maverick 12000 HD | Maverick 13000 HD | Maverick 8000 HD | |
|---|---|---|---|
 |  |  | |
| Pulling Rate | 12000lbs (5443kg) | 13000lbs (5897kg) | 8000lbs (3629kg) |
| Horsepower | 6.8hp | 6.8hp | 5.5hp |
| Dimensions | 535mm x 160mm x 245mm | 535mm x 160mm x 235mm | 450mm x 160mm x 245mm |
| Voltage Options | 12v/24v | 12/24v | 12v |
| Rope Type | Wire | Wire | Wire |
| Rope Length | 30m | 30m | 24m |
| Gear Reduction Ratio | 265:1 | 265:1 | 265:1 |
| Drum Size (Diameter/Length) | 63.5mm x 244mm | 63.5mm x 244mm | 63.5mm x 134mm |
| Feeding Cable Length | 1.83m | 1.83m | 1.5m |
| Guide Bar | 4 Roll/slide | 4 Roll/slide | 4 Roll/slide |
| Price | 399.99GBP | 435.99GBP | 396.99GBP |
