Built for Medium-Large ATVs and UTVs.

Buy now from our online store...255.95 GBPView Product

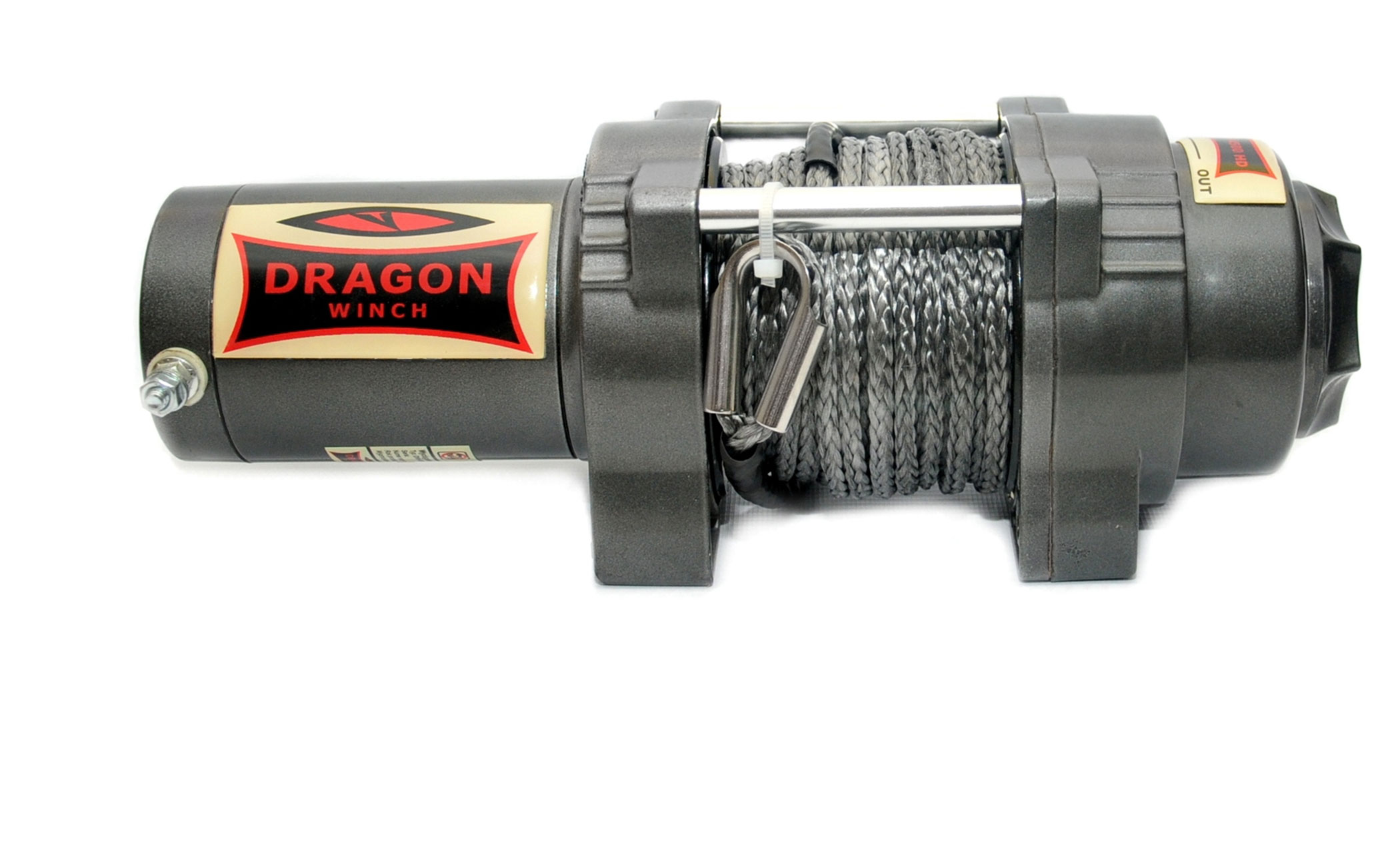

The Dragon Winch Highlander 4500 HDL is recommended for ATVs & Quads and UTVs. Durable and tough due to superior materials and construction methods, the Highlander 4500 HDL provides a robust and reliable winching solution in all weather conditions and environments. It is capable of pulling up to 4,500 lb (2,041 kg / 2.0 t). The Highlander 4500 HDL comes with a 15m of 6mm Synthetic Rope with Clevis Hook fed through an Aluminium Fairlead, which are all included. The winch is controlled with a Steering Wheel Switch & Wireless Remote Control. The Highlander 4500 HDL comes in a 12v option only. The winch comes with a two-year return-to-base warranty.

Key Features

Pulling Rate4500lbs (2041kg)Weight11.4kgBraking SystemAutomatic
Rope Length15m of 6mm Synthetic RopeDimensions (w/d/h)340mm x 114mm x 120mmTransmission/Gear System3 Stage Planetary
Horsepower1.9hpMounting Screw Spacing125mm x 80mmGear/Speed Reduction Ratio136:1
Power SupplyElectricalGuide Bar4 Roll
Voltage12v
ControlRemote Control & Wireless Remote Control

Control Options

Switch On Steering Wheel

A simple and convenient switch that comes with everything you need to mount it in your vehicle.

Wireless Remote Control

Compact, simple and remote to the winch itself, a wireless control option gives the operator greater ability to focus on the vehicle being towed without being restricted by cables.

Additional Information

Rope Winding Speed & Power Consumption
Rope Load (kg)09072041
Rope Speed (m/min)7.542.1
Power Consumption (amp)2590160
Pulling Force Depending On Rope Layer
Rope Layer12345
Rope Pull (kg)20411588141212781072
Rope Length On The Drum (m)35.97.812.515

Comparison

Highlander 4500 HD SHighlander 4500 HDL S
Pulling Rate4500lbs (2041kg)4500lbs (2041kg)
Horsepower1.9hp1.9hp
Dimensions340mm x 114mm x 120mm375mm x 114mm x 120mm
Voltage Options12v12v
Rope TypeSyntheticSynthetic
Rope Length15m15m
Gear Reduction Ratio136:1136:1
Price275.95GBP
310.95GBP
