Built for Medium-Large ATVs and UTVs.

Buy now from our online store... View Product

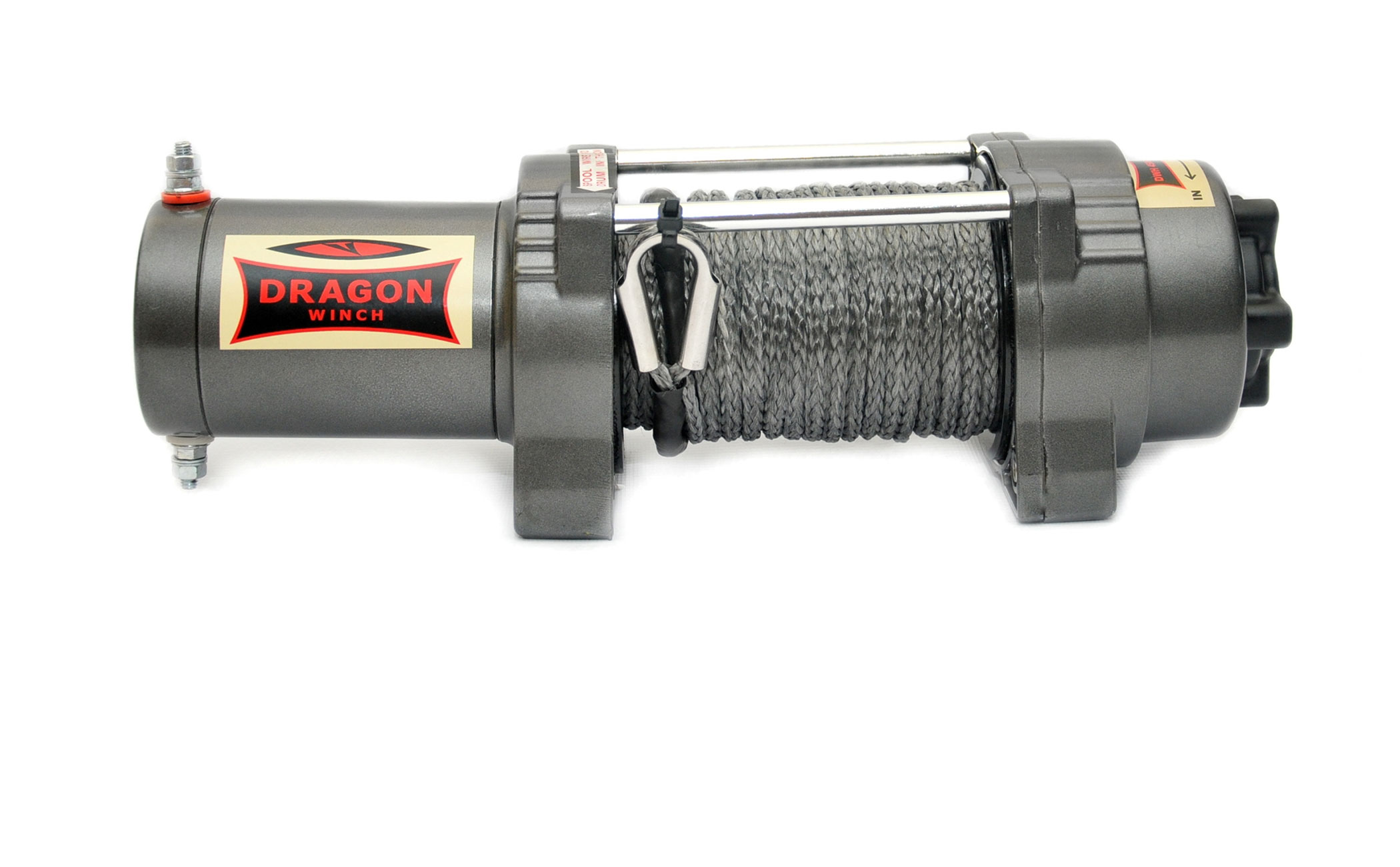

The Dragon Winch Highlander 4500 HDL S is ideally suited for medium to large ATVs and UTVs as it's capable of towing up to 4,500lbs (2041kg). Designed with a stronger motor, heavy duty gearbox and a unique construction for harsh operating conditions, the Highlander 4500 HDL S guarantees the highest level of reliability and safety with the added benefit of a synthetic rope.

Key Features

Pulling Rate4500lbs (2041kg)Weight12.7kgBraking SystemAutomatic
Rope Length15m of 6mm Synthetic RopeDimensions (w/d/h)375mm x 114mm x 120mmTransmission/Gear System3 Stage Planetary
Horsepower1.9hpMounting Screw Spacing170mm x 765mmGear/Speed Reduction Ratio136:1
Power SupplyElectrical
ControlSwitch On Steering Wheel & Wireless Remote Control

Control Options

Switch On Steering Wheel

A simple and convenient switch that comes with everything you need to mount it in your vehicle.

Wireless Remote Control

Compact, simple and remote to the winch itself, a wireless control option gives the operator greater ability to focus on the vehicle being towed without being restricted by cables.

Additional Information

Rope Winding Speed & Power Consumption
Rope Load (kg)09072041
Rope Speed (m/min)7.542.1
Power Consumption (amp)2590160
Pulling Force Depending On Rope Layer
Rope Layer12345
Rope Pull (kg)20411588141212781072
Rope Length On The Drum (m)4710.514.520


Highlander 4500 HDHighlander 4500 HDL
Pulling Rate4500lbs (2041kg)4500lbs (2041kg)
Dimensions340mm x 114mm x 120mm375mm x 114mm x 120mm
Voltage Options12v12v
Rope Type6mm Synthetic Rope6mm Synthetic Rope
Rope Length15m15m
Gear Reduction Ratio136:1136:1
