Built for Medium-Large Off-Road and Industrial vehicles.

Buy now from our online store...555.95 GBPView Product

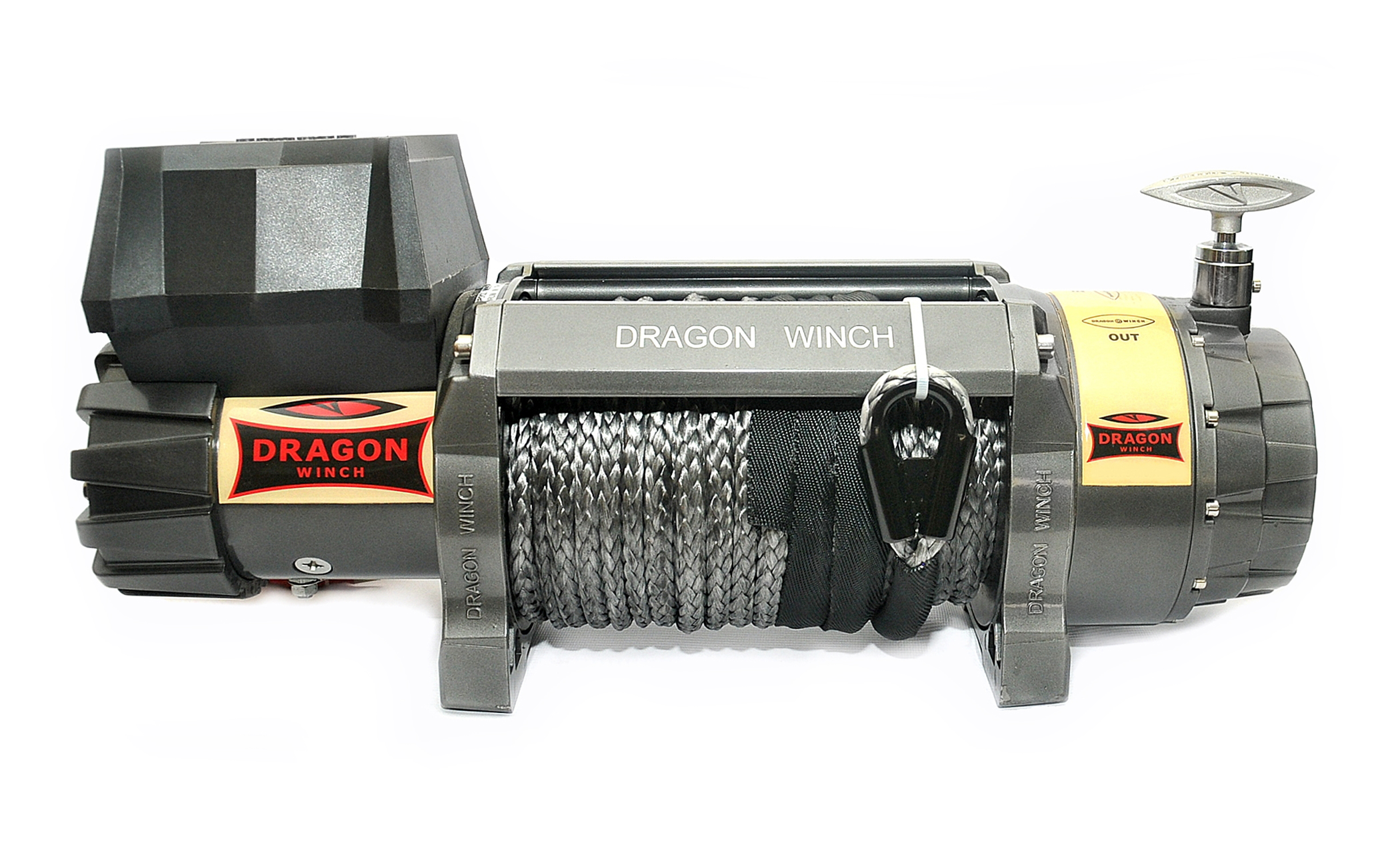

The Dragon Winch Highlander 12000 HD is recommended for Off-Road & 4x4s. Durable and tough due to superior materials and construction methods, the Highlander 12000 HD provides a robust and reliable winching solution in all weather conditions and environments. It is capable of pulling up to 12,000 lb (5,443 kg / 5.4 t). The Highlander 12000 HD comes with a 26m of 10mm Synthetic Rope with Clevis Hook fed through an Aluminium Fairlead, which are all included. The winch is controlled with a Wired & Wireless Controller. The Highlander 12000 HD comes in 12v and 24v options. The winch comes with a two-year return-to-base warranty.

Key Features

Pulling Rate12000lbs (5443kg)Weight48kgBraking SystemDynamic
Rope Length26m of 10mm Synthetic RopeDimensions (w/d/h)535mm x 160mm x 245mmTransmission/Gear System3 Stage Planetary
Horsepower9hpMounting Screw Spacing254mm x 114mmGear/Speed Reduction Ratio273:1
Power SupplyElectricalDrum Size63.5mm x 244mmGuide Bar4 Roll/Slide
Voltage12/24vFeeding Cable1.83m
ControlRemote Control & Wireless Remote Control

Control Options

Wired Remote Control

Built to tough Dragon Winch standards, a wired control gives a simple and totally reliable solution for controlling your winch in extreme conditions.

Wireless Remote Control

Compact, simple and remote to the winch itself, a wireless control option gives the operator greater ability to focus on the vehicle being towed without being restricted by cables.

Additional Information

Rope Winding Speed & Power Consumption
Rope Load (kg)091045325443
Rope Speed (m/min)852.52
Power Consumption (amp)65130280350
Pulling Force Depending On Rope Layer
Rope Layer1234
Rope Pull (kg)5443438336053084
Rope Length On The Drum (m)4.8122128

Comparison

Highlander 9000 HD SHighlander 12000 HD S
Pulling Rate9000lbs (4082kg)12000lbs (5443kg)
Horsepower9hp9hp
Dimensions590mm x 166mm x 270mm575mm x 166mm x 270mm
Voltage Options12v12/24v
Rope TypeSyntheticSynthetic
Rope Length30m30m
Gear Reduction Ratio136:1273:1
Drum Size (Diameter/Length)63.5mm x 244mm63.5mm x 244mm
Feeding Cable Length1.83m1.83m
Guide Bar4 Roll/Slide4 Roll/Slide
Price635.95GBP
545.95GBP
