Built for Medium-Large Off-Road vehicles.

Buy now from our online store...599.95 GBPView Product

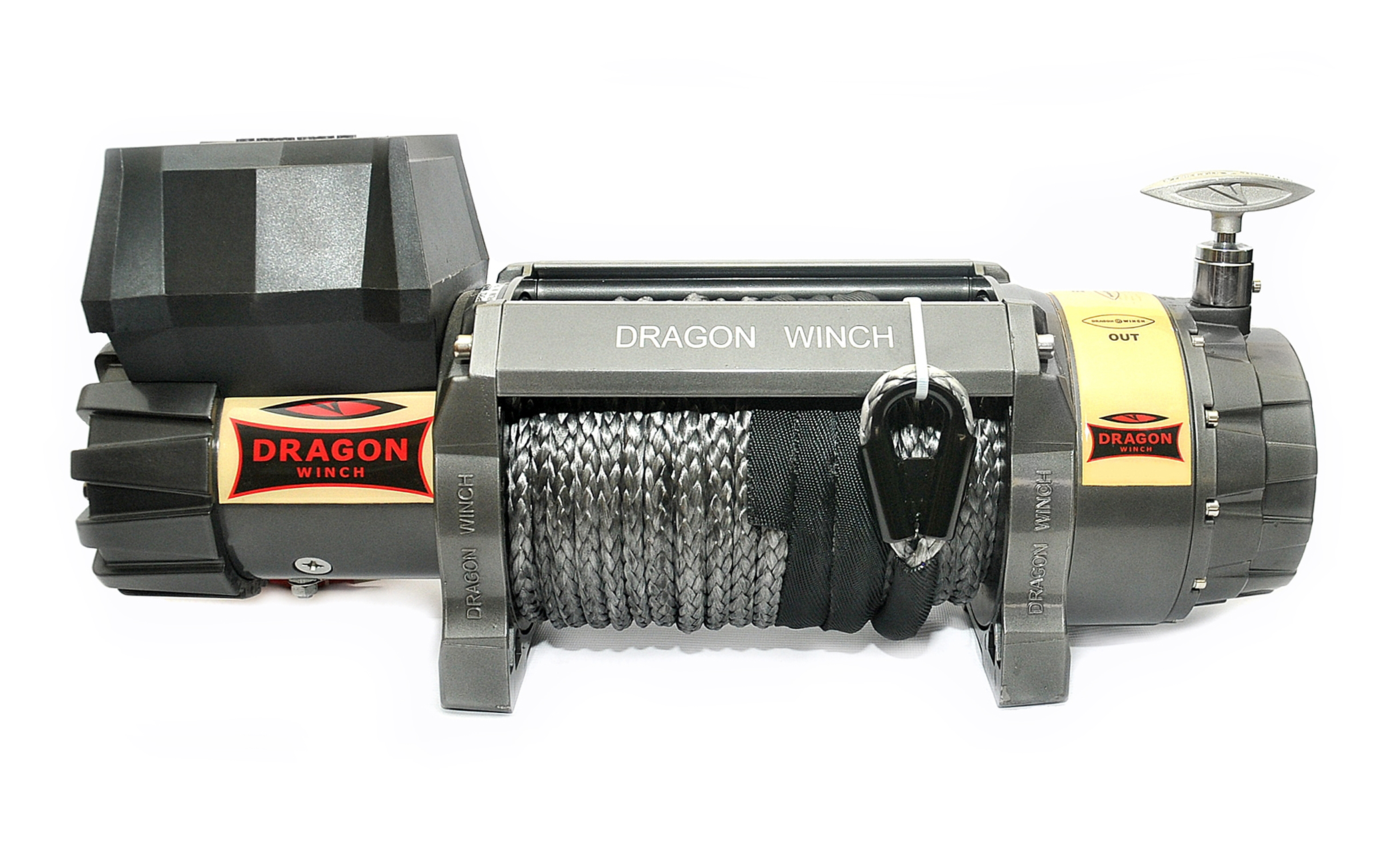

The Dragon Winch Highlander 9000 HD is recommended for Off-Road & 4x4s. Durable and tough due to superior materials and construction methods, the Highlander 9000 HD provides a robust and reliable winching solution in all weather conditions and environments. It is capable of pulling up to 9,000 lb (4,082 kg / 4.1 t). The Highlander 9000 HD comes with a 26m of 10mm Synthetic Rope with Clevis Hook fed through an Aluminium Fairlead, which are all included. The winch is controlled with a Wired & Wireless Controller. The Highlander 9000 HD comes in a 12v option only. The winch comes with a two-year return-to-base warranty.

Key Features

Pulling Rate9000lbs (4082kg)Weight40kgBraking SystemDynamic
Rope Length26m of 10mm Synthetic RopeDimensions (w/d/h)590mm x 166mm x 270mmTransmission/Gear System3 Stage Planetary
Horsepower9hpMounting Screw Spacing254mm x 114mmGear/Speed Reduction Ratio136:1
Power SupplyElectrical
Voltage12v
ControlRemote Control & Wireless Remote Control

Control Options

Wired Remote Control

Built to tough Dragon Winch standards, a wired control gives a simple and totally reliable solution for controlling your winch in extreme conditions.

Wireless Remote Control

Compact, simple and remote to the winch itself, a wireless control option gives the operator greater ability to focus on the vehicle being towed without being restricted by cables.

Additional Information

Rope Winding Speed & Power Consumption
Rope Load (kg)0181227184082
Rope Speed (m/min)20974.5
Power Consumption (amp)58220280360
Pulling Force Depending On Rope Layer
Rope Layer1234
Rope Pull (kg)4082328727042313
Rope Length On The Drum (m)6132228

Comparison

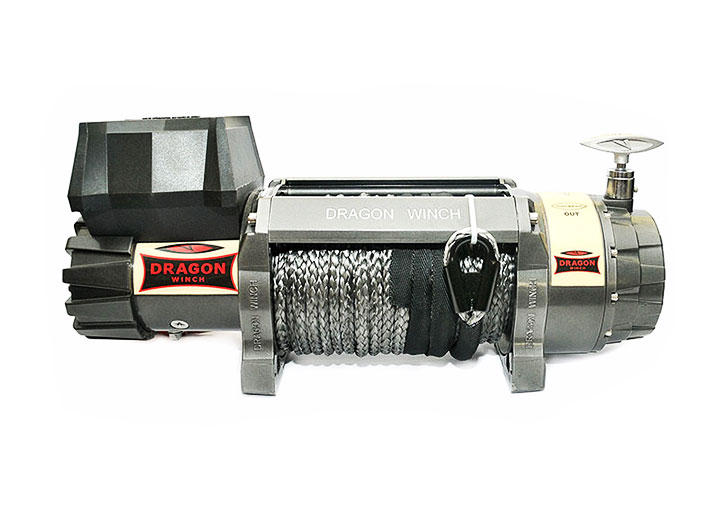

Highlander 9000 HD SHighlander 12000 HD S
Pulling Rate9000lbs (4082kg)12000lbs (5443kg)
Horsepower9hp9hp
Dimensions590mm x 166mm x 270mm575mm x 166mm x 270mm
Voltage Options12v12v
Rope TypeSyntheticSynthetic
Rope Length30m30m
Gear Reduction Ratio136:1273:1
Drum Size (Diameter/Length)63.5mm x 244mm63.5mm x 244mm
Feeding Cable Length1.83m1.83m
Guide BarFairleadFairlead
Price635.95GBP
545.95GBP
