Maverick 3500 ST
Built for Medium-Large ATVs

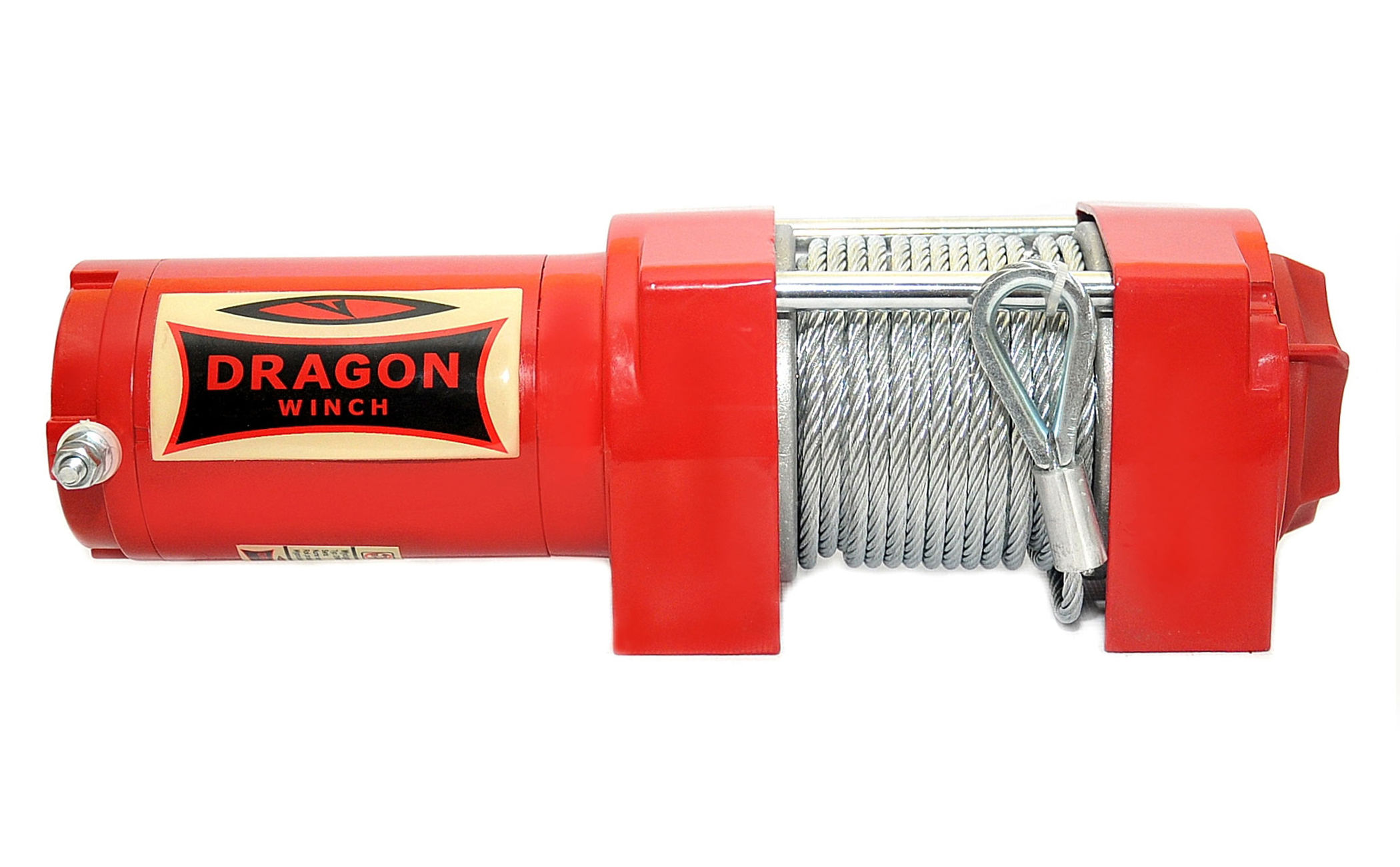

The Dragon Winch Maverick 3500 ST is recomended for ATVs, Quads and UTVs. Durable and tough due to superior materials and construction methods, the Maverick 3500 ST provides a robust and reliable winching solution in all weather conditions and environments. It is capable of pulling upto 3,500 lb (1,588 kg / 1.6 t). The Maverick 3500 ST comes with a 10m of 4.5mm Steel Cable with Clevis Hook fed through Roller Guides, which are all included. The winch is controlled with a Steering Wheel Switch & Wireless Remote Control. The Maverick 3500 ST comes in a 12v option only. The winch comes with a two-year return-to-base warranty.
Key Features
| Pulling Rate | 3500lbs (3629kg) | Weight | 10.5kg | Braking System | Selfbrake |
|---|---|---|---|---|---|
| Rope Length | 15m - 4mm | Dimensions (w/d/h) | 325mm x 105mm x 95mm | Gear/Speed Reduction Ratio | 153:1 |
| Horsepower | 1.2hp | Mounting Screw Spacing | 124mm x 76mm | ||
| Power Supply | Electrical (Battery) | ||||
| Voltage | 12v | ||||
| Control | Switch On Steering Wheel & Wireless Remote Control |
Pack Includes
15m of 4mm Steel Cable
Clevis Hook
Roller Guides
Mounting Screws
Mounting Plate
Power Cables
Control Switch
Wireless Controller
Wireless Controller Batteries
Marker Tab
Relay
Manual
Control Options
Switch On Steering Wheel
A simple and convenient switch that comes with everything you need to mount it in your vehicle.
Wireless Remote Control
Compact, simple and remote to the winch itself, a wireless control option gives the operator greater ability to focus on the vehicle being towed without being restricted by cables.
Additional Information
| Rope Winding Speed & Power Consumption | |||
|---|---|---|---|
| Rope Load (kg) | 0 | 907 | 1588 |
| Rope Speed (m/min) | 4.7 | 3.5 | 1.8 |
| Power Consumption (amp) | 30 | 130 | 190 |
| Pulling Force Depending On Rope Layer | |||||
|---|---|---|---|---|---|
| Rope Layer | 1 | 2 | 3 | 4 | 5 |
| Rope Pull (kg) | 1588 | 1265 | 1052 | 900 | 786 |
| Rope Length On The Drum (m) | 1.9 | 4.2 | 6.8 | 9.7 | 15 |
Comparison
| Maverick 2000 ST | Maverick 2500 ST | Maverick 3500 ST | |
|---|---|---|---|
 |  |  | |
| Pulling Rate | 2000lbs (907kg) | 2500lbs (1133kg) | 3500lbs (1588kg) |
| Horsepower | 0.9hp | 0.9hp | 1.2hp |
| Dimensions | 285mm x 103mm x 105mm | 285mm x 103mm x 105mm | 325mm x 105mm x 95mm |
| Voltage Options | 12v | 12v | 12v |
| Rope Type | Wire | Wire | Wire |
| Rope Length | 10m | 10m | 15m |
| Gear Reduction Ratio | 153:1 | 153:1 | 153:1 |
| Price | 76.95GBP | 102.99GBP | 127.99GBP |
