Built for Large Off-Road vehicles

Buy now from our online store... View Product
0%

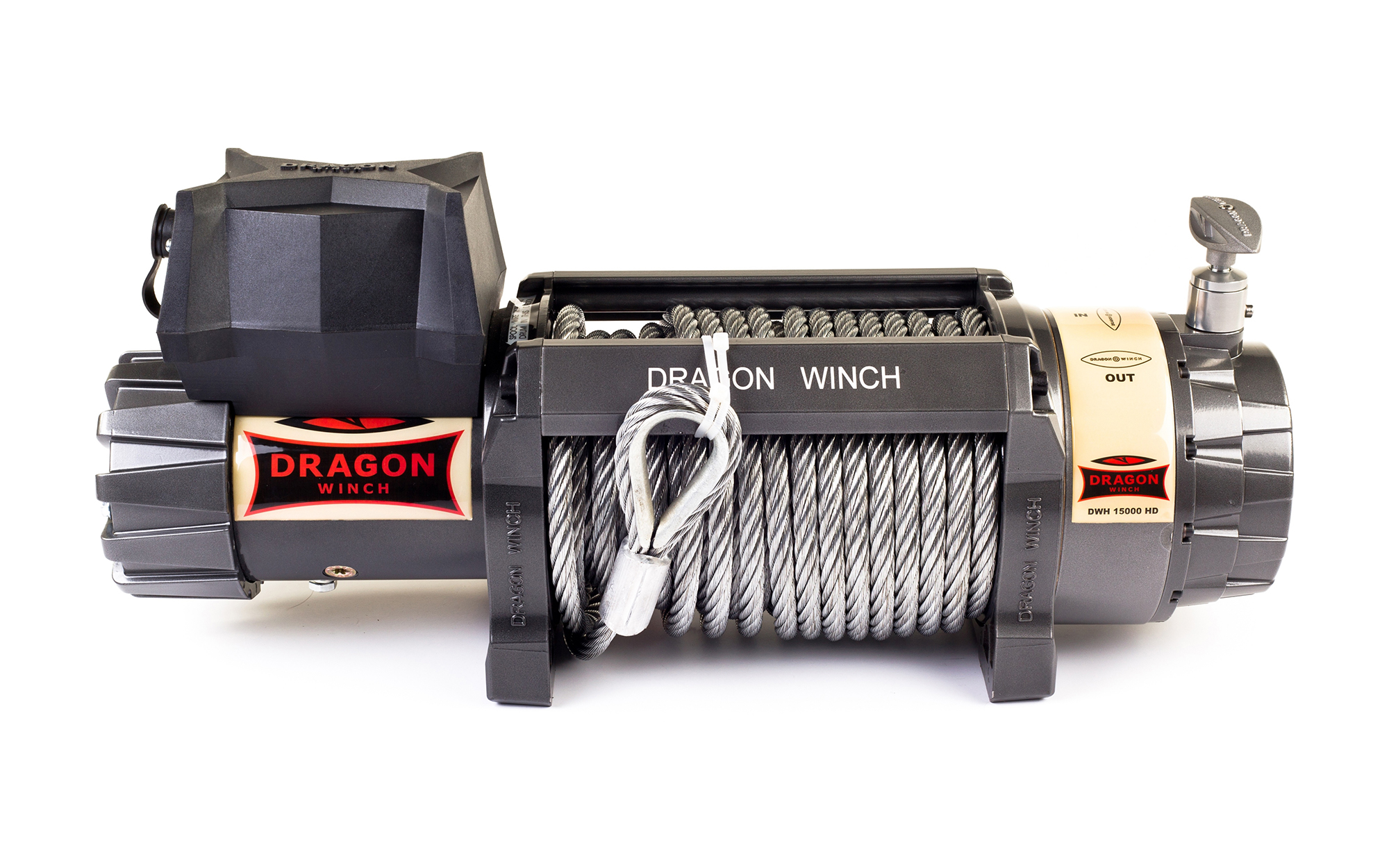

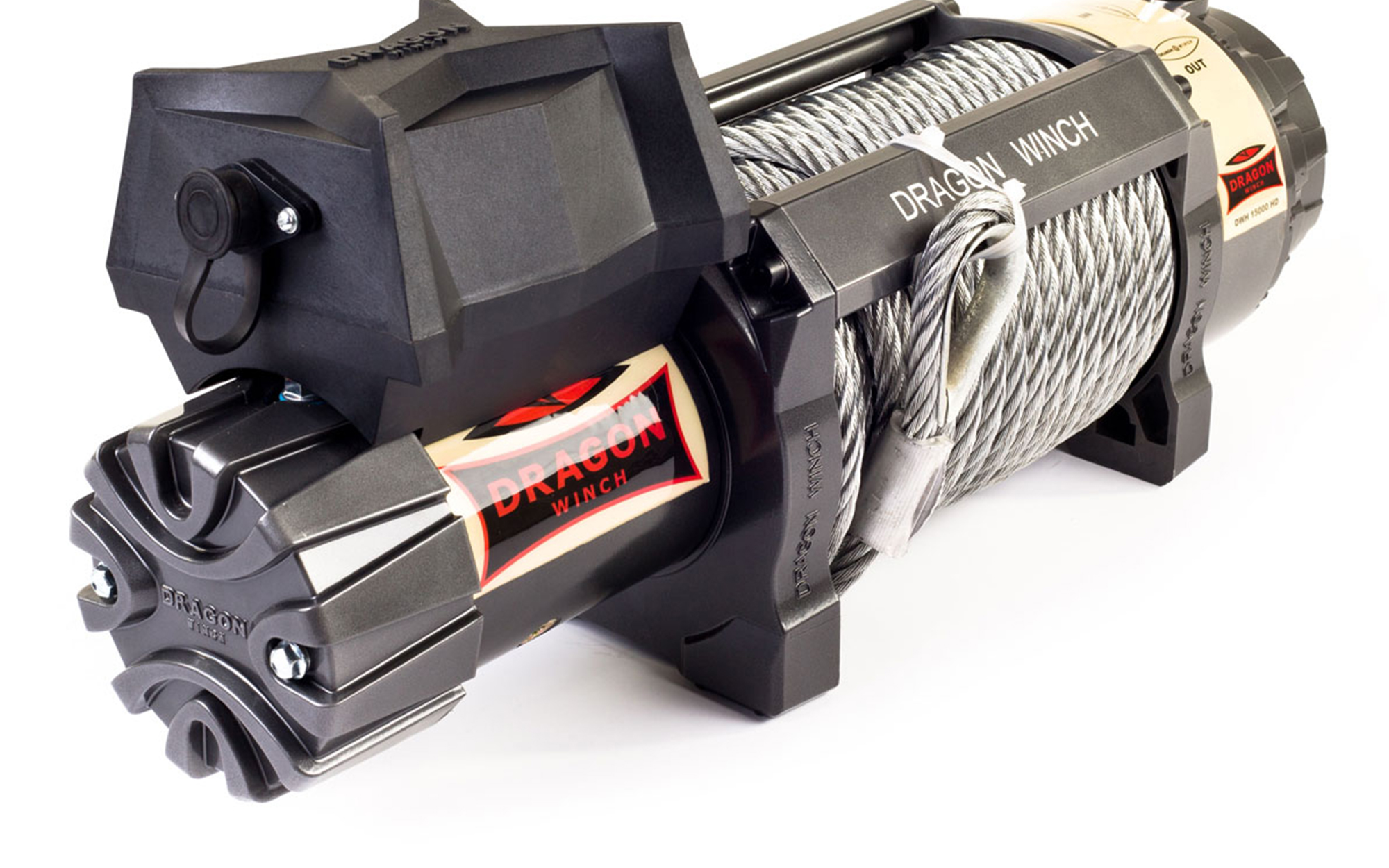

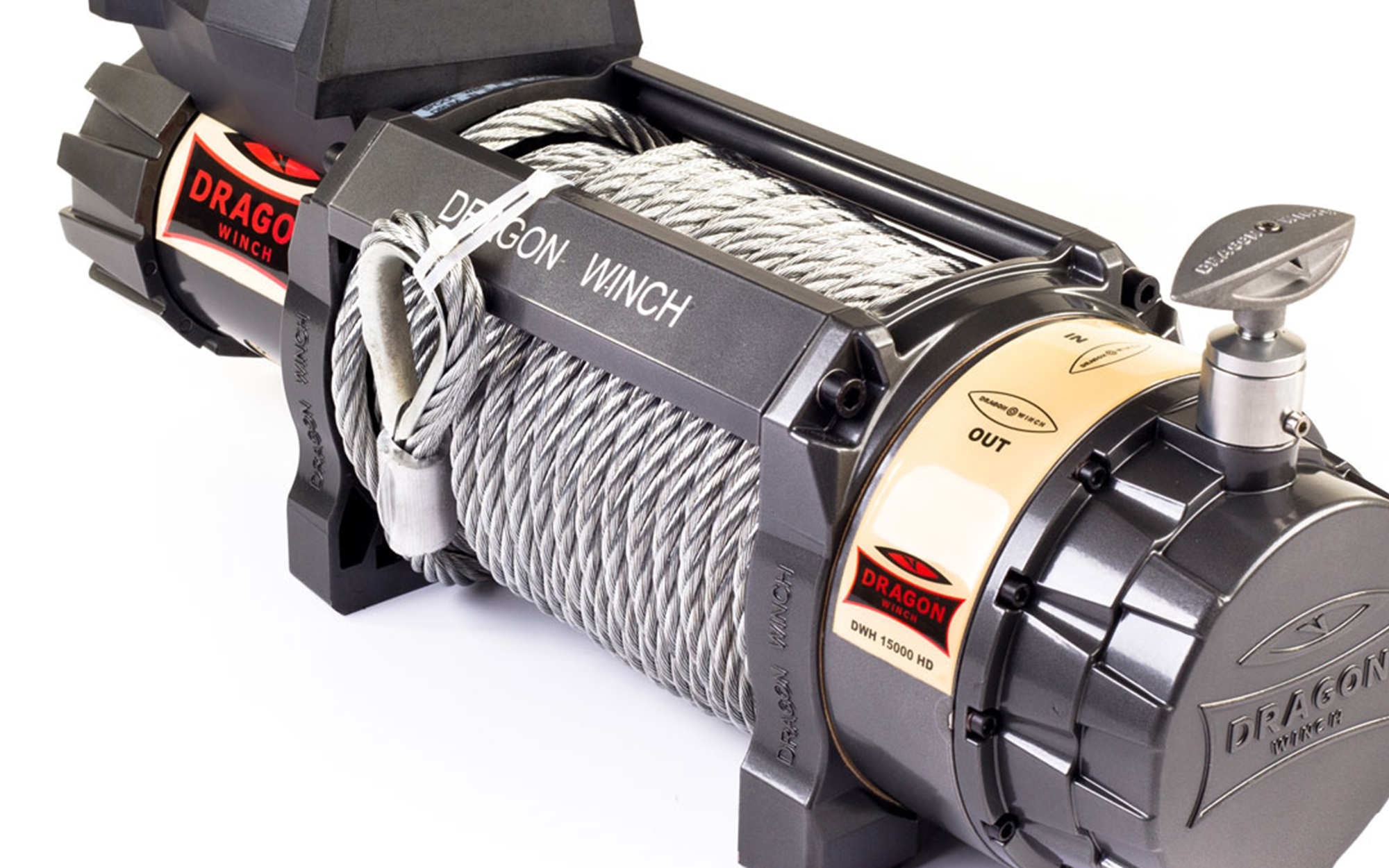

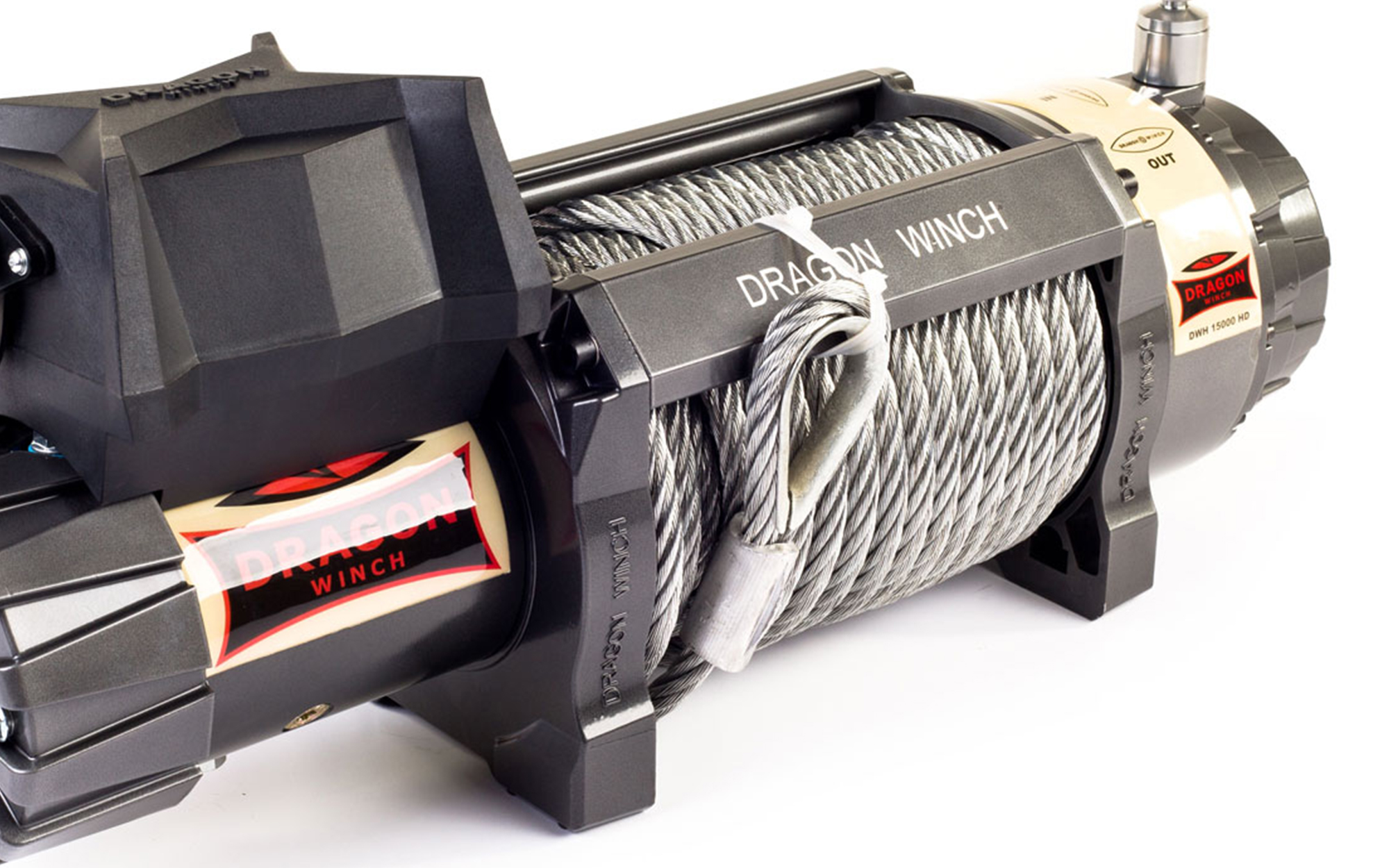

    The Dragon Winch Highlander 15000 HD is recommended for Off-Road & 4x4s. Durable and tough due to superior materials and construction methods, the Highlander 15000 HD provides a robust and reliable winching solution in all weather conditions and environments. It is capable of pulling up to 15,000 lb (6,804 kg / 6.8 t). The Highlander 15000 HD comes with a 28m of 11.8mm Steel Cable with Clevis Hook fed through Roller Guides, which are all included. The winch is controlled with a Wired & Wireless Controller. The Highlander 15000 HD comes in 12v and 24v options. The winch comes with a two-year return-to-base warranty.

    Key Features

    Pulling Rate15000lbs (6803kg)Weight53kgBraking SystemDynamic
    Rope Length28m of 11.8mm Steel CableDimensions (w/d/h)585mm x 170mm x 215mmTransmission/Gear System3 Stage Planetary
    Horsepower9hpMounting Screw Spacing254mm x 114mmGear/Speed Reduction Ratio274:1
    Power SupplyElectrical (Battery)
    Voltage12/24v
    ControlRemote Control & Wireless Remote Control

    Control Options

    Wired Remote Control

    Built to tough Dragon Winch standards, a wired control gives a simple and totally reliable solution for controlling your winch in extreme conditions.

    Wireless Remote Control

    Compact, simple and remote to the winch itself, a wireless control option gives the operator greater ability to focus on the vehicle being towed without being restricted by cables.

    Additional Information

    Rope Winding Speed & Power Consumption
    Rope Load (kg)0453254436803
    Rope Speed (m/min)7.54.13.52.8
    Power Consumption (amp)70310450585
    Pulling Force Depending On Rope Layer
    Rope Layer1234
    Rope Pull (kg)6803615751654449
    Rope Length On The Drum (m)511.51928

    Comparison

    Highlander 15000 HDHighlander 12000 HD
    Pulling Rate15000lbs (6803kg)12000lbs (5443kg)
    Horsepower9hp9hp
    Dimensions585mm x 170mm x 215mm535mm x 160mm x 245mm
    Voltage Options12/24v12v
    Rope Type11.8mm Steel Cable10mm Steel Cable
    Rope Length28m28m
    Gear Reduction Ratio274:1273:1
    Price675.95GBP
    485.95GBP
