Built for Medium-Large Off-Road vehicles

Buy now from our online store... View Product

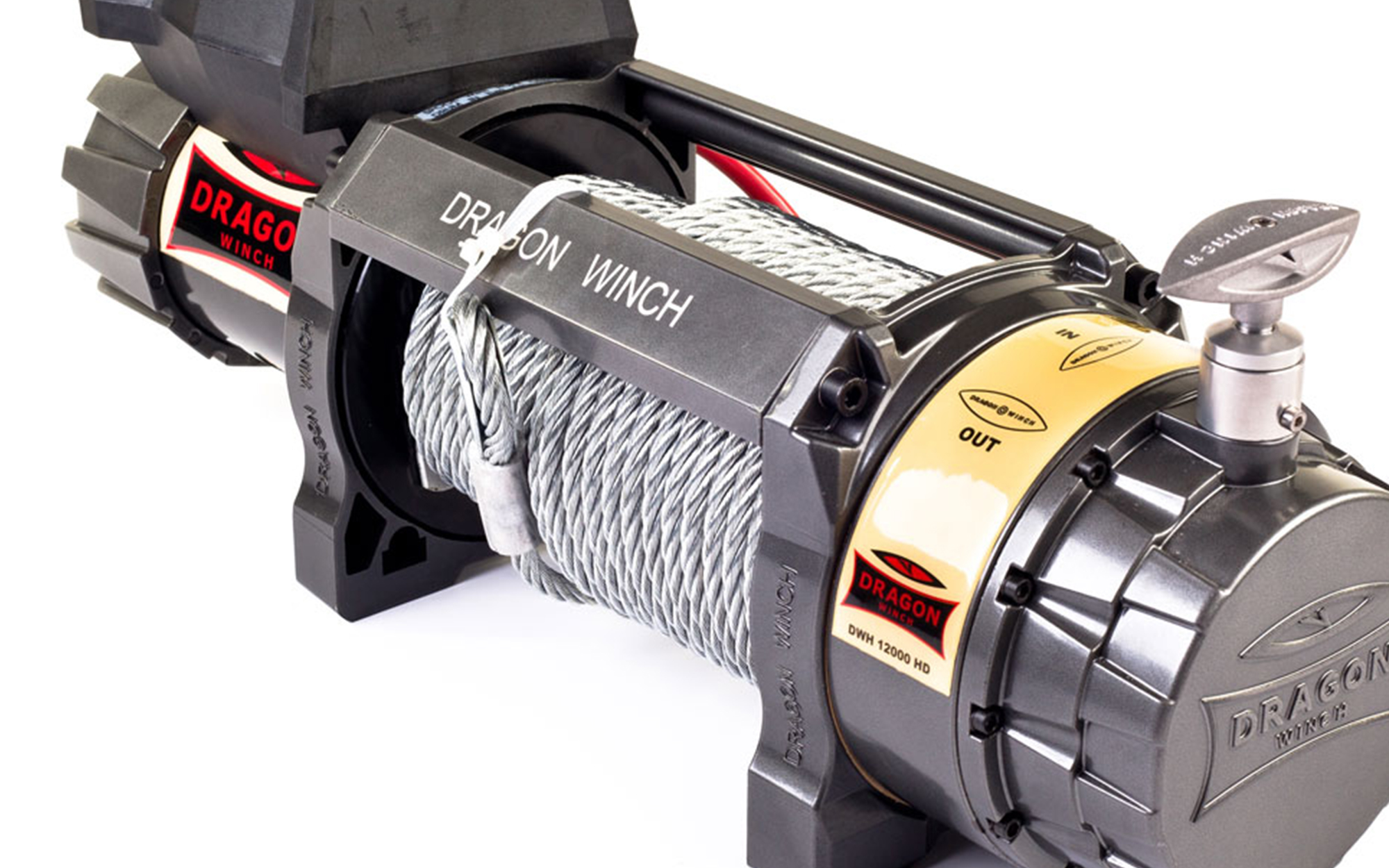

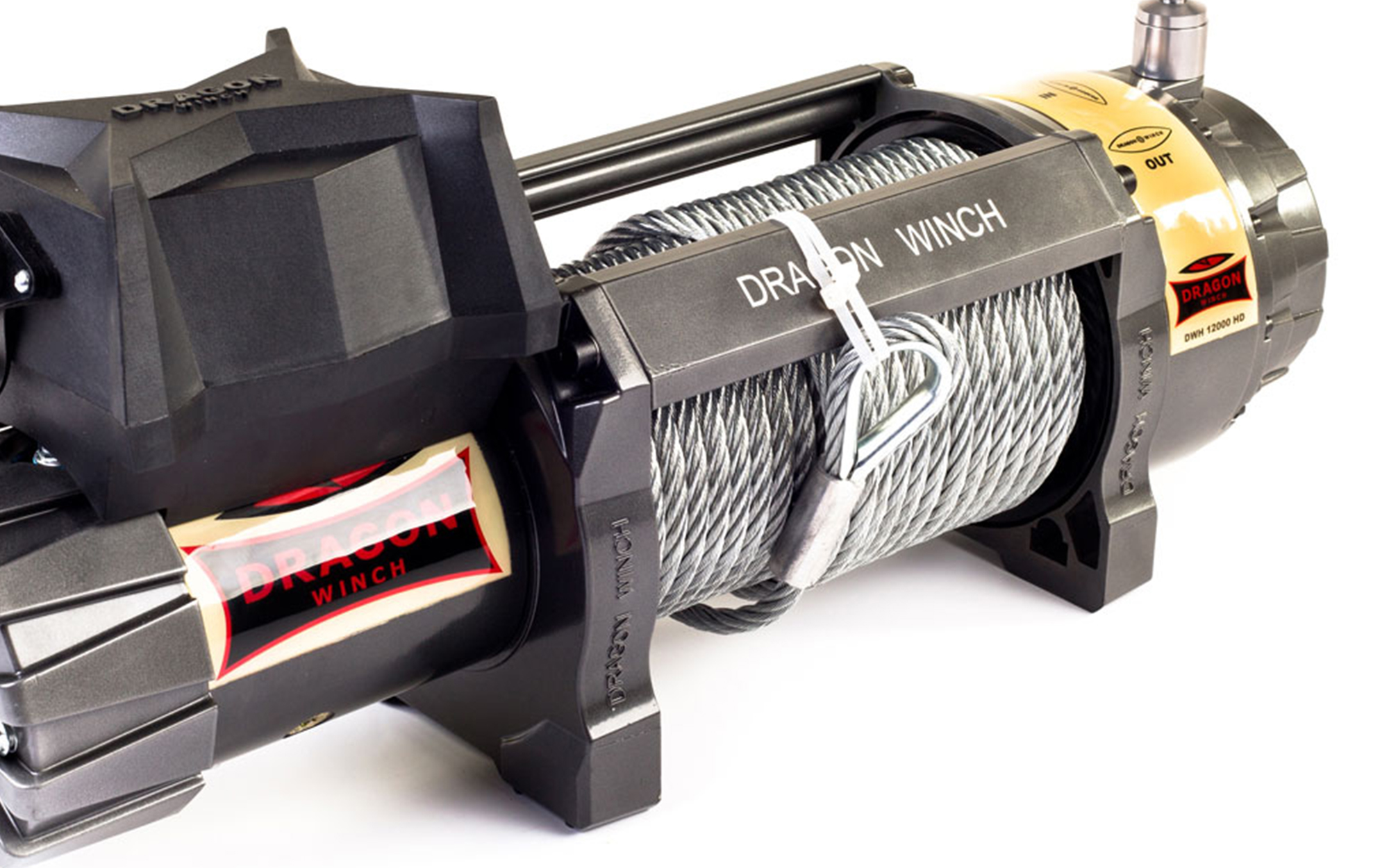

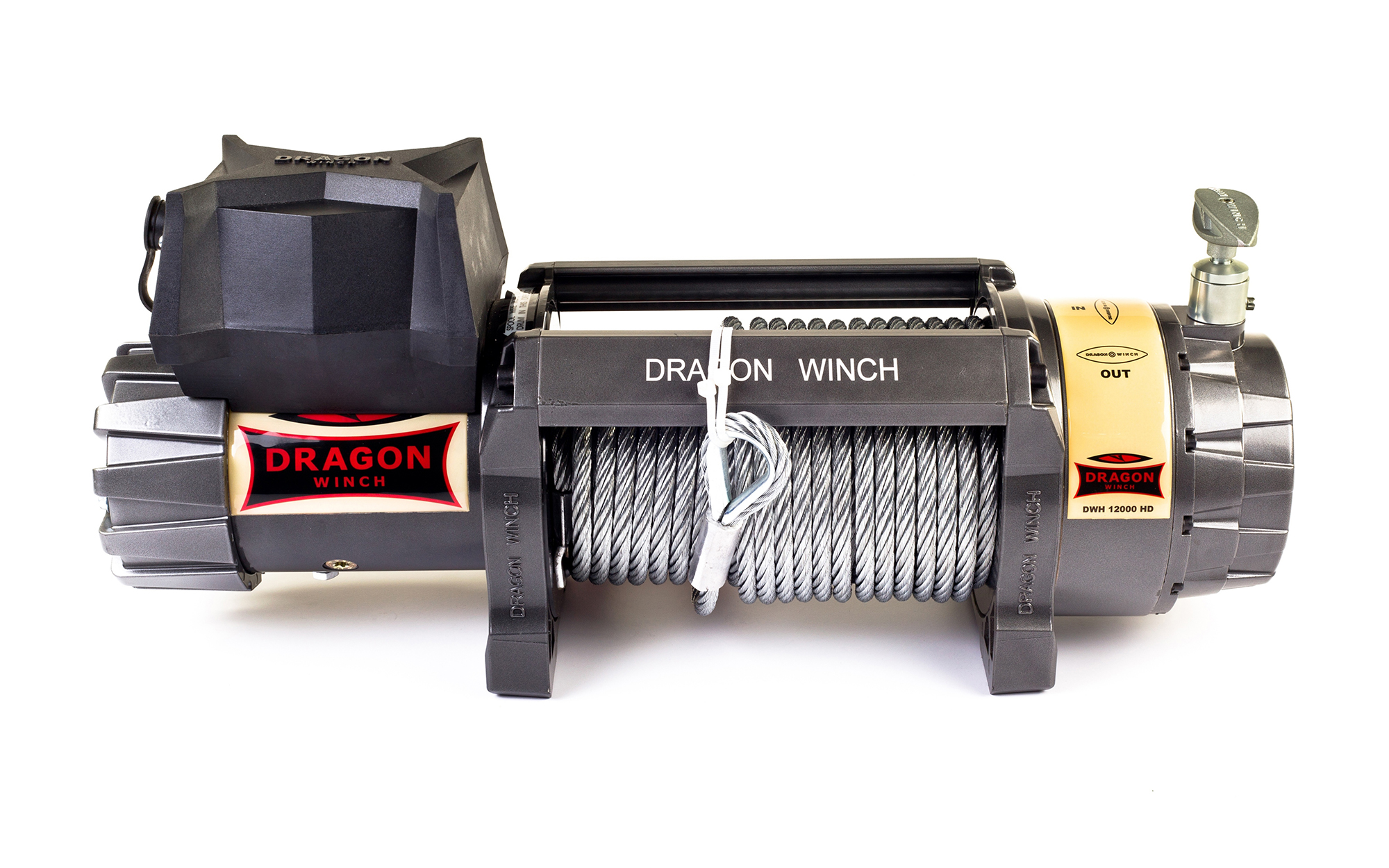

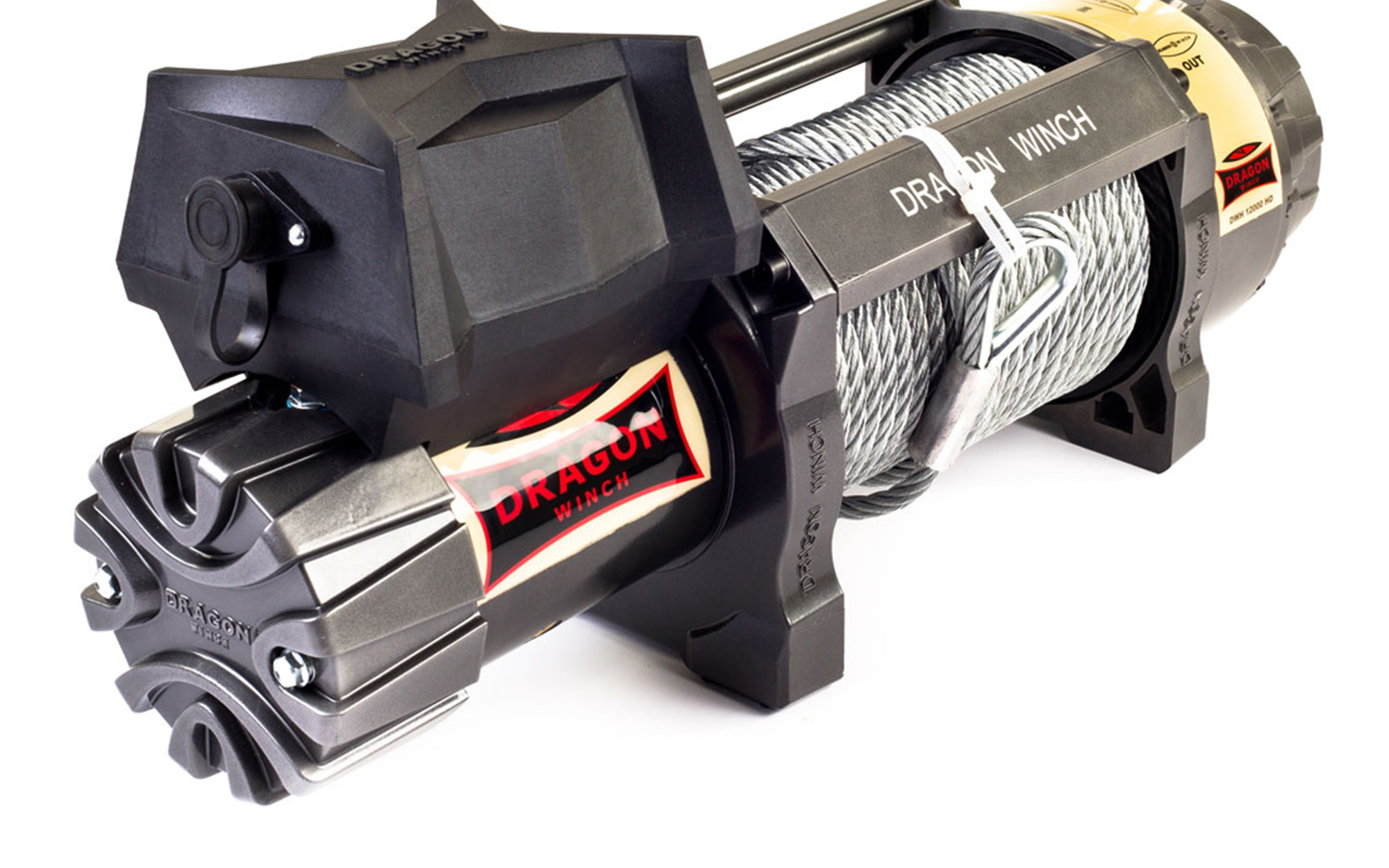

    The Dragon Winch Highlander 12000 HD is recommended for Off-Road & 4x4s. Durable and tough due to superior materials and construction methods, the Highlander 12000 HD provides a robust and reliable winching solution in all weather conditions and environments. It is capable of pulling up to 12,000 lb (5,443 kg / 5.4 t). The Highlander 12000 HD comes with a 28m of 10mm Steel Cable with Clevis Hook fed through Roller Guides, which are all included. The winch is controlled with a Wired & Wireless Controller. The Highlander 12000 HD comes in 12v and 24v options. The winch comes with a two-year return-to-base warranty.

    Key Features

    Pulling Rate12000lbs (5443kg)Weight48kgBraking SystemDynamic
    Rope Length28m of 10mm Steel CableDimensions (w/d/h)535mm x 160mm x 245mmTransmission/Gear System3 Stage Planetary
    Horsepower9hpMounting Screw Spacing254mm x 114mmGear/Speed Reduction Ratio273:1
    Power SupplyElectrical (Battery)Drum Size63.5mm x 244mmGuide Bar4 Roll/Slide
    Voltage12/24vFeeding Cable1.83m
    ControlRemote Control & Wireless Remote Control

    Control Options

    Wired Remote Control

    Built to tough Dragon Winch standards, a wired control gives a simple and totally reliable solution for controlling your winch in extreme conditions.

    Wireless Remote Control

    Compact, simple and remote to the winch itself, a wireless control option gives the operator greater ability to focus on the vehicle being towed without being restricted by cables.

    Additional Information

    Rope Winding Speed & Power Consumption
    Rope Load (kg)091045325443
    Rope Speed (m/min)852.52
    Power Consumption (amp)65130280350
    Pulling Force Depending On Rope Layer
    Rope Layer1234
    Rope Pull (kg)5443438336053084
    Rope Length On The Drum (m)4.8122128


    Highlander 9000 HDHighlander 12000 HD
    Pulling Rate9000lbs (4082kg)12000lbs (5443kg)
    Dimensions590mm x 166mm x 270mm575mm x 166mm x 270mm
    Voltage Options12v12/24v
    Rope TypeWireWire
    Rope Length28m of 7.8mm Steel Cable28m of 10mm Steel Cable
    Gear Reduction Ratio136:1273:1
    Drum Size (Diameter/Length)63.5mm x 244mm63.5mm x 244mm
    Feeding Cable Length1.83m1.83m
    Guide Bar4 Roll/Slide4 Roll/Slide
