Built for Medium-Large Off-Road and Industrial vehicles.

Buy now from our online store... View Product

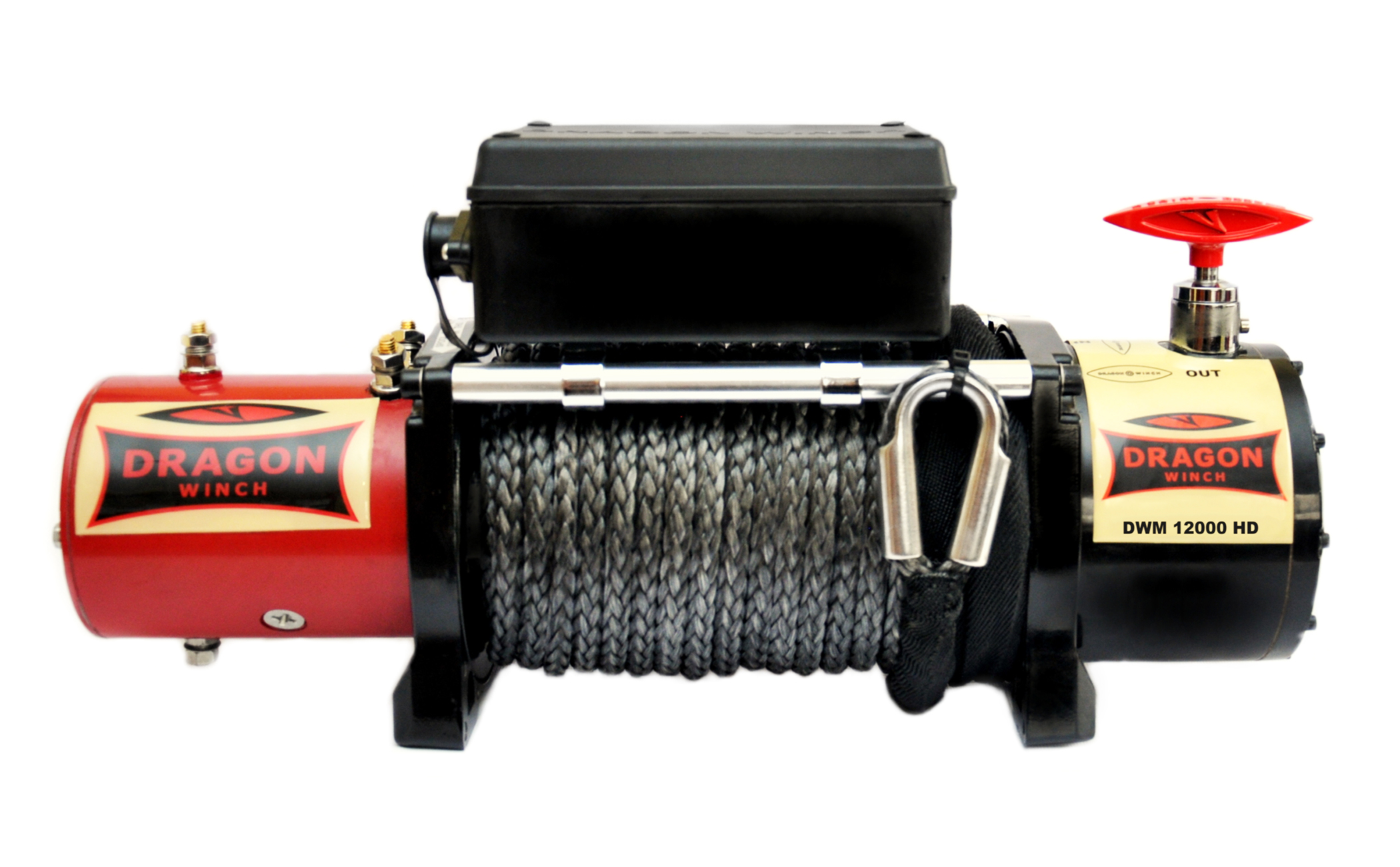

The Dragon Winch Maverick 12000 HD is recommended for Recovery Vehicles, Off-Road and 4x4s. Durable and tough due to superior materials and construction methods, the Maverick 12000 HD provides a robust and reliable winching solution in all weather conditions and environments. It is capable of pulling up to 12,000 lb (5,443 kg / 5.4 t). The Maverick 12000 HD comes with a 26m of 10mm Synthetic Rope with Clevis Hook fed through an Aluminium Fairlead, which are all included. The winch is controlled with a Wired & Wireless Controller. The Maverick 12000 HD comes in 12v and 24v options. The winch comes with a two-year return-to-base warranty.

Key Features

Pulling Rate12000lbs (5443kg)Weight42kgBraking SystemDynamic
Rope Length26mDimensions (w/d/h)535mm x 160mm x 245mmTransmission/Gear System3 Stage Planetary
Horsepower6.8hpMounting Screw Spacing254mm x 114mmGear/Speed Reduction Ratio265:1
Power SupplyElectricalDrum Size63.5mm x 244mmGuide Bar4 Roll/Slide
Voltage12/24vFeeding Cable1.83m
ControlRemote Control & Wireless Remote Control

Control Options

Wired Remote Control

Built to tough Dragon Winch standards, a wired control gives a simple and totally reliable solution for controlling your winch in extreme conditions.

Wireless Remote Control

Compact, simple and remote to the winch itself, a wireless control option gives the operator greater ability to focus on the vehicle being towed without being restricted by cables.

Additional Information

Rope Winding Speed & Power Consumption
Rope Load (kg)091018145443
Rope Speed (m/min)6.53.52.81.3
Power Consumption (amp)65126175400
Pulling Force Depending On Rope Layer
Rope Layer1234
Rope Pull (kg)5443438336053084
Rope Length On The Drum (m)4.8122128

Comparison

Maverick 10000 HD SMaverick 12000 HD SMaverick 12000 HDI S
Pulling Rate10000lbs (4536kg)12000lbs (5443kg)12000lbs (5443kg)
Horsepower6.8hp6.8hp6.8hp
Dimensions535mm x 160mm x 245mm535mm x 160mm x 245mm535mm x 160mm x 255mm
Voltage Options12v12/24v12v
Rope TypeSyntheticSyntheticSynthetic
Rope Length26m26m26m
Gear Reduction Ratio216:1265:1265:1
Drum Size (Diameter/Length)63.5mm x 244mm63.5mm x 244mm64mm x 224mm
Feeding Cable Length1.83m1.83m1.83m
Guide BarFairleadFairleadFairlead
Price455.95GBP
405.95GBP
652.99GBP
