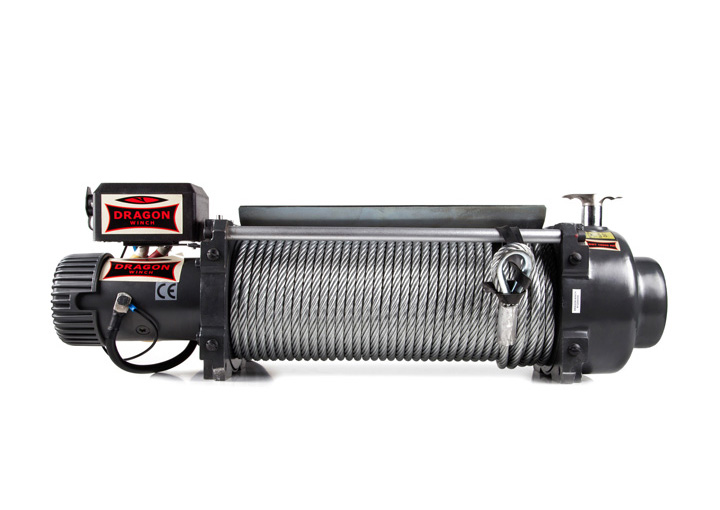

Truck 15000 HDL
Built for Large Off-Road & Industrial vehicles
0%
The Dragon Winch Truck 15000 HDL is ideally suited for large off-road and industrial vehicles and is capable of pulling up to 15000lbs (6804kg). Engineered to be super-strong and highly durable the Truck 15000 HDL is designed to operate in the harshest working conditions.
Key Features
| Pulling Rate | 15000lbs (6803kg) | Weight | 80kg | Braking System | Dynamic |
|---|---|---|---|---|---|
| Rope Length | 60m | Dimensions (w/d/h) | 815mm x 210mm x 260mm | Transmission/Gear System | 2 Stage Planetary & 1 Stage Cycloidal |
| Horsepower | 9hp | Mounting Screw Spacing | 454mm x 114mm | Gear/Speed Reduction Ratio | 358:1 |
| Power Supply | Electrical (Battery) | ||||
| Voltage | 12/24v | ||||
| Control | Remote Control & Wireless Remote Control |
Pack Includes
Steel Cable
Clevis Hook
Control Box
Roller Guides
Mounting Screws
Wired Controller
Wireless Controller
Wireless Controller Batteries
Power Cables
Manual
Control Options
Wired Remote Control
Built to tough Dragon Winch standards, a wired control gives a simple and totally reliable solution for controlling your winch in extreme conditions.
Wireless Remote Control
Compact, simple and remote to the winch itself, a wireless control option gives the operator greater ability to focus on the vehicle being towed without being restricted by cables.
Additional Information
| Rope Winding Speed & Power Consumption | ||||
|---|---|---|---|---|
| Rope Load (kg) | 0 | 3626 | 4535 | 6803 |
| Rope Speed (m/min) | 4.8 | 1.7 | 1.4 | 1 |
| Power Consumption (amp) | 70 | 310 | 190 | 260 |
| Pulling Force Depending On Rope Layer | ||||
|---|---|---|---|---|
| Rope Layer | 1 | 2 | 3 | 4 |
| Rope Pull (kg) | 6803 | 5113 | 4581 | 3955 |
| Rope Length On The Drum (m) | 12 | 26 | 42 | 60 |
Comparison

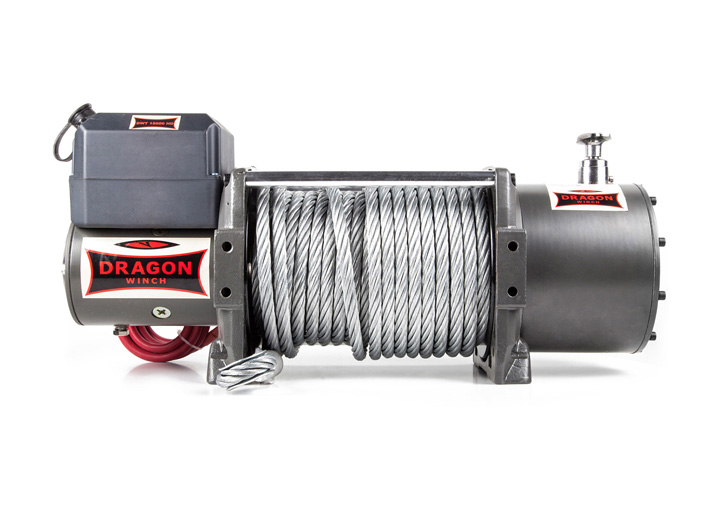

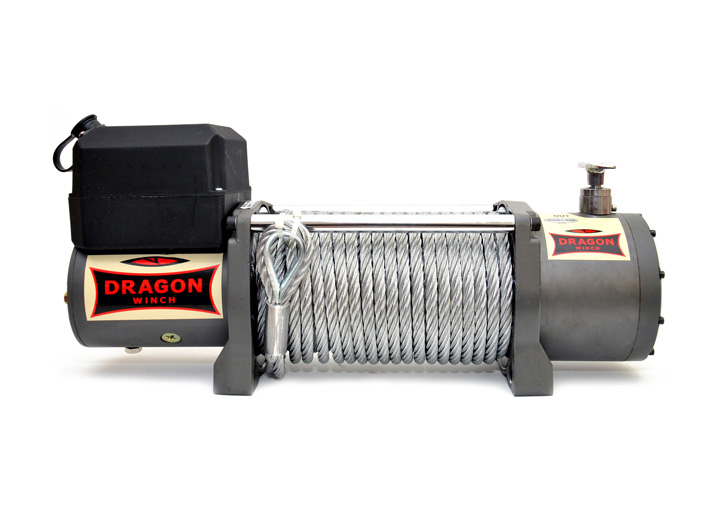

| Truck 14000 HD | Truck 15000 HD | Truck 15000 HDL | |
|---|---|---|---|
 |  |  | |
| Pulling Rate | 14000lbs (6350kg) | 15000lbs (6803kg) | 15000lbs (6803kg) |
| Horsepower | 7.8hp | 7.8hp | 9hp |
| Dimensions | 535mm x 160mm x 235mm | 560mm x 195mm x 250mm | 815mm x 210mm x 260mm |
| Voltage Options | 12/24v | 12/24v | 12/24v |
| Rope Type | Wire | Wire | Wire |
| Rope Length | 28m | 31m | 60m |
| Gear Reduction Ratio | 265:1 | 358:1 | 358:1 |
| Price | 611.99GBP | 1,045.95GBP | 1,533.99GBP |
