Built for Industrial vehicles

Buy now from our online store... View Product
0%

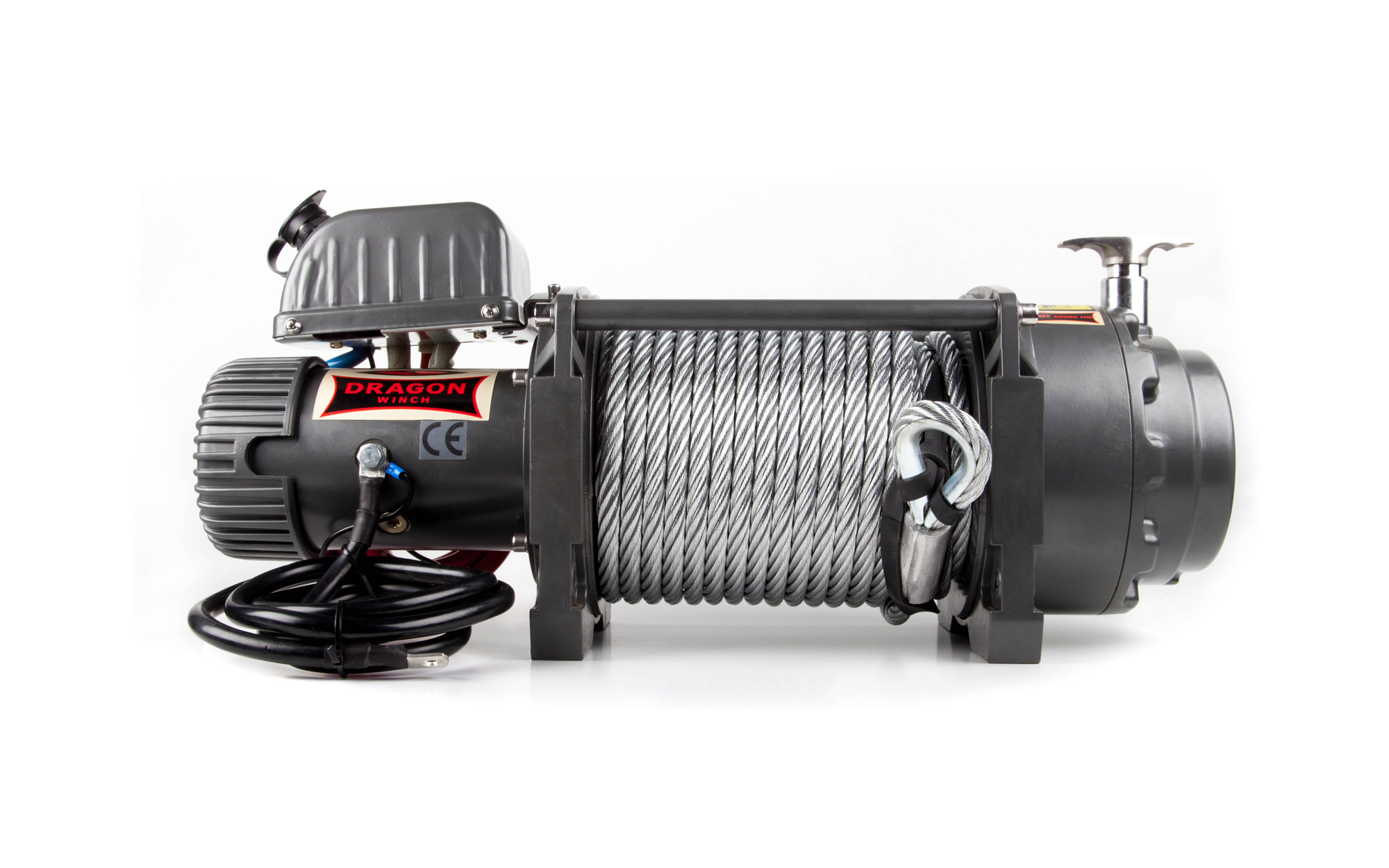

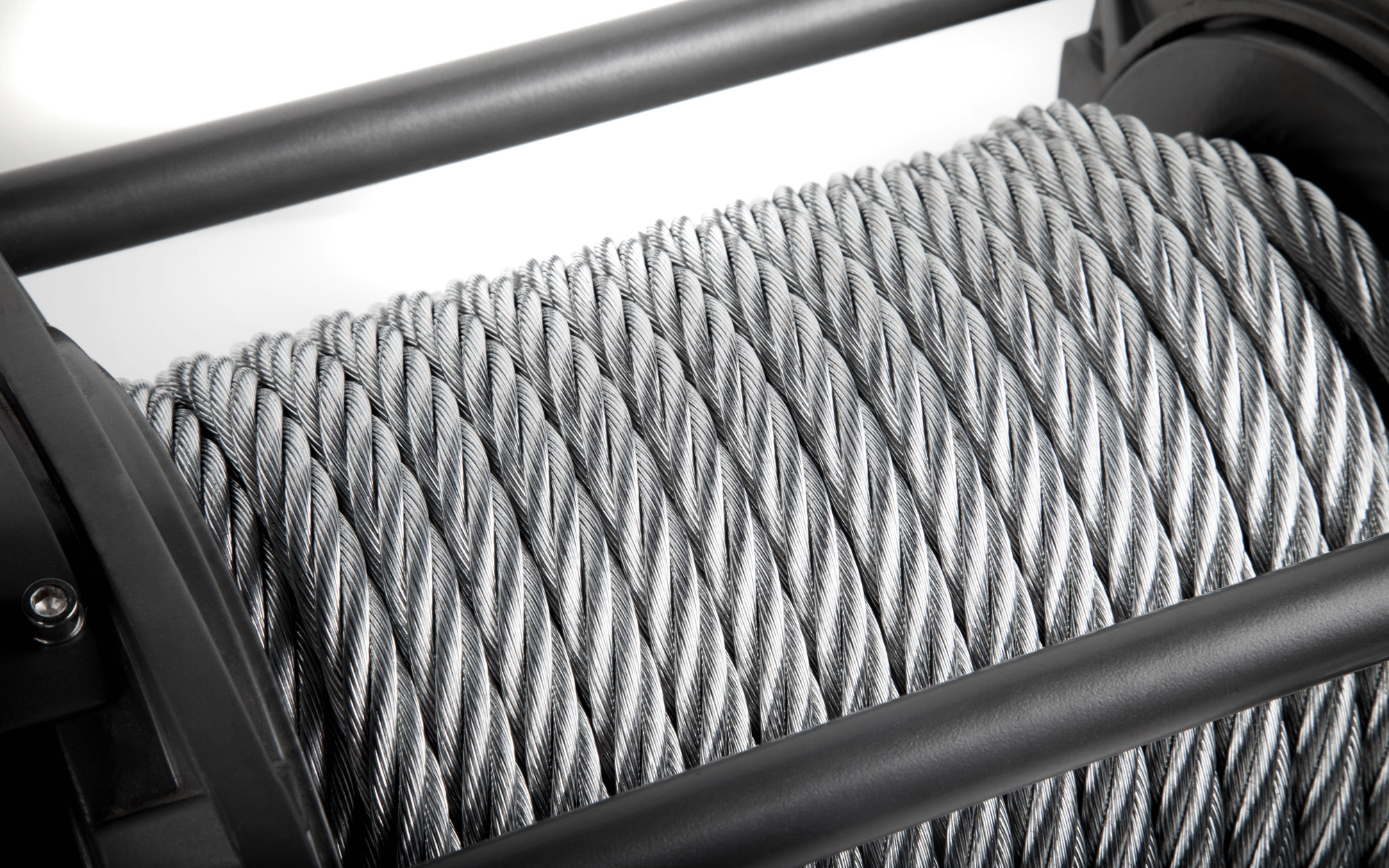

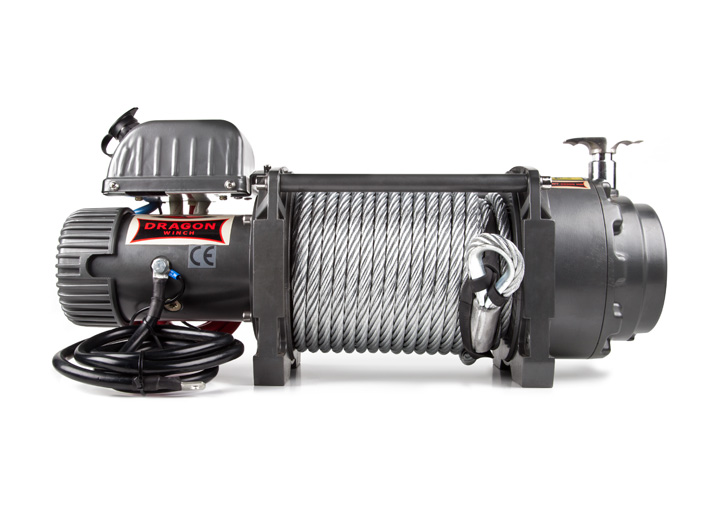

    The Dragon Winch Truck 20000 HD is recommended for Recovery Vehicles. Durable and tough due to superior materials and construction methods, the Truck 20000 HD provides a robust and reliable winching solution in all weather conditions and environments. It is capable of pulling up to 20,000 lb (9,072 kg / 9.1 t). The Truck 20000 HD comes with a 28m of 12mm Steel Cable with Clevis Hook fed through Roller Guides, which are all included. The winch is controlled with a Wired & Wireless Controller. The Truck 20000 HD comes in 24v option only. The winch comes with a two-year return-to-base warranty.

    Key Features

    Pulling Rate20000lbs (9072kg)Weight67kgBraking SystemThree-Rows Disc Brake
    Rope Length28mDimensions (w/d/h)615mm x 215mm x 275mmTransmission/Gear System3 Stage Planetary
    Horsepower9.0hpMounting Screw Spacing254mm x 114/165mmGear/Speed Reduction Ratio450:1
    Power SupplyElectrical (Battery)
    Voltage24v
    ControlRemote Control & Wireless Remote Control

    Control Options

    Wired Remote Control

    Built to tough Dragon Winch standards, a wired control gives a simple and totally reliable solution for controlling your winch in extreme conditions.

    Wireless Remote Control

    Compact, simple and remote to the winch itself, a wireless control option gives the operator greater ability to focus on the vehicle being towed without being restricted by cables.

    Additional Information

    Rope Winding Speed & Power Consumption
    Rope Load (kg)0453254439073
    Rope Speed (m/min)6.532.51.9
    Power Consumption (amp)60170190280
    Pulling Force Depending On Rope Layer
    Rope Layer1234
    Rope Pull (kg)9072733061495296
    Rope Length On The Drum (m)511.51928

    Comparison

    Truck 16800 HDTruck 18000 HDTruck 20000 HD
    Pulling Rate16800lbs (7620kg)18000lbs (8165kg)20000lbs (9072kg)
    Horsepower7.8hp7.8hp9hp
    Dimensions560mm x 195mm x 250mm580mm x 210mm x 260mm615mm x 215mm x 275mm
    Voltage Options12/24v24v24v
    Rope TypeWireWireWire
    Rope Length26m28m28m
    Gear Reduction Ratio358:1420:1450:1
