Highlander 3500 HD
Built for Medium-Large ATVs & UTVs

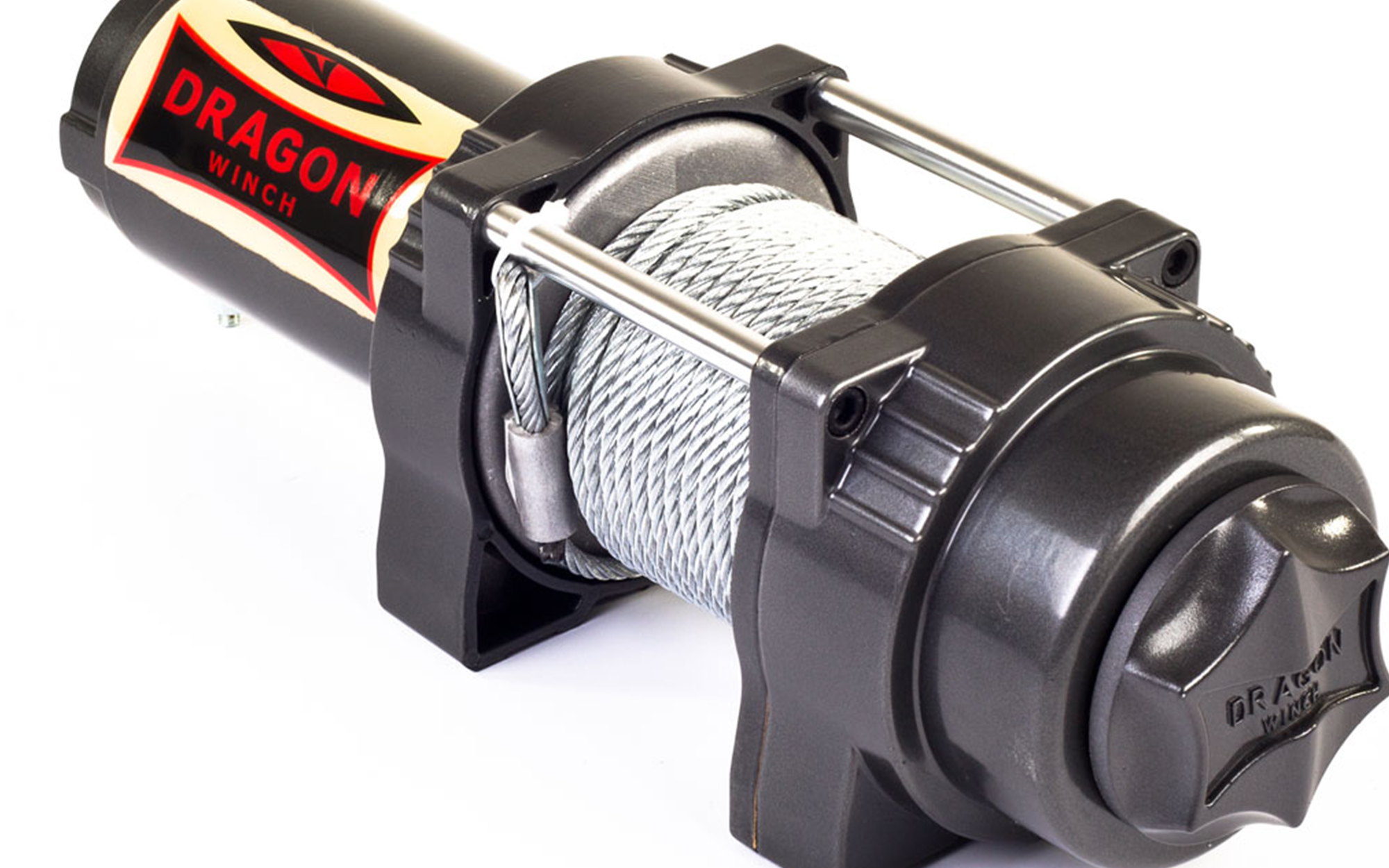

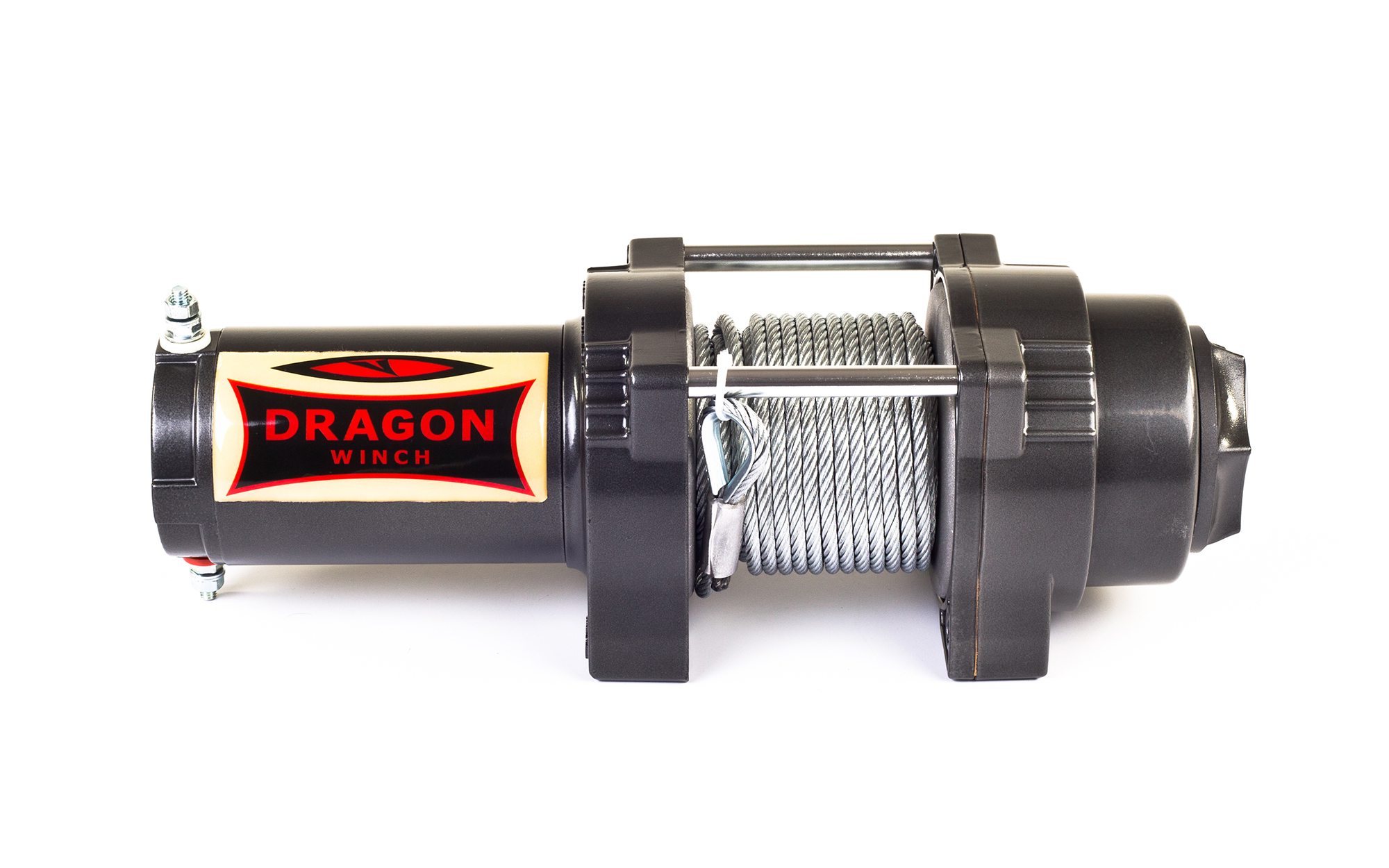

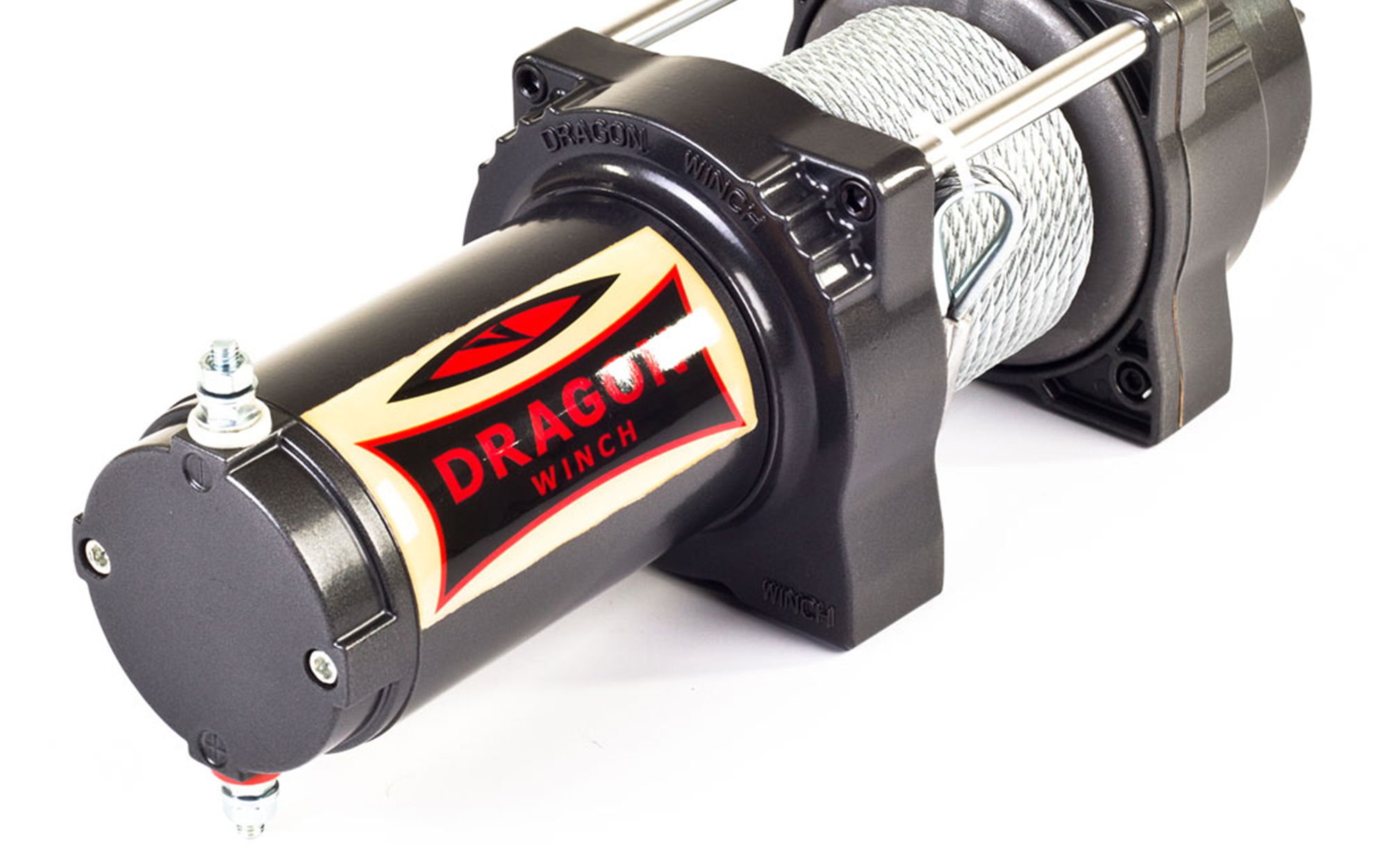

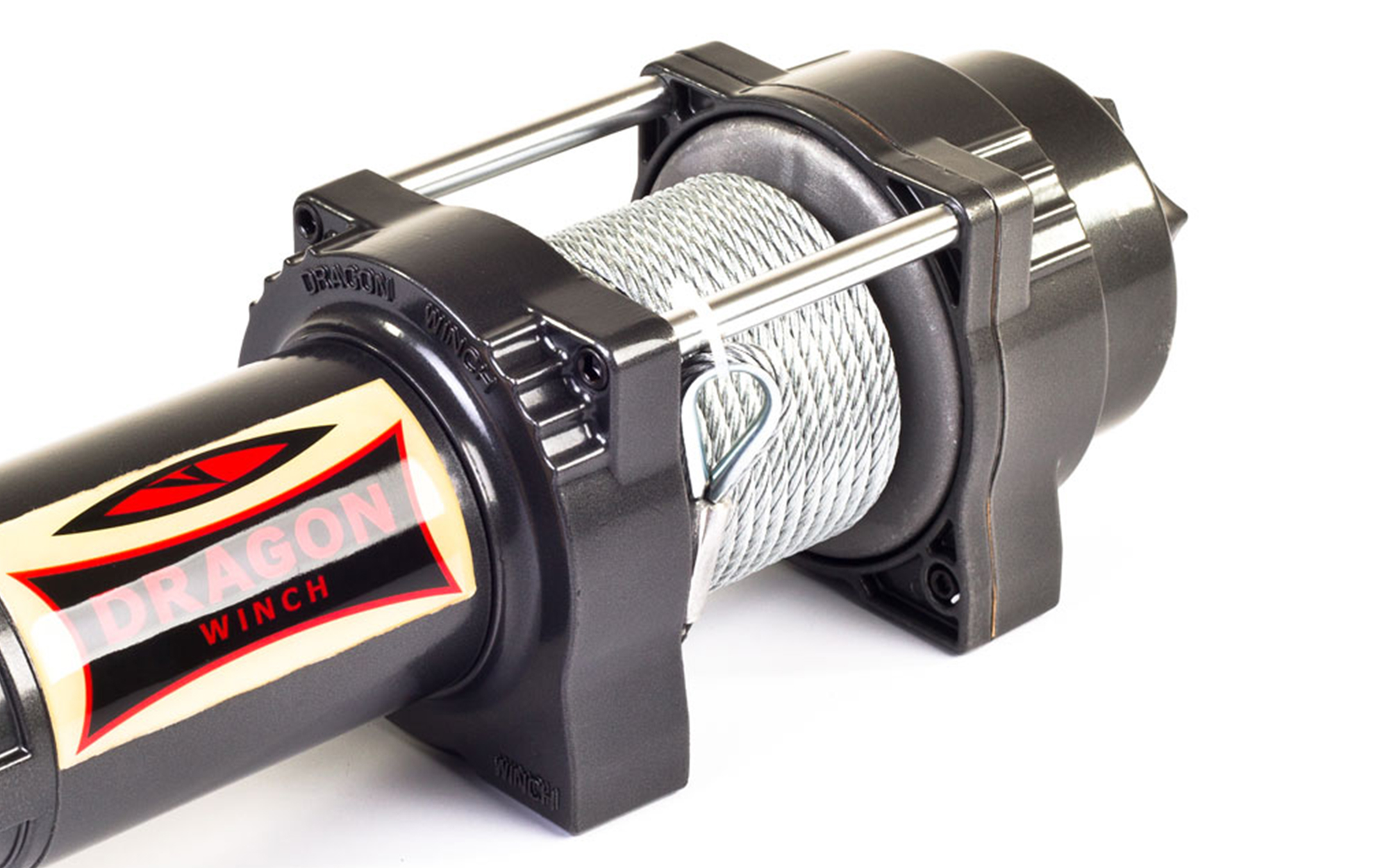

The Dragon Winch Highlander 3500 HD is suited for many different uses including ATVs & Quads and UTVs. Durable and tough due to superior materials and construction methods, the Highlander 3500 HD provides a robust and reliable winching solution in all weather conditions and environments. It is capable of pulling upto 3,500 lb / 1,588 kg / 1.6 t. The Highlander 3500 HD comes with a 15m Steel Cable with Clevis Hook fed through Roller Guides, which are all included. The winch is controlled with a Steering Wheel Switch & Wireless Remote Control. The Highlander 3500 HD comes in a 12v option only. The winch comes with a two-year return-to-base warranty.
Key Features
| Pulling Rate | 3500lbs (1588kg) | Weight | 11kg | Braking System | Automatic |
|---|---|---|---|---|---|
| Rope Length | 15m of 5mm Steel Cable | Dimensions (w/d/h) | 360mm x 114mm x 120mm | Transmission/Gear System | 3 Stage Planetary |
| Horsepower | 1.6hp | Mounting Screw Spacing | 124mm x 76mm | Gear/Speed Reduction Ratio | 136:1 |
| Power Supply | Electrical (Battery) | Guide Bar | 4 Roll | ||
| Voltage | 12v | ||||
| Control | Switch On Steering Wheel & Wireless Remote Control |
Pack Includes
Control Options
Switch On Steering Wheel
A simple and convenient switch that comes with everything you need to mount it in your vehicle.
Wireless Remote Control
Compact, simple and remote to the winch itself, a wireless control option gives the operator greater ability to focus on the vehicle being towed without being restricted by cables.
Additional Information
| Rope Winding Speed & Power Consumption | |||
|---|---|---|---|
| Rope Load (kg) | 0 | 907 | 1588 |
| Rope Speed (m/min) | 8.3 | 5.5 | 3 |
| Power Consumption (amp) | 25 | 107 | 150 |
| Pulling Force Depending On Rope Layer | |||||
|---|---|---|---|---|---|
| Rope Layer | 1 | 2 | 3 | 4 | 5 |
| Rope Pull (kg) | 1588 | 1300 | 1100 | 950 | 840 |
| Rope Length On The Drum (m) | 1.9 | 4.2 | 6.8 | 9.7 | 15 |
Comparison
| Highlander 3000 HD | Highlander 3500 HD | |
|---|---|---|
 |  | |
| Line Capacity | 3,000lbs (1,360kg) | 3,500lbs (1,588kg) |
| Horsepower | 1.6hp | 1.6hp |
| Dimensions | 347mm x 114mm x 120mm | 347mm x 114mm x 120mm |
| Voltage Options | 12v | 12v |
| Rope Type | 4.5mm Steel Cable | 5mm Steel Cable |
| Rope Length | 15m | 15m |
| Gear Reduction Ratio | 136:1 | 136:1 |
| Price | 189.99GBP | 215.95GBP |
