Industrial 400/800
Built for Industrial Workshop use
0%

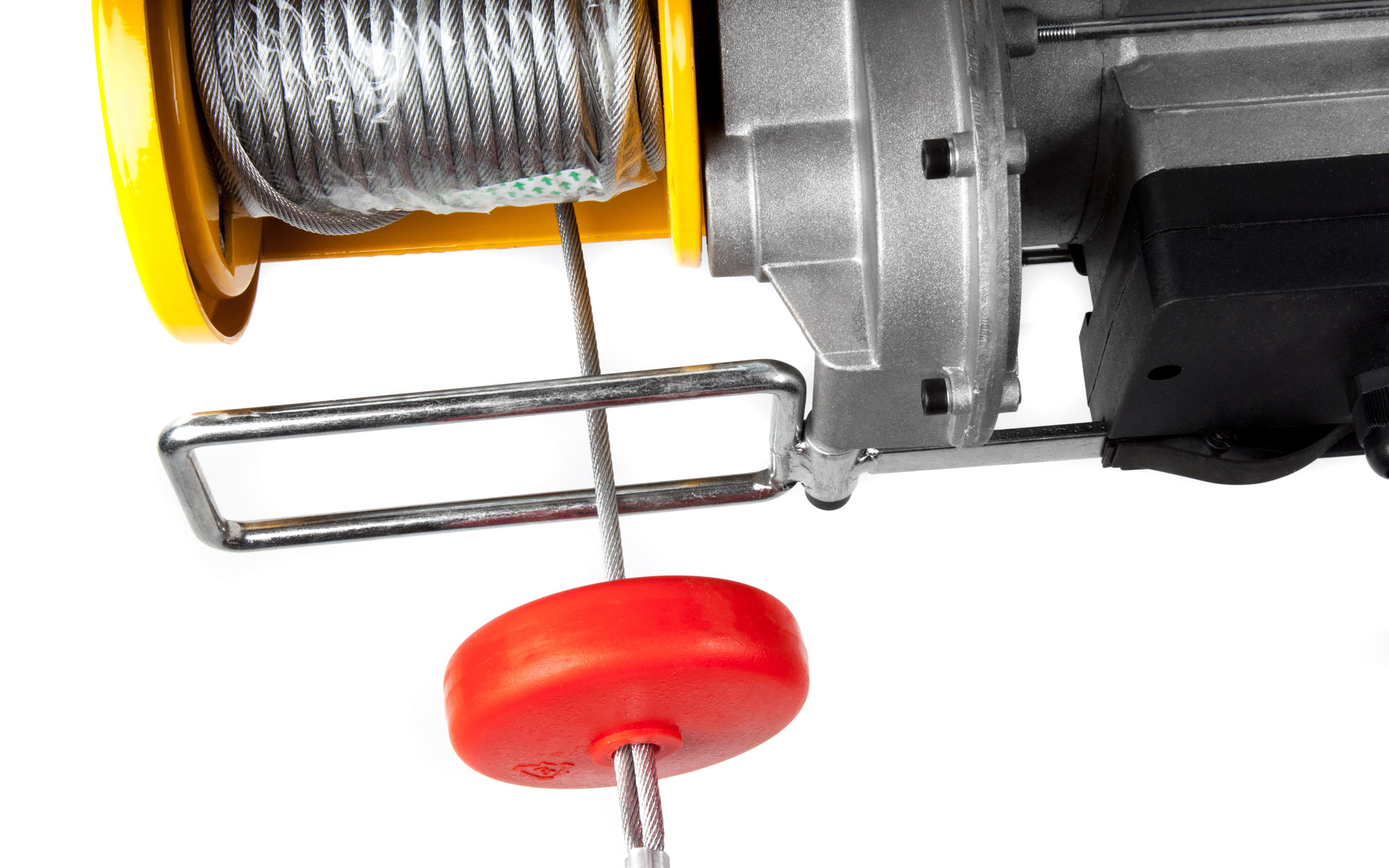

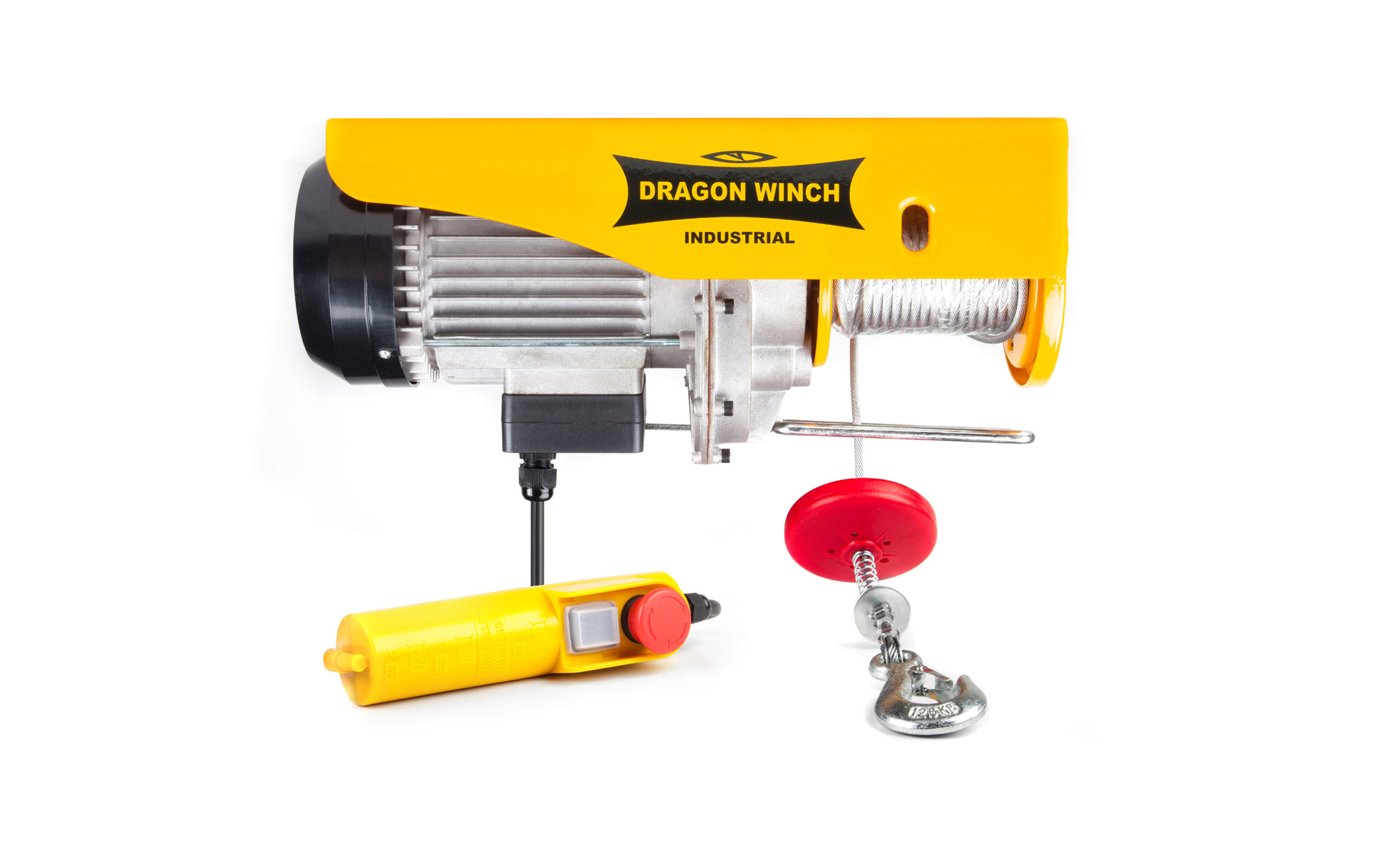

The Dragon Winch Hoist 400/800 is recommended for Workshops. Durable and tough due to superior materials and construction methods, the Hoist 400/800 provides a robust and reliable winching solution in all weather conditions and environments. It is capable of pulling from 400 lb (181 kg / 0.18 t) with a single rope and 800 lb (363 kg / 0.36 t) with a double rope. The Hoist 400/800 comes with a 12.5m of 5.5mm Steel Cable with Clevis Hook fed through an Aluminium Fairlead, which are all included. The winch is controlled with a Wired Hand Controller. The Hoist 400/800 comes in 230v option only. The winch comes with a two-year return-to-base warranty.
Key Features
| Pull Power On A Single Line | 400kg | Lifting Height - Single Line | 12m | Power Supply | 230v |
|---|---|---|---|---|---|
| Pull Power On Double Lines | 800kg | Lifting Height - Double Lines | 6m | Braking | Automatic |
Pack Includes
Steel Cable
Clevis Hook
Manifold
Limit Switch
Wired Remote Control with Emergency Stop Button
Mounting Brackets
Mounting Screws
Power Cable
Manual

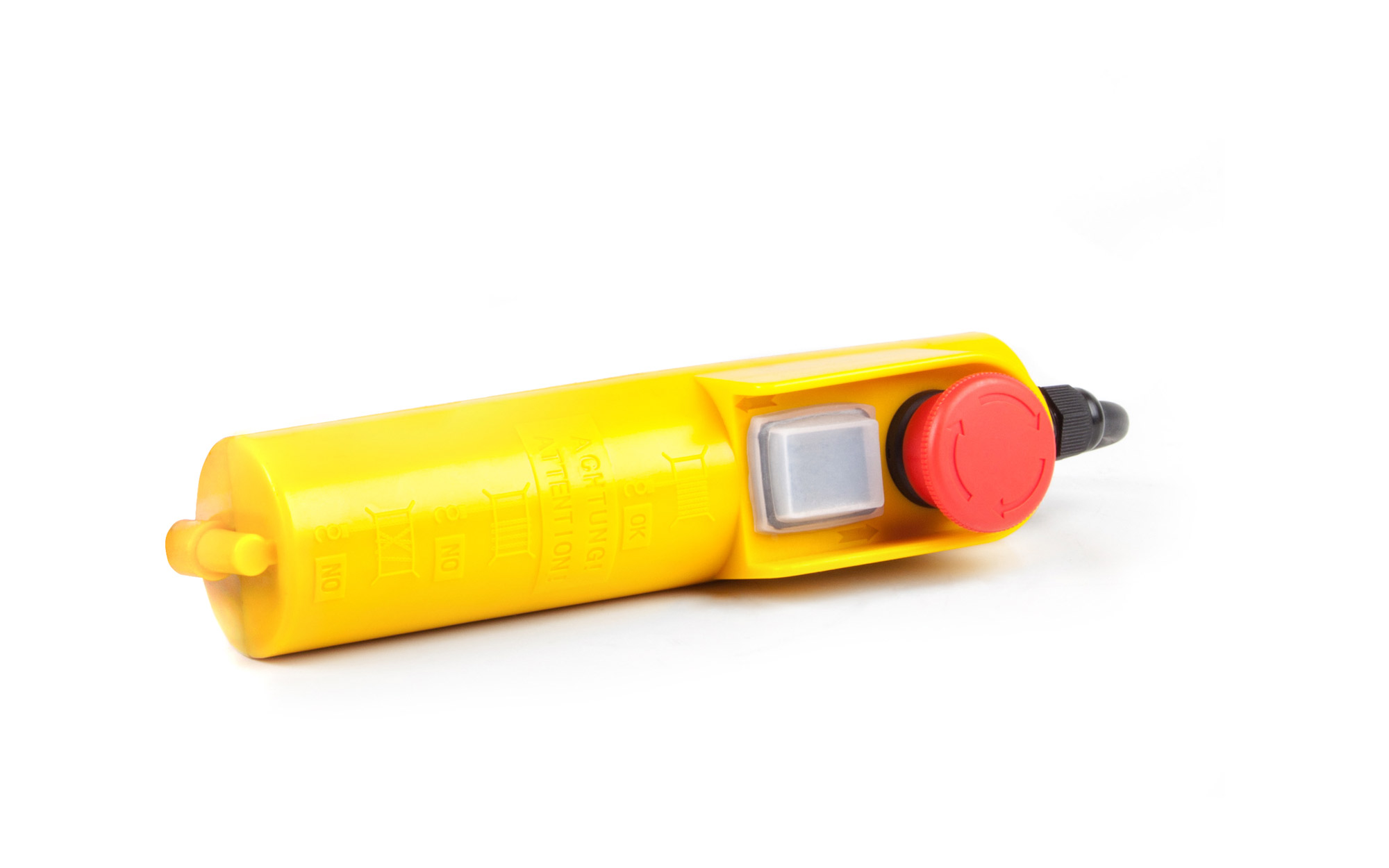

Wired Remote Control
Comparison
| Industrial 125/250 | Industrial 300/600 | Industrial 400/800 | Industrial 500/990 | |
|---|---|---|---|---|
 |  |  |  | |
| Power Supply | 230v | 230v | 230v | 230v |
| Braking | Automatic | Automatic | Automatic | Automatic |
| Pull Power - Single Line | 125kg | 300kg | 400kg | 500kg |
| Pull Power - Double Lines | 250kg | 600kg | 800kg | 990kg |
| Lifting Height- Single Line | 12m | 12m | 12m | 12m |
| Lifting Height - Double Lines | 6m | 6m | 6m | 6m |
| Price | 80.95GBP | 135.95GBP | 155.95GBP | 218.95GBP |
