Dedicated for Industrial vehicles

Buy now from our online store... View Product

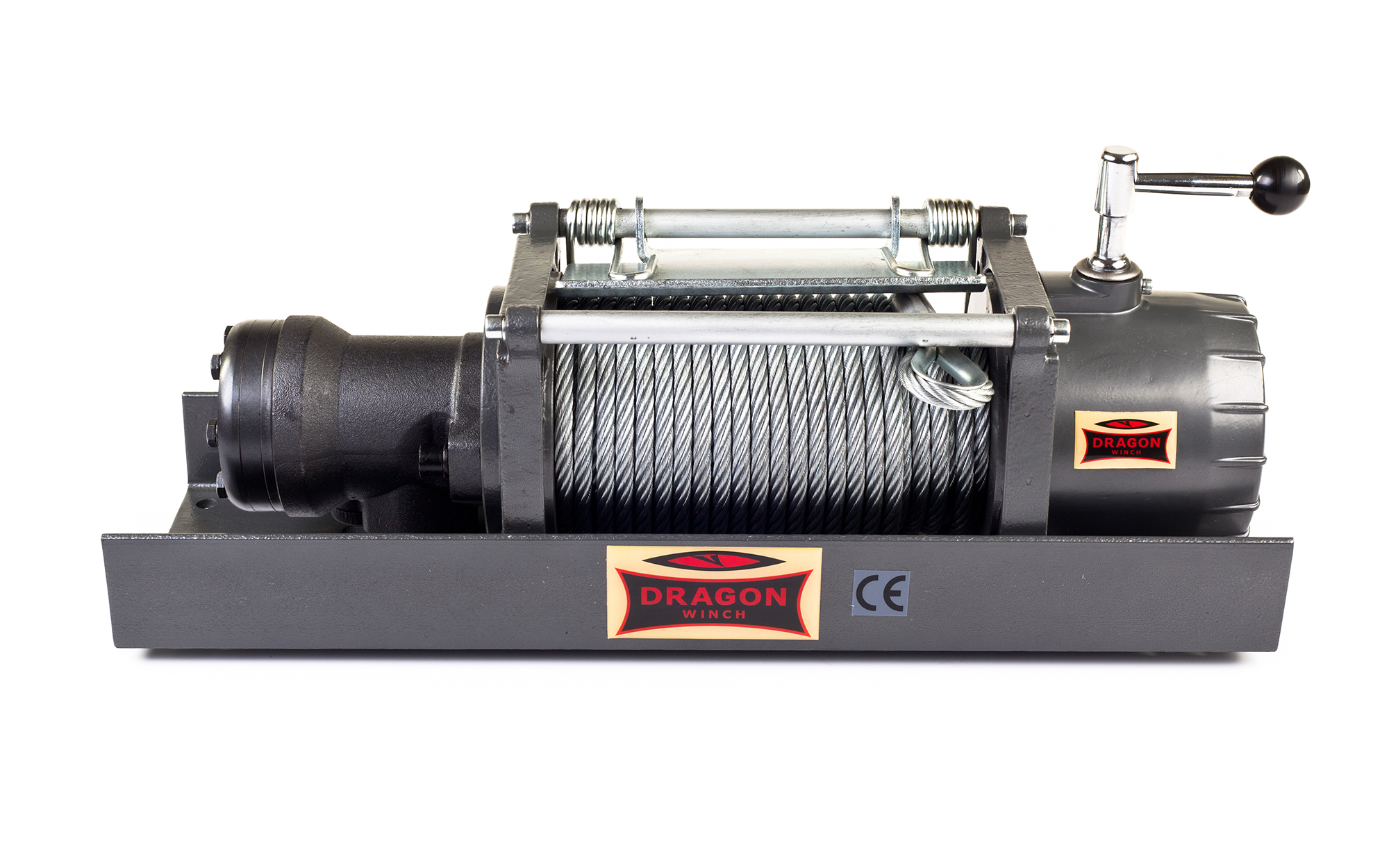

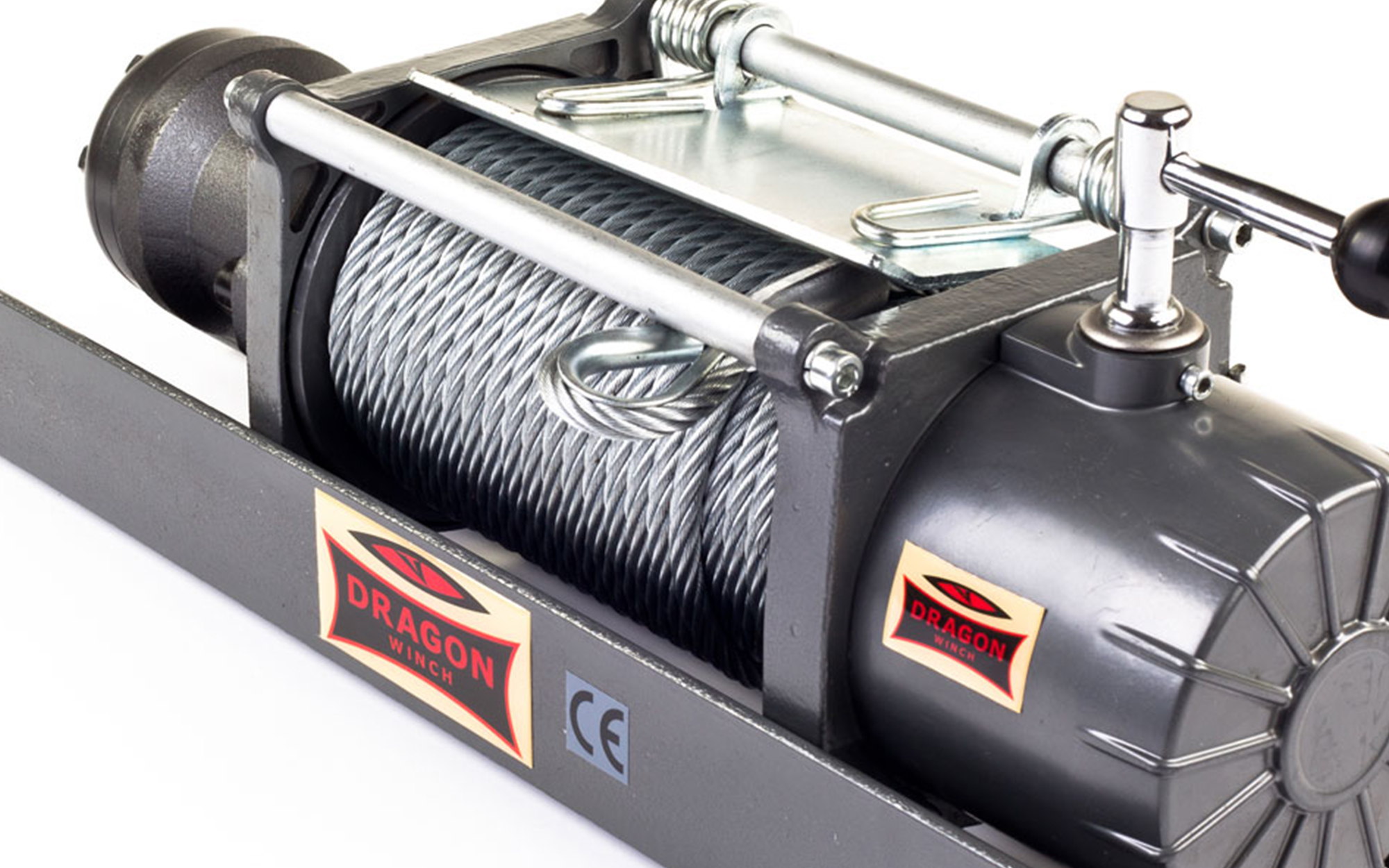

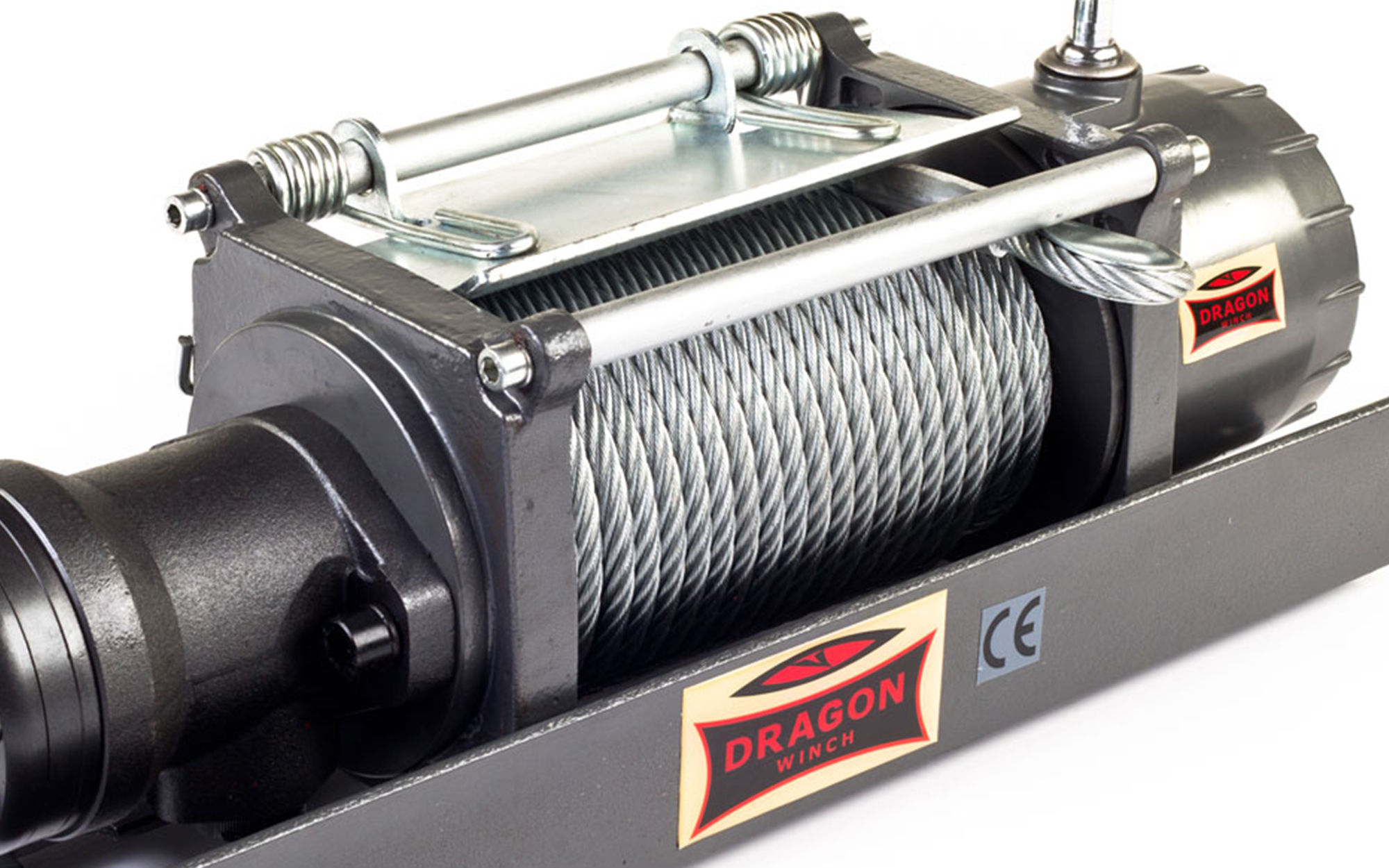

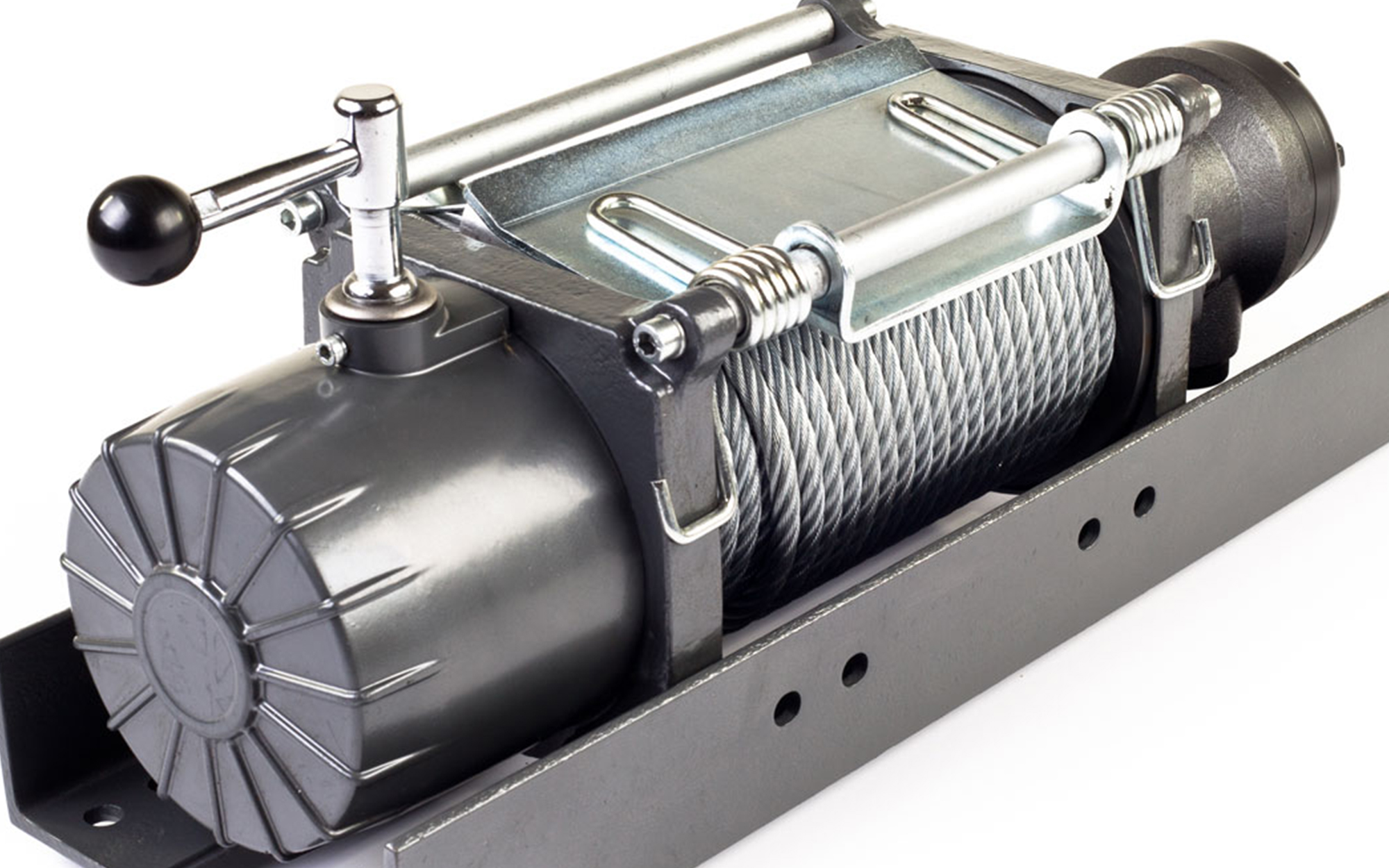

    The Dragon Winch Hydra 12000 HD is recommended for Off-Road & 4x4s. Durable and tough due to superior materials and construction methods, the Hydra 12000 HD provides a robust and reliable winching solution in all weather conditions and environments. It is capable of pulling up to 12,000 lb (5,443 kg / 5.4 t). The Hydra 12000 HD comes with a 26m of 10mm Steel Cable with Clevis Hook fed through Roller Guides, which are all included. The winch can be controlled with a Remote Control Only via the Hydra Control Set sold separately. The Hydra 12000 HD has a maximum oil pressure of 14 Mpa and a maximum oil flow of 5-45 l/min. The winch comes with a two-year return-to-base warranty.

    Pack Includes

    Control Options

    Wired Remote Control

    Built to tough Dragon Winch standards, a wired control gives a simple and totally reliable solution for controlling your winch in extreme conditions.


    Hydra 15000 HDHydra 12000 HD
    Pulling Rate15000lbs (6804kg)12000lbs (540kg)
    Dimensions525mm x 190mm x 114mm580mm x 201mm x 242mm
    Rope Type11.8mm Steel Cable10mm Steel Cable
    Rope Length28m26m
    Gear/Speed Reduction Ratio33:128:1
    Drum Size (Diameter/Length)88mm x 224mm
    Guide Bar4 Roll
