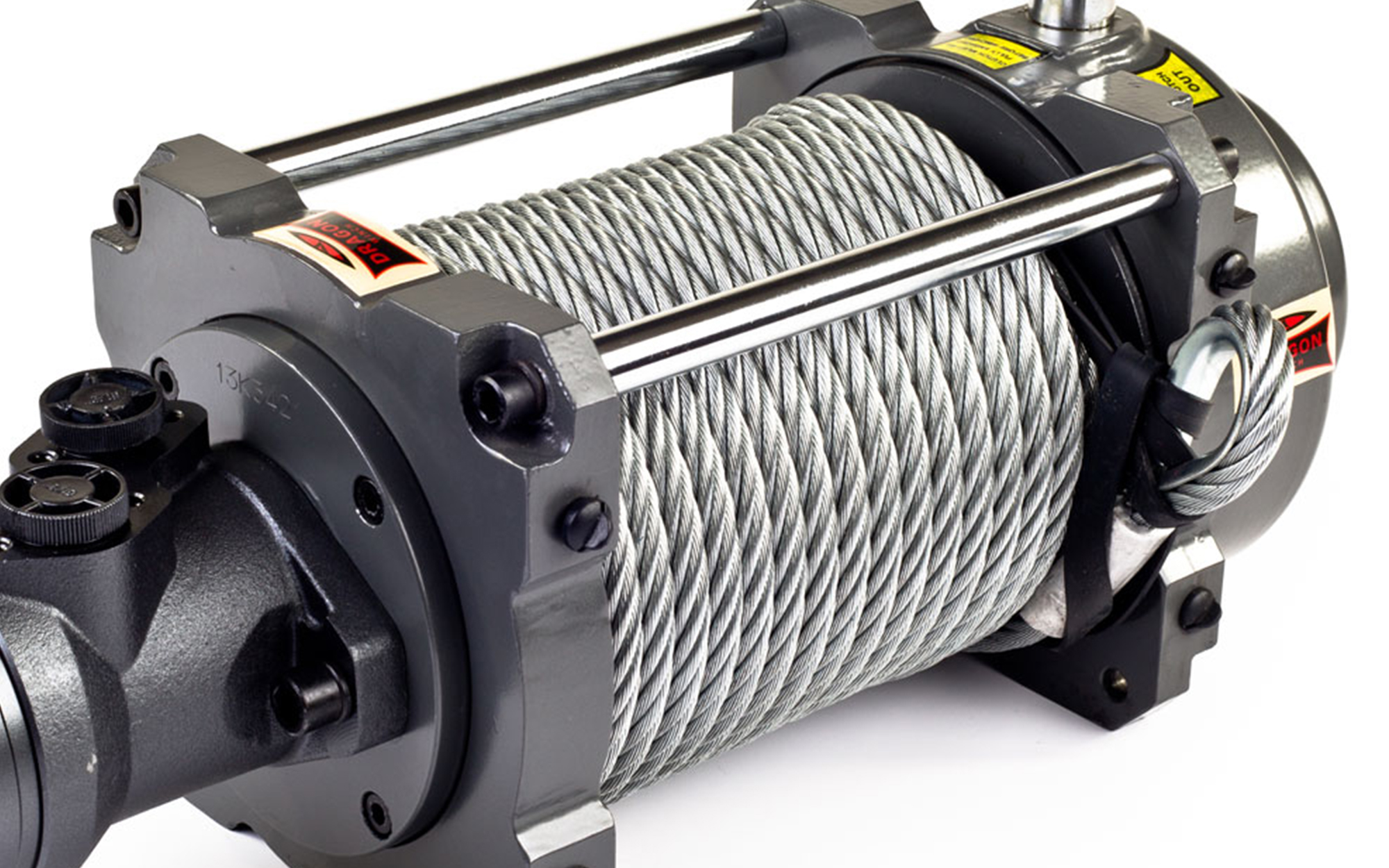

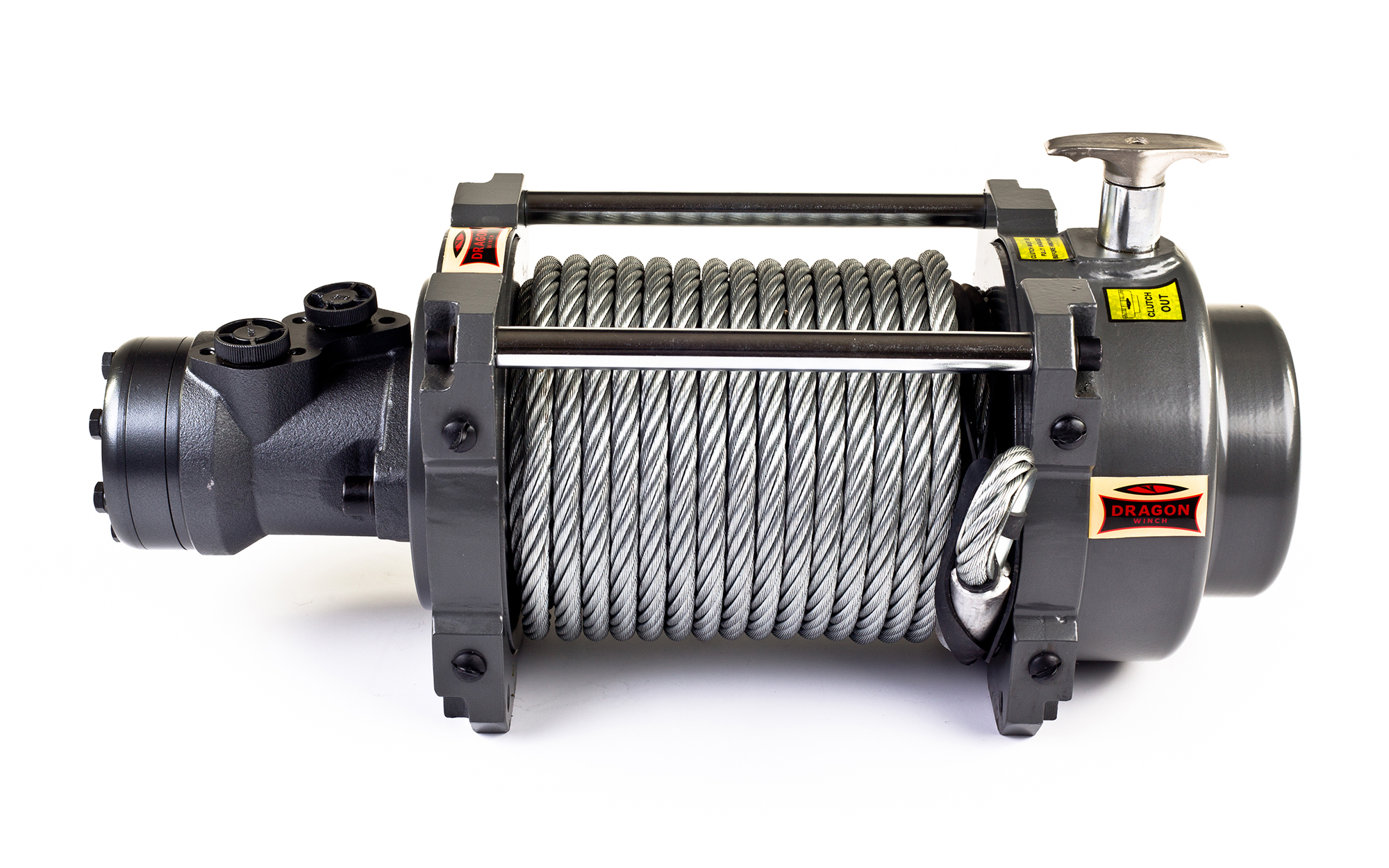

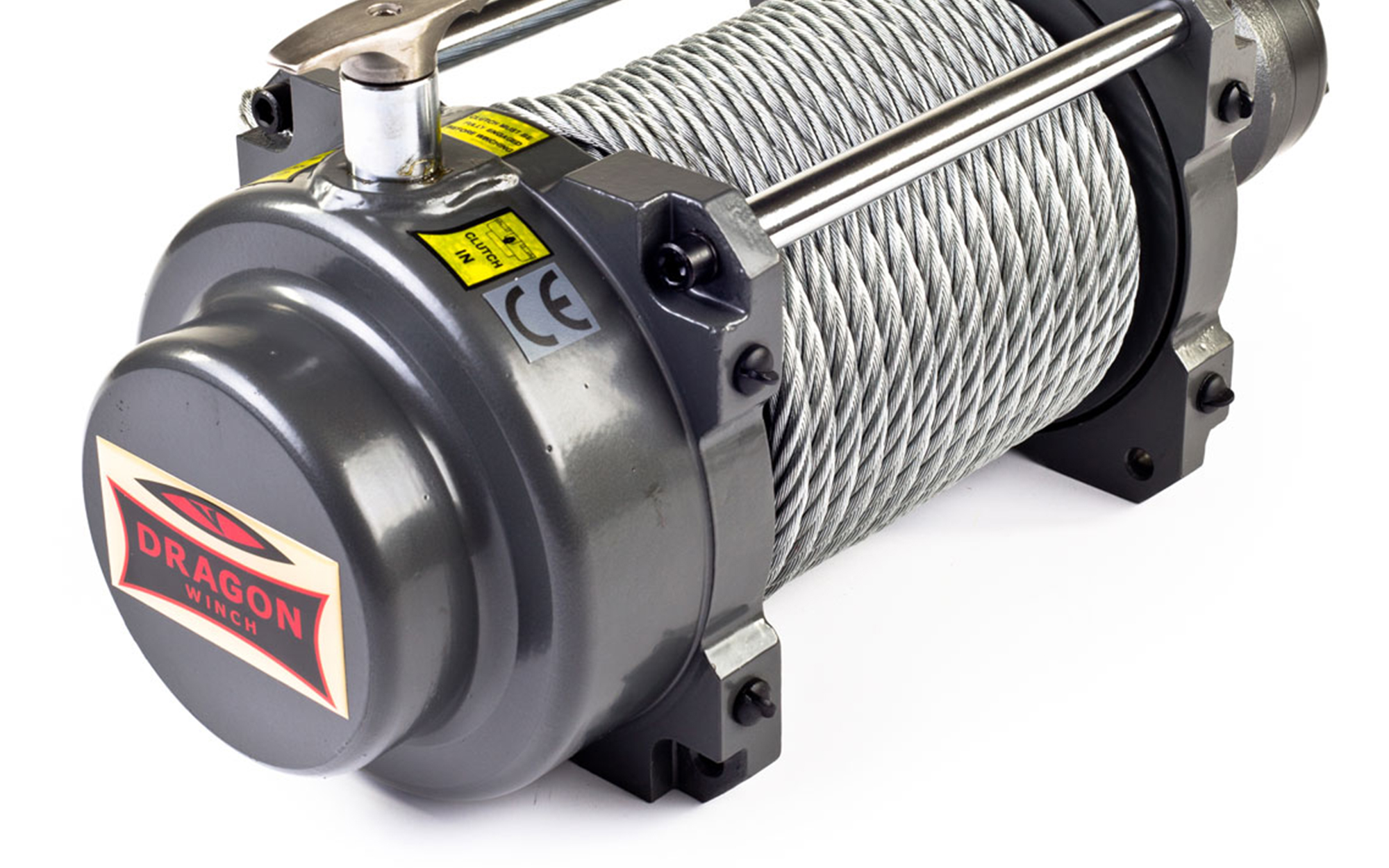

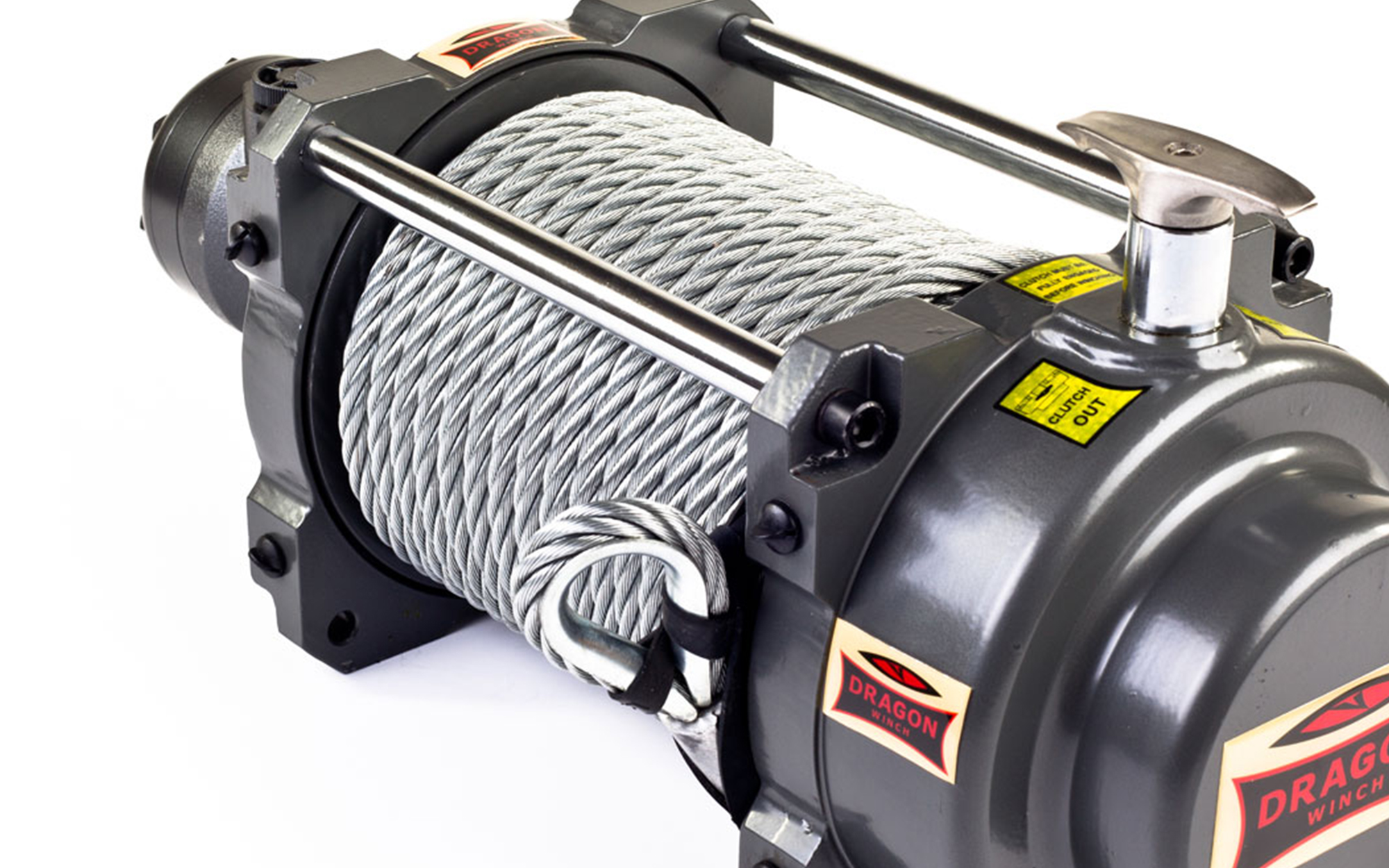

Hydra 15000 HD
Built for Industrial vehicles
The Dragon Winch Hydra 15000 HD is recommended for Off-Road & 4x4s. Durable and tough due to superior materials and construction methods, the Hydra 15000 HD provides a robust and reliable winching solution in all weather conditions and environments. It is capable of pulling up to 15,000 lb (6,804 kg / 6.8 t). The Hydra 15000 HD comes with a 28m of 11.8mm Steel Cable with Clevis Hook fed through Roller Guides, which are all included. The winch can be controlled with a Remote Control Only via the Hydra Control Set sold separately. The Hydra 15000 HD has a maximum oil pressure of 14.5 Mpa and a maximum oil flow of 5-45 l/min. The winch comes with a two-year return-to-base warranty.
Key Features
| Pulling Rate | 15000lbs (6804kg) | Weight | 66kg | Braking System | Dynamic |
|---|---|---|---|---|---|
| Rope Length | 28m of 11.8mm Steel Cable | Dimensions (w/d/h) | 525mm x 190mm x 240mm | Transmission/Gear System | 1 Stage Planetary & 2 Stage Cycloidal |
| Power Supply | Hydraulic | Mounting Screw Spacing | 254mm x 114mm | Gear/Speed Reduction Ratio | 25:1 |
| Drum Size | 88mm x224mm | Guide Bar | 4 Roll |
Pack Includes
28m of 11.8mm Steel Cable
Clevis Hook
Roller Guides
Wired Controller
Mounting Screws
Set of 2 Solenoid Valves
Wire Control Socket
Pressure Wiring
Oil Separator
Manual
Control Options
Wired Remote Control
Built to tough Dragon Winch standards, a wired control gives a simple and totally reliable solution for controlling your winch in extreme conditions.
Additional Information
| Rope Winding Speed & Power Consumption | ||||
|---|---|---|---|---|
| Rope Load (kg) | 0 | 4532 | 5443 | 6804 |
| Rope Speed (m/min) | 7.5 | 6 | 5.5 | 3.5 |
| Pulling Force Depending On Rope Layer | ||||
|---|---|---|---|---|
| Rope Layer | 1 | 2 | 3 | 4 |
| Rope Pull (kg) | 6804 | 5498 | 4612 | 3972 |
| Rope Length On The Drum (m) | 4.8 | 12 | 21 | 28 |
Comparison
| Hydraulic 15000 HD | Hydraulic 18000 HD | |
|---|---|---|
 |  | |
| Pulling Rate | 15000lbs (6804kg) | 18000lbs (8165kg) |
| Dimensions | 525mm x 190mm x 114mm | 530mm x 210mm x 115mm |
| Rope Type | 11.8mm Steel Cable | 12.2mm Steel Cable |
| Rope Length | 28m | 28m |
| Gear/Speed Reduction Ratio | 25:1 | 33:1 |
| Drum Size (Diameter/Length) | 88mm x 224mm | 88mm x 224mm |
| Guide Bar | 4 Roll | 4 Roll |
| Price | 919.99GBP | 825.95GBP |
