Built for Small-Medium ATVs

Buy now from our online store... View Product
0%

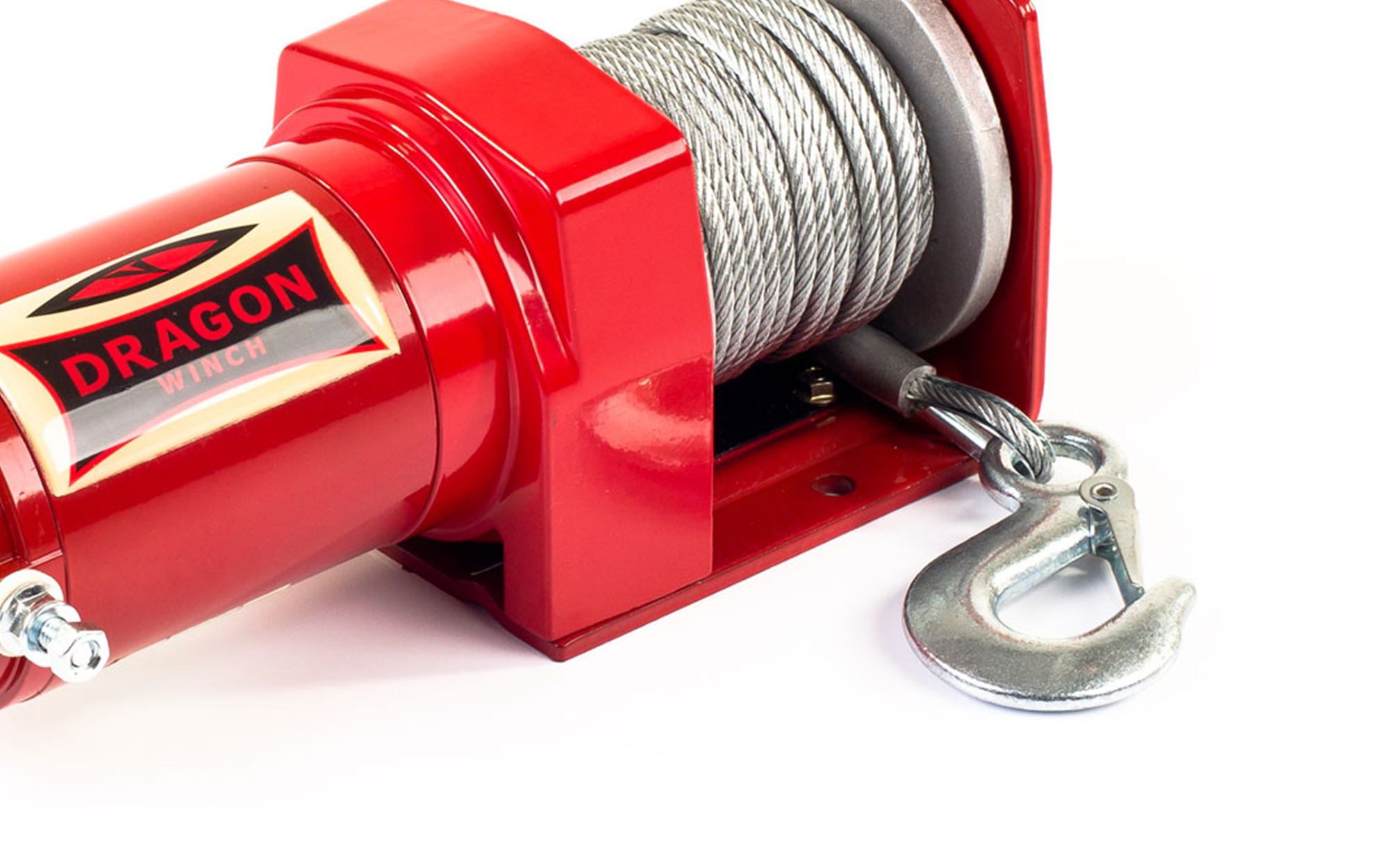

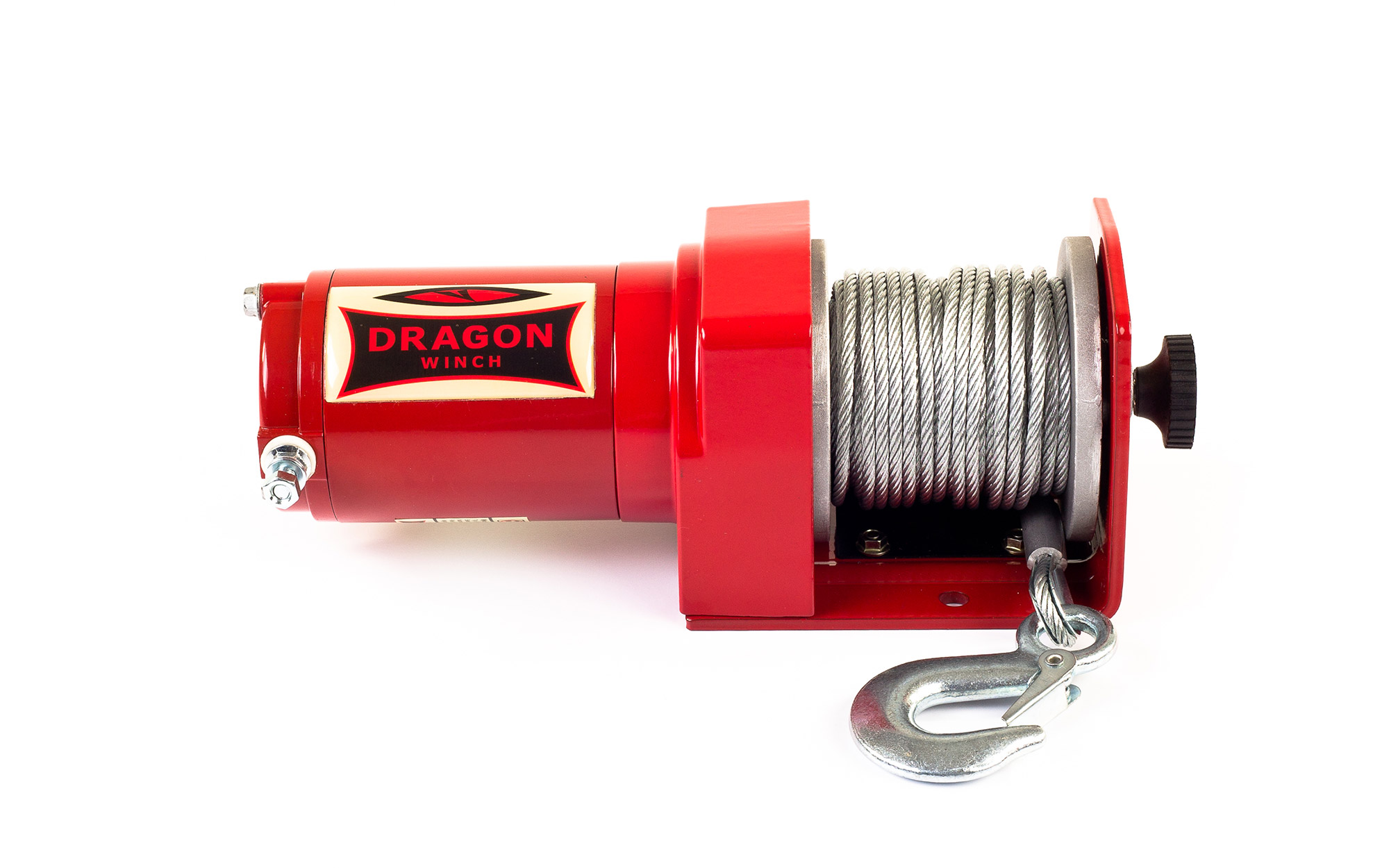

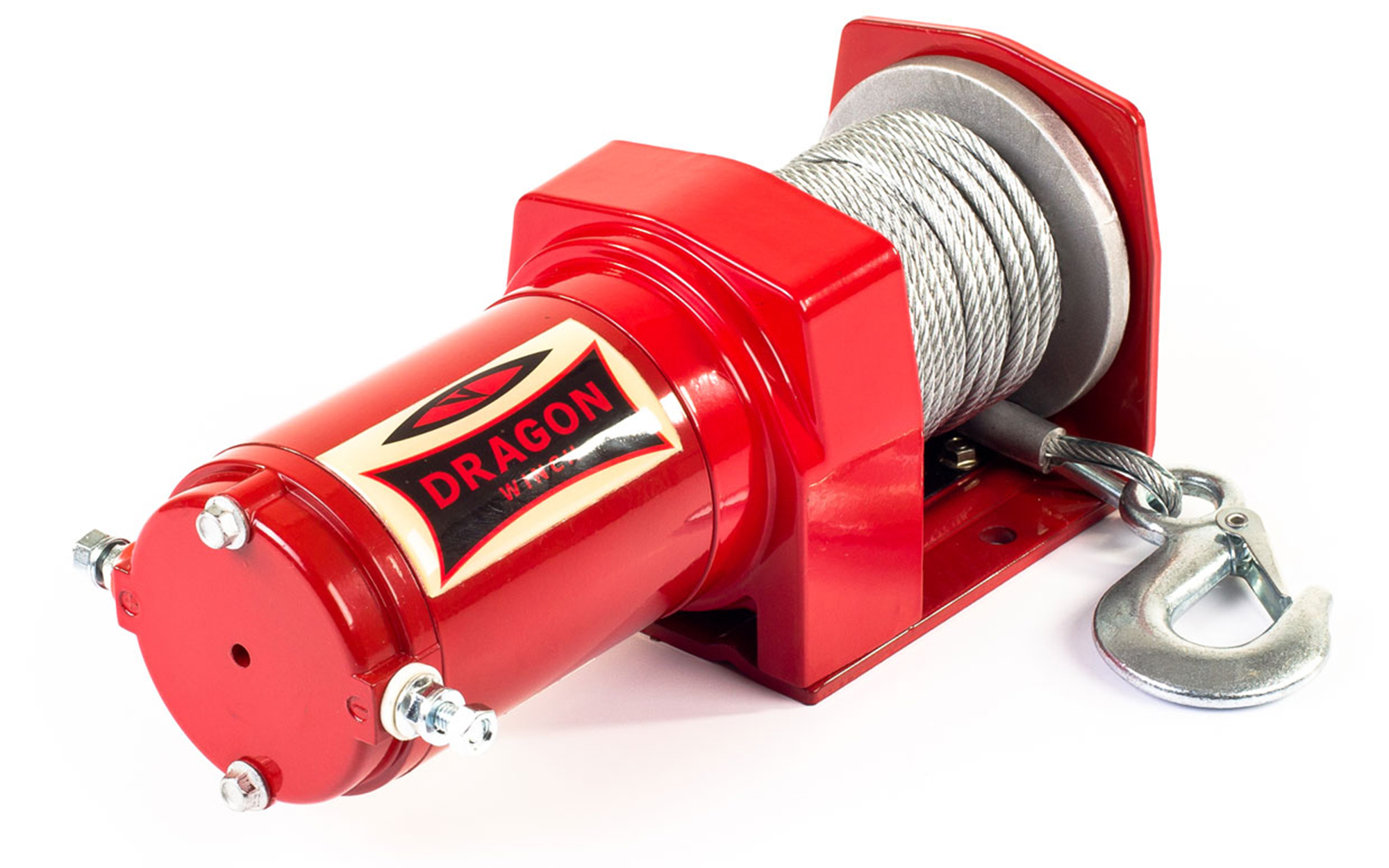

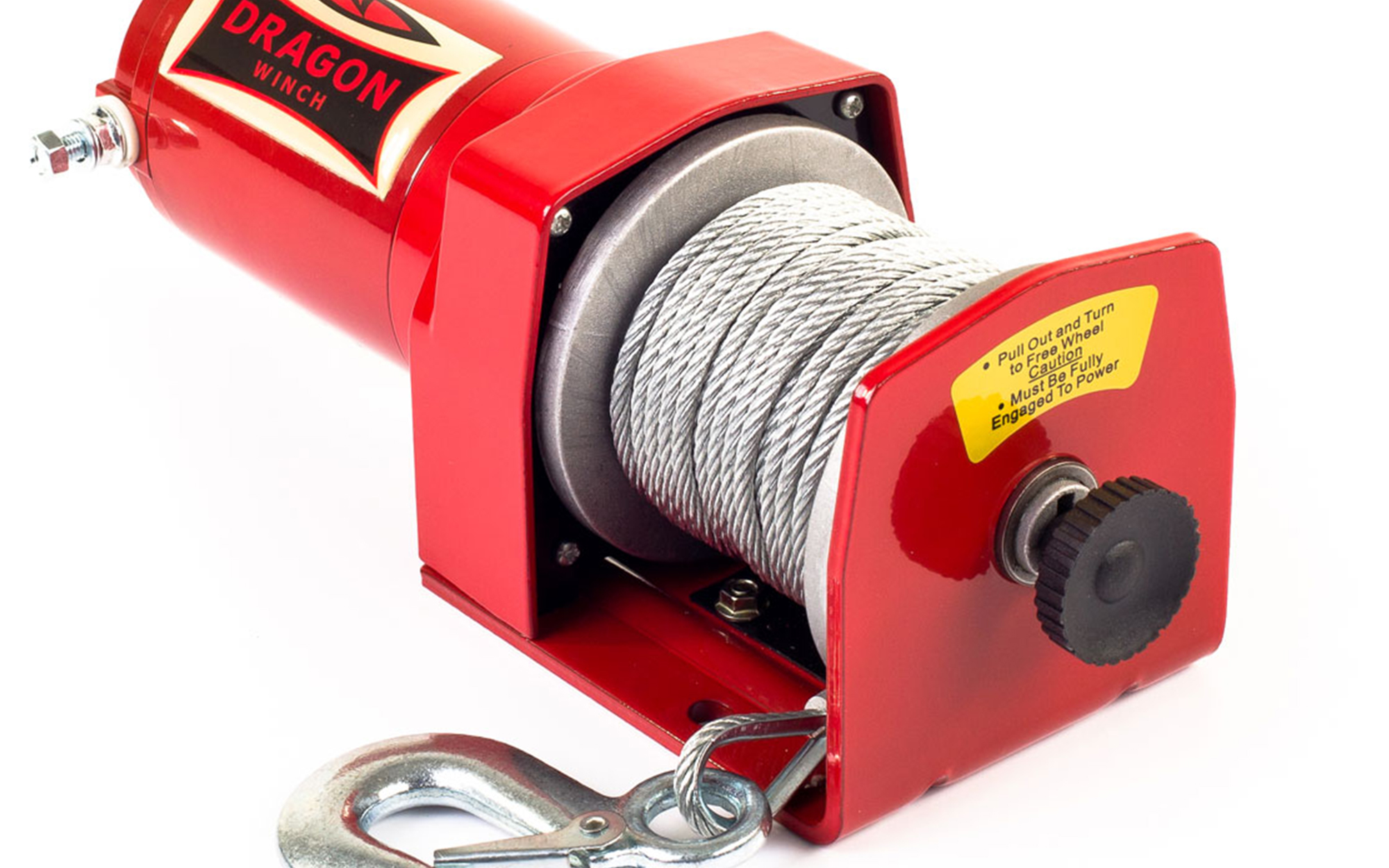

    The Dragon Winch Maverick 2500 ST is recomended for ATVs, Quads and UTVs. Durable and tough due to superior materials and construction methods, the Maverick 2500 ST provides a robust and reliable winching solution in all weather conditions and environments. It is capable of pulling upto 2,500 lb (1,134 kg / 1.1 t). The Maverick 2500 ST comes with a 10m of 4.5mm Steel Cable with Clevis Hook fed through Roller Guides, which are all included. The winch is controlled with a Wired Yellow Remote. The Maverick 2500 ST comes in a 12v option only. The winch comes with a two-year return-to-base warranty.

    Key Features

    Pulling Rate2500lbs (1133kg)Weight6kgBraking SystemSelfbrake
    Rope Length10mDimensions (w/d/h)285mm x 103mm x 105mmGear/Speed Reduction Ratio153:1
    Horsepower0.9hpGuide Bar4 Roll As Option
    Power SupplyElectrical (Battery)
    Voltage12v
    ControlYellow Wired Hand Control

    Control Options

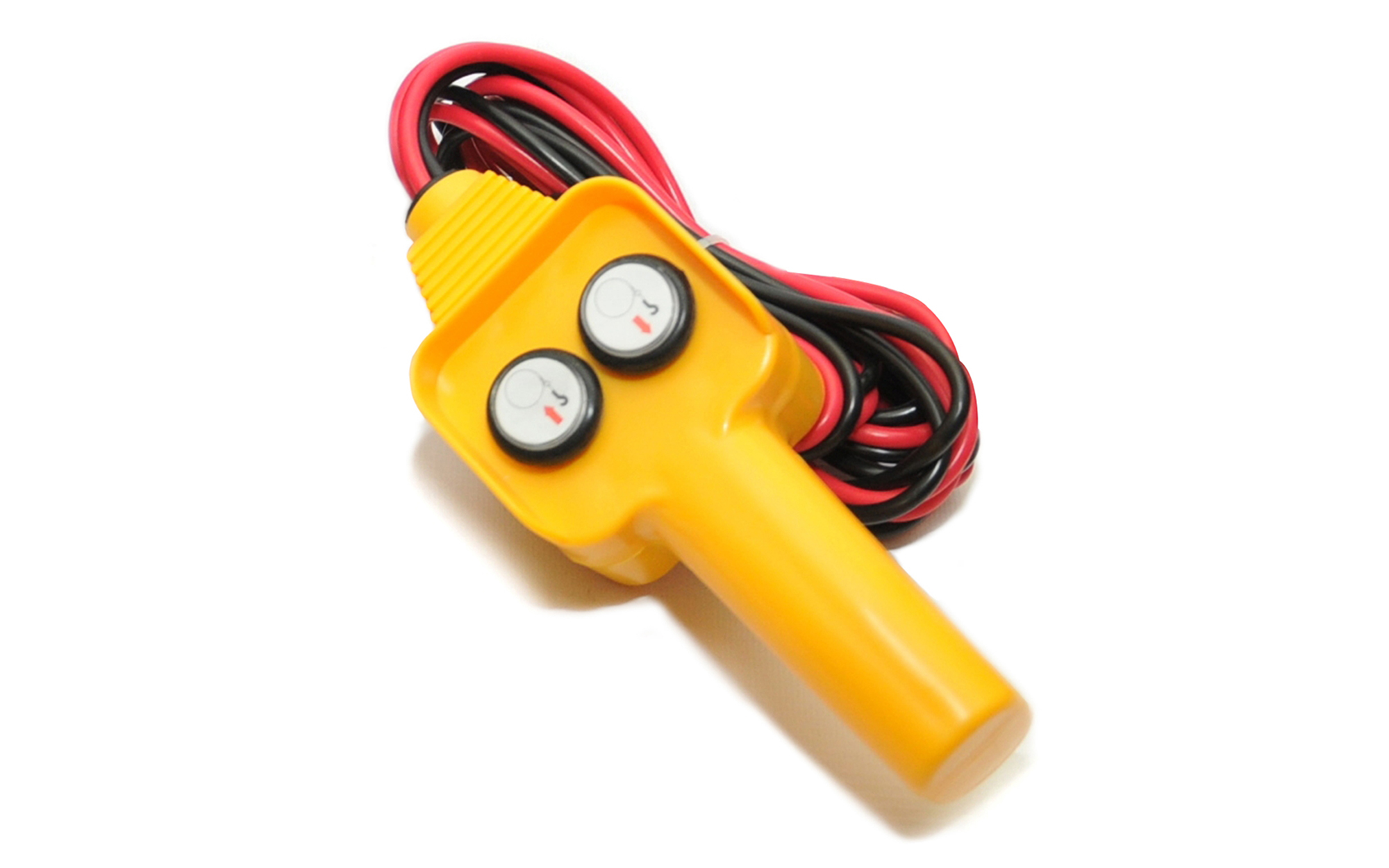

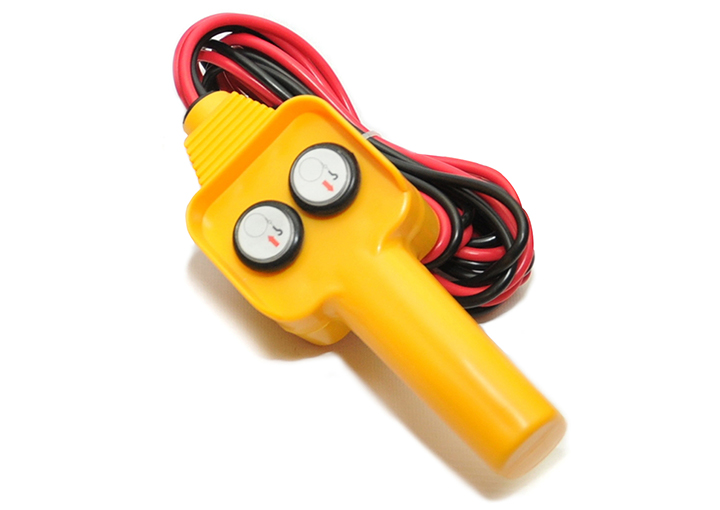

    Yellow Wired Hand Control

    Built to tough Dragon Winch standards, a wired control gives a simple and totally reliable solution for controlling your winch in extreme conditions.

    Additional Information

    Rope Winding Speed & Power Consumption
    Rope Load (kg)04541133
    Rope Speed (m/min)3.22.60.8
    Power Consumption (amp)2055110
    Pulling Force Depending On Rope Layer
    Rope Layer1234
    Rope Pull (kg)1133590495430
    Rope Length On The Drum (m)24.37.210

    Comparison

    Maverick 2000 STMaverick 2500 ST
    Pulling Rate2000lbs (907kg)2500lbs (1133kg)
    Horsepower0.9hp0.9hp
    Dimensions285mm x 103mm x 105mm285mm x 103mm x 105mm
    Voltage Options12v12v
    Rope TypeWireWire
    Rope Length10m10m
    Gear Reduction Ratio153:1153:1
    Price76.95GBP
    85.95GBP
