Built for Medium-Large ATVs & UTVs

Buy now from our online store... View Product
0%

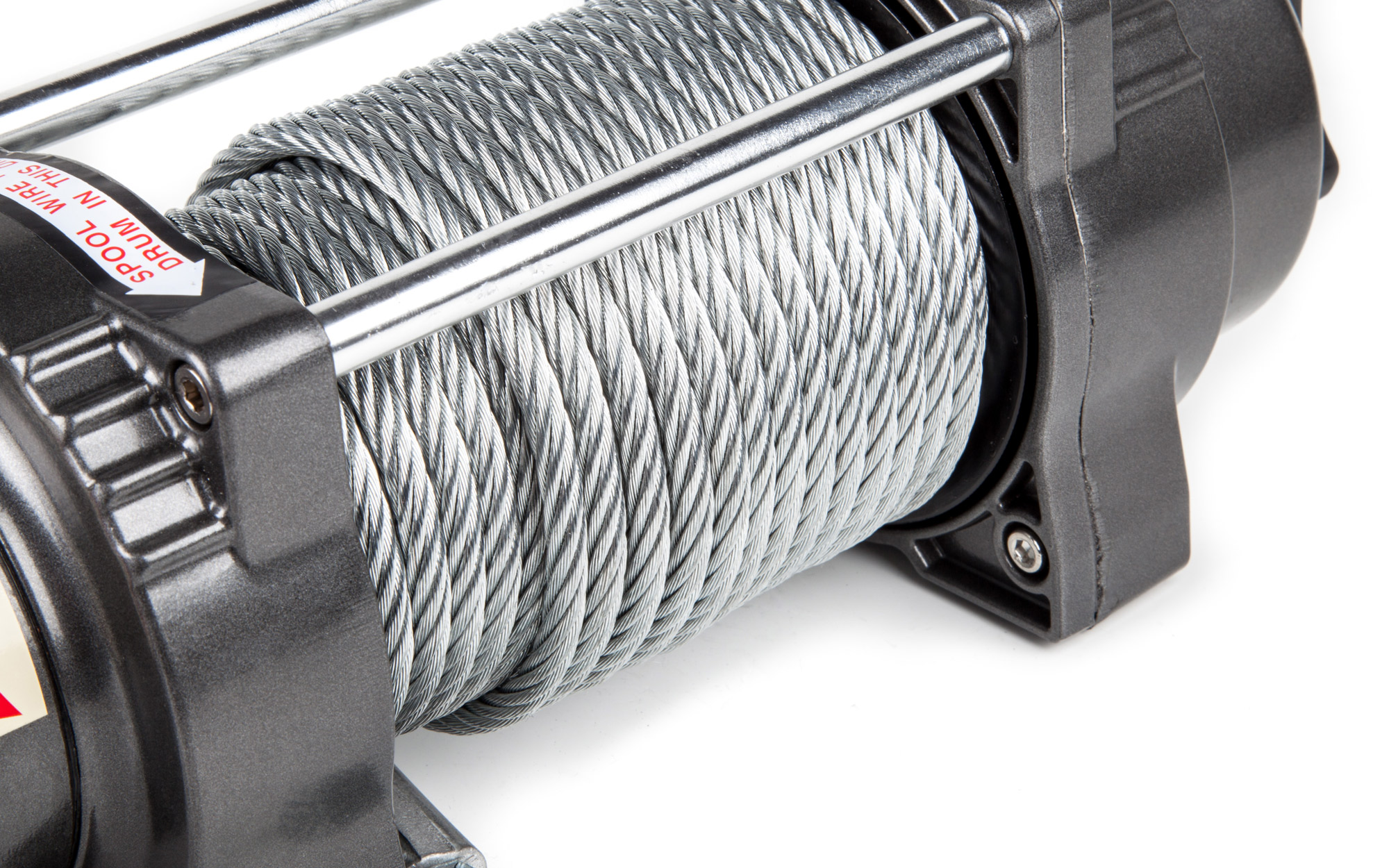

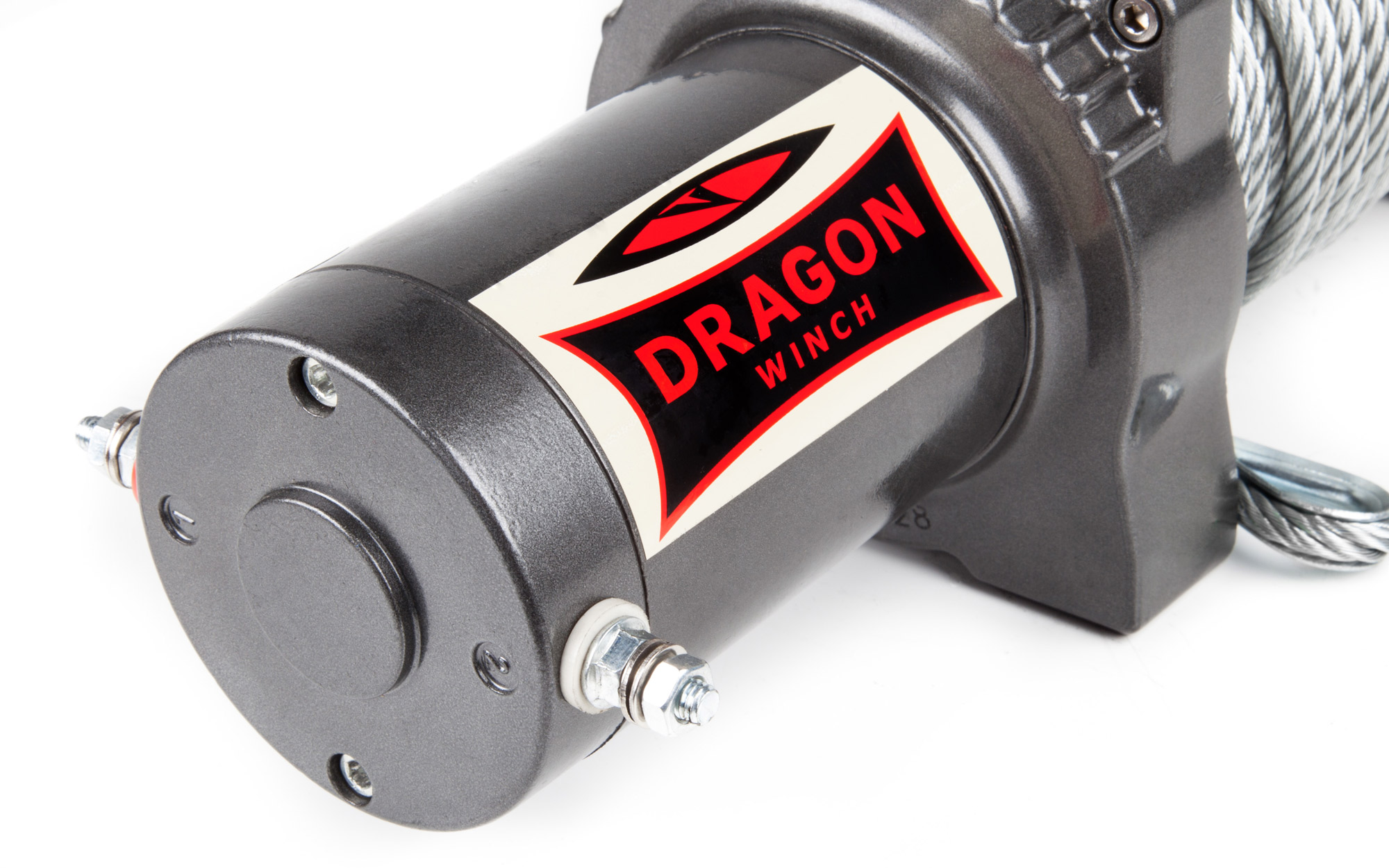

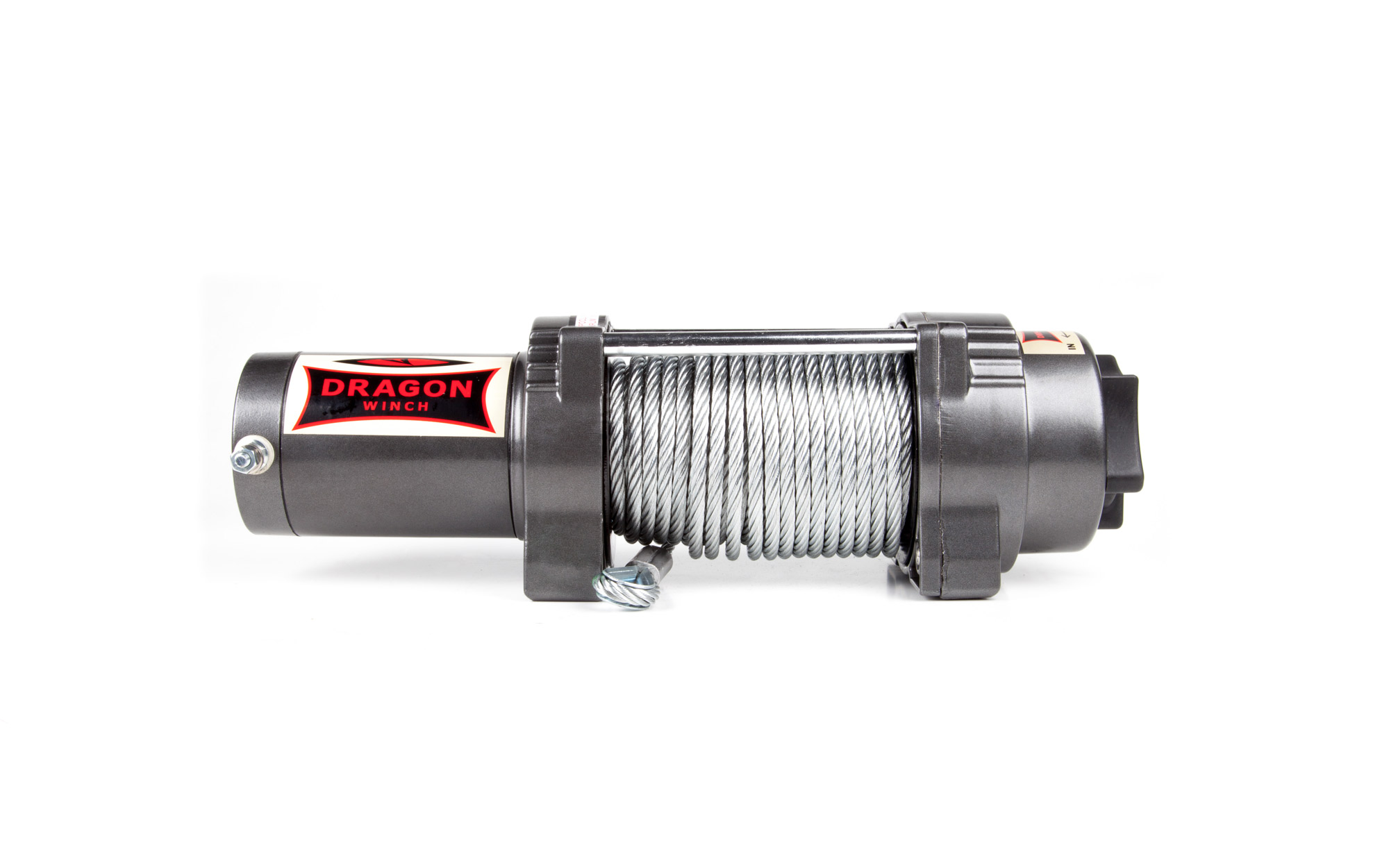

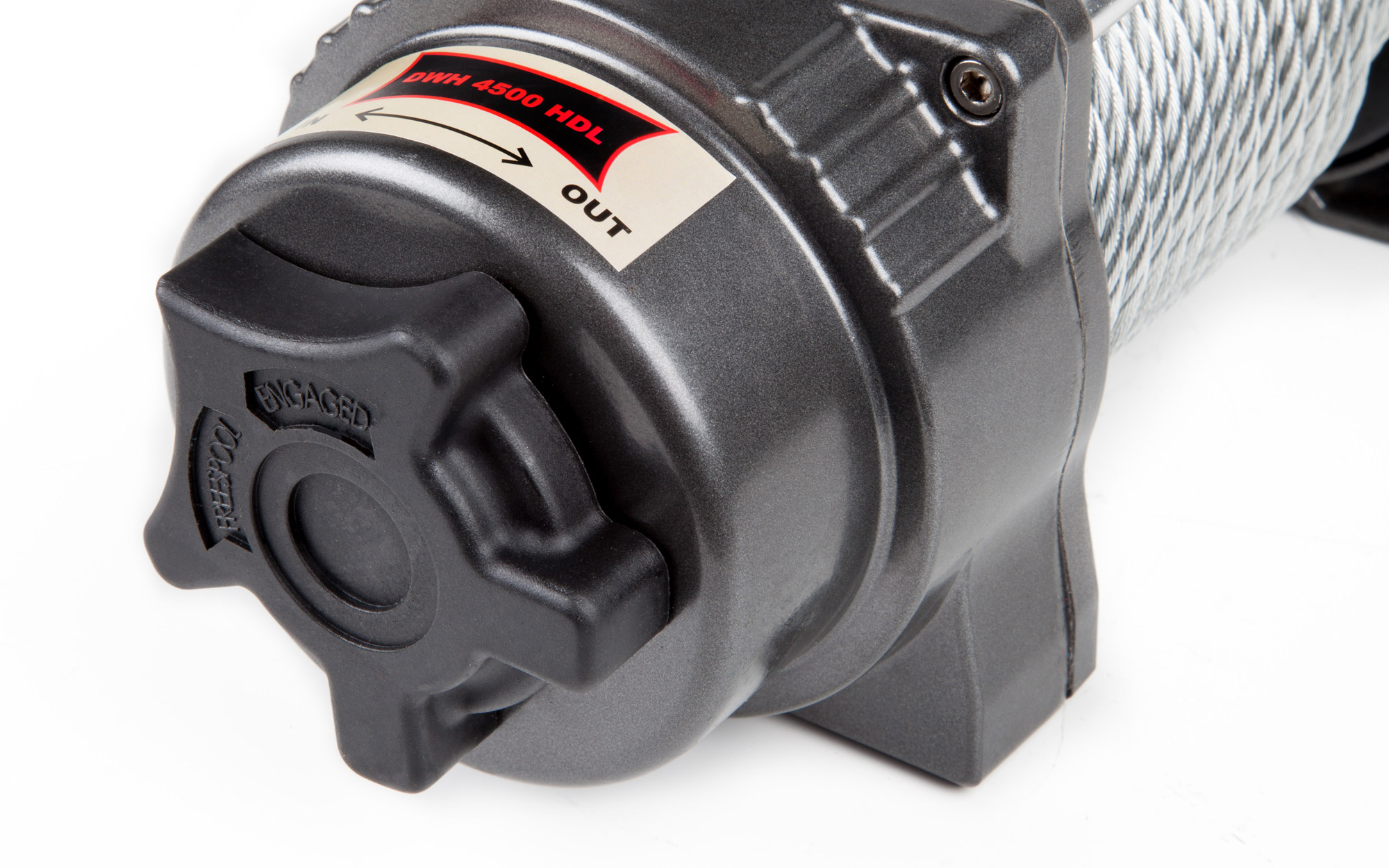

    The Dragon Winch Highlander 4500 HDL is suited for many different uses including ATVs & Quads, UTVs and Boats & Marine. Durable and tough due to superior materials and construction methods, the Highlander 4500 HDL provides a robust and reliable winching solution in all weather conditions and environments. It is capable of pulling upto 4,500 lb / 2,041 kg / 2.0 t. The Highlander 4500 HDL comes with a 15m (max 20m) Steel Cable with Clevis Hook fed through Roller Guides, which are all included. The winch is controlled with a Steering Wheel Switch & Wireless Remote Control. The Highlander 4500 HDL comes in a 12v option only. The winch comes with a two-year return-to-base warranty.

    Key Features

    Pulling Rate4500lbs (2041kg)Weight12.7kgBraking SystemAutomatic
    Rope Length15m of 4.5mm Steel CableDimensions (w/d/h)375mm x 114mm x 120mmTransmission/Gear System3 Stage Planetary
    Horsepower1.9hpMounting Screw Spacing170mm x 765mmGear/Speed Reduction Ratio136:1
    Power SupplyElectrical (Battery)
    Voltage12v
    ControlSwitch On Steering Wheel & Wireless Remote Control

    Control Options

    Switch On Steering Wheel

    A simple and convenient switch that comes with everything you need to mount it in your vehicle.

    Wireless Remote Control

    Compact, simple and remote to the winch itself, a wireless control option gives the operator greater ability to focus on the vehicle being towed without being restricted by cables.

    Additional Information

    Rope Winding Speed & Power Consumption
    Rope Load (kg)09072041
    Rope Speed (m/min)7.542.1
    Power Consumption (amp)2590160
    Pulling Force Depending On Rope Layer
    Rope Layer12345
    Rope Pull (kg)20411588141212781072
    Rope Length On The Drum (m)4710.514.520

    Comparison

    Highlander 4500 HDHighlander 4500 HDL
    Pulling Rate4500lbs (2041kg)4500lbs (2041kg)
    Horsepower1.9hp1.9hp
    Dimensions340mm x 114mm x 120mm375mm x 114mm x 120mm
    Voltage Options12v12v
    Rope Type5.5mm Steel Cable4.5mm Steel Cable
    Rope Length15m15m
    Gear Reduction Ratio136:1136:1
    Price255.95GBP
    304.99GBP
