Truck 15000 HD
Built for Large Off-Road & Industrial vehicles

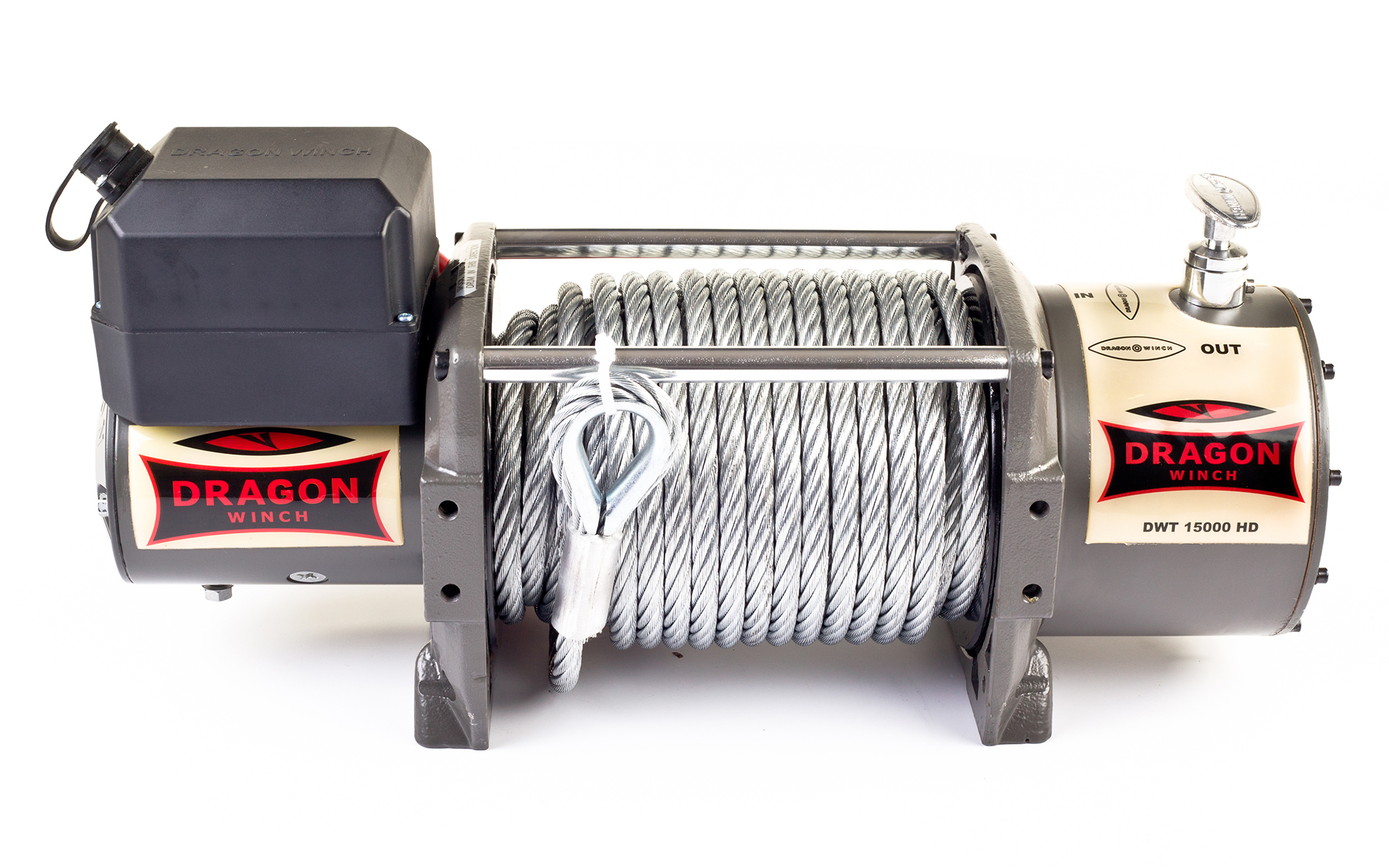

The Dragon Winch Truck 15000 HD is recommended for Recovery Vehicles. Durable and tough due to superior materials and construction methods, the Truck 15000 HD provides a robust and reliable winching solution in all weather conditions and environments. It is capable of pulling up to 15,000 lb (6,804 kg / 6.8 t). The Truck 15000 HD comes with a 26m of 11mm Steel Cable with Clevis Hook fed through Roller Guides, which are all included. The winch is controlled with a Wired & Wireless Controller. The Truck 15000 HD comes in 12v and 24v options. The winch comes with a two-year return-to-base warranty.
Key Features
| Pulling Rate | 15000lbs (6803kg) | Weight | 51kg | Braking System | Dynamic |
|---|---|---|---|---|---|
| Rope Length | 26m | Dimensions (w/d/h) | 560mm x 195mm x 250mm | Transmission/Gear System | 3 Stage Planetary |
| Horsepower | 7.8hp | Mounting Screw Spacing | 254mm x 114mm | Gear/Speed Reduction Ratio | 358:1 |
| Power Supply | Electrical (Battery) | Feeding Cable | 1.83m | Guide Bar | 4 Roll/Slide |
| Voltage | 12/24v | ||||
| Control | Remote Control & Wireless Remote Control |
Pack Includes
Steel Cable
Clevis Hook
Control Box
Roller Guides
Mounting Screws
Wired Controller
Wireless Controller
Wireless Controller Batteries
Power Cables
Manual
Control Options
Wired Remote Control
Built to tough Dragon Winch standards, a wired control gives a simple and totally reliable solution for controlling your winch in extreme conditions.
Wireless Remote Control
Compact, simple and remote to the winch itself, a wireless control option gives the operator greater ability to focus on the vehicle being towed without being restricted by cables.
Additional Information
| Rope Winding Speed & Power Consumption | ||||
|---|---|---|---|---|
| Rope Load (kg) | 0 | 4532 | 5443 | 6803 |
| Rope Speed (m/min) | 7.5 | 4.3 | 3.5 | 2.9 |
| Power Consumption (amp) | 70 | 280 | 360 | 420 |
| Pulling Force Depending On Rope Layer | ||||
|---|---|---|---|---|
| Rope Layer | 1 | 2 | 3 | 4 |
| Rope Pull (kg) | 6803 | 6157 | 5165 | 4449 |
| Rope Length On The Drum (m) | 5 | 11.5 | 19 | 26 |
Comparison
| Truck 14000 HD | Truck 15000 HD | |
|---|---|---|
 |  | |
| Pulling Rate | 14000lbs (6350kg) | 15000lbs (6803kg) |
| Horsepower | 7.8hp | 7.8hp |
| Dimensions | 535mm x 160mm x 235mm | 560mm x 195mm x 250mm |
| Voltage Options | 12/24v | 12/24v |
| Rope Type | Wire | Wire |
| Rope Length | 28m | 26m |
| Gear Reduction Ratio | 265:1 | 358:1 |
| Price | 611.99GBP | 1,045.95GBP |
