Home / Online Store / Recovery Vehicles / Hydra 15000 HD

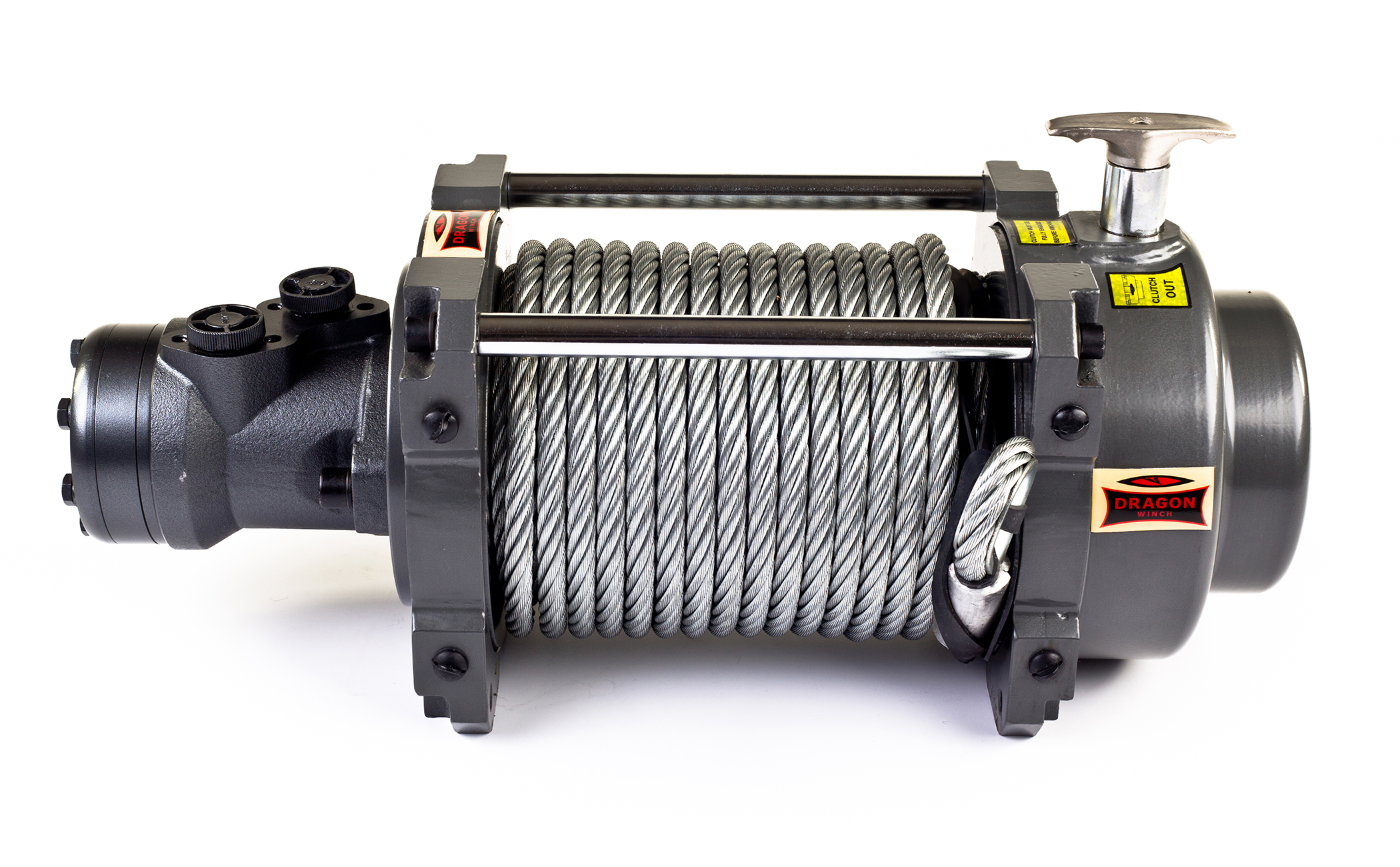

The Dragon Winch Hydra 15000 HD is suited for many different uses including Recovery Vehicles, Fire & Rescue, Industrial & Construction, Forestry, Military and Trailers. Durable and tough due to superior materials and construction methods, the Hydra 15000 HD provides a robust and reliable winching solution in all weather conditions and environments. It is capable of pulling up to 15,000 lb / 6,804 kg / 6.8 t. The Hydra 15000 HD comes with a 28m Steel Cable with Clevis Hook fed through Roller Guides, which are all included. The winch is controlled with a Remote Control Only. Please click here if you require the winch with the Control Set Pack. The Hydra 15000 HD has a maximum oil pressure of 14.5 Mpa and a maximum oil flow of 5-45 l/min. The winch comes with a two-year return-to-base warranty.

Trade Price
£735.95 (inc. vat) £613.29 (ex. vat)

Product CodeProduct NamePulling RateRope Speed
00044Hydra 15000 HD15,000 lbs (6,804 kg)5.1 m/min
+-
Key Features
Line Capacity15,000lbs (6,804kg)Line Pull - No LoadN/AUnit Dimensions w/d/h (mm)520mm x 186mm x 240mm
Line28m of 11.8mm Steel Cable with Clevis HookLine Pull - Full LoadN/AUnit Dimensions w/d/h (in)20.47in x 7.32in x 9.45in
MotorHydraulic Dis 50ml/rPower SupplyHydraulicUnit Dimensions w/d/h (in)20.47in x 7.32in x 9.45in
Gearbox2 Stage PlanetaryVoltage (v)N/AMounting Screw Spacing (mm)254mm x 114mm
Reduction Ratio25:1Horsepower (hp)N/AMounting Screw Spacing (in)10in x 4.49in
Control OptionsRemote Control OnlyBraking SystemDynamicShipping Weight66kg
Warranty2 Year Return to BaseLine ManagementRoller Guides
Pack Includes
  • x1 Steel Cable
  • x1 Clevis Hook
  • x1 Roller Guides
  • x1 Mounting Screws
  • x1 Instruction Manual
Suggested Uses
  • Recovery Vehicles
  • Fire & Rescue
  • Industrial & Construction
  • Forestry
  • Military
  • Trailers
