Home / Online Store / Fire & Rescue / Hydra 660 HD

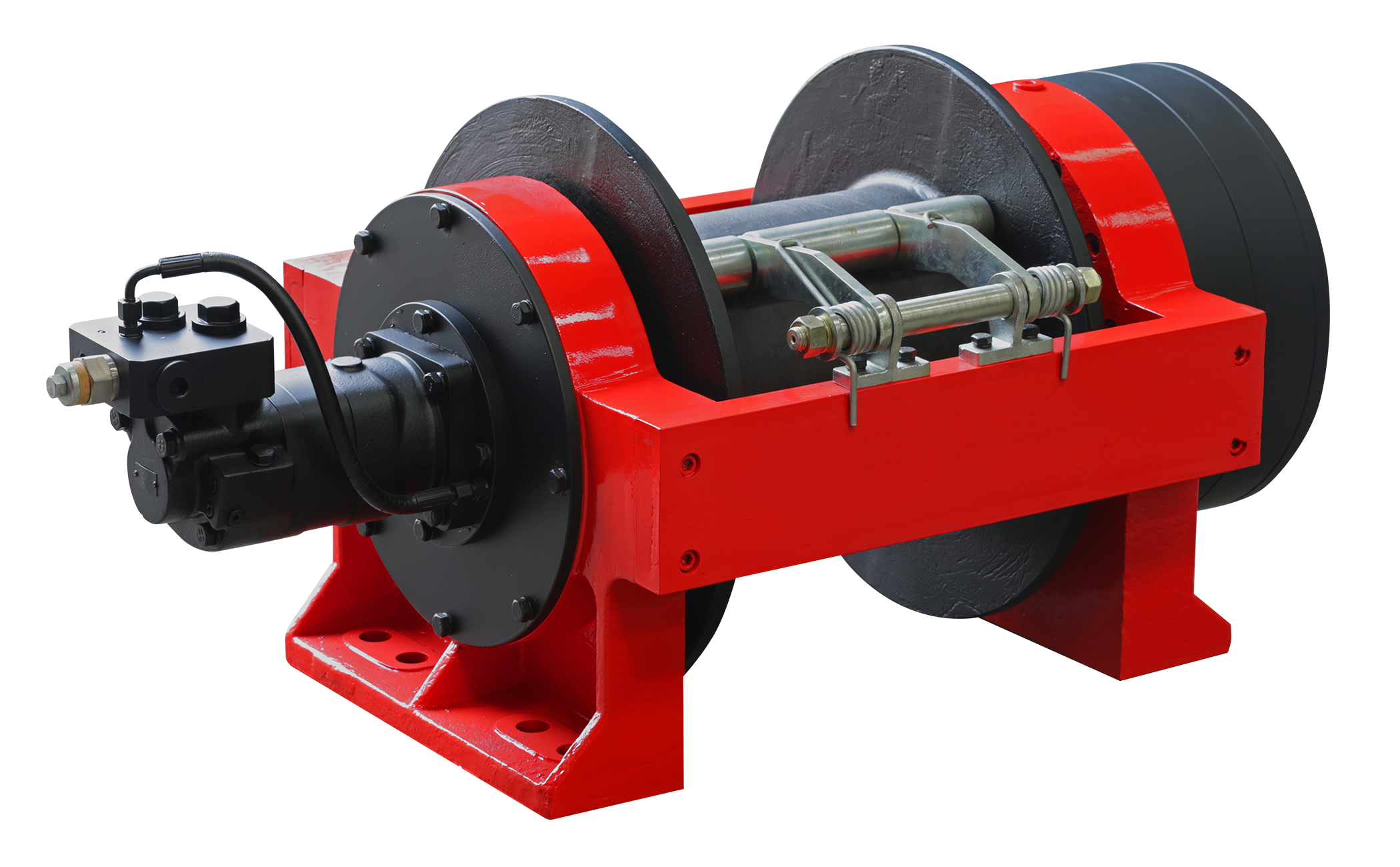

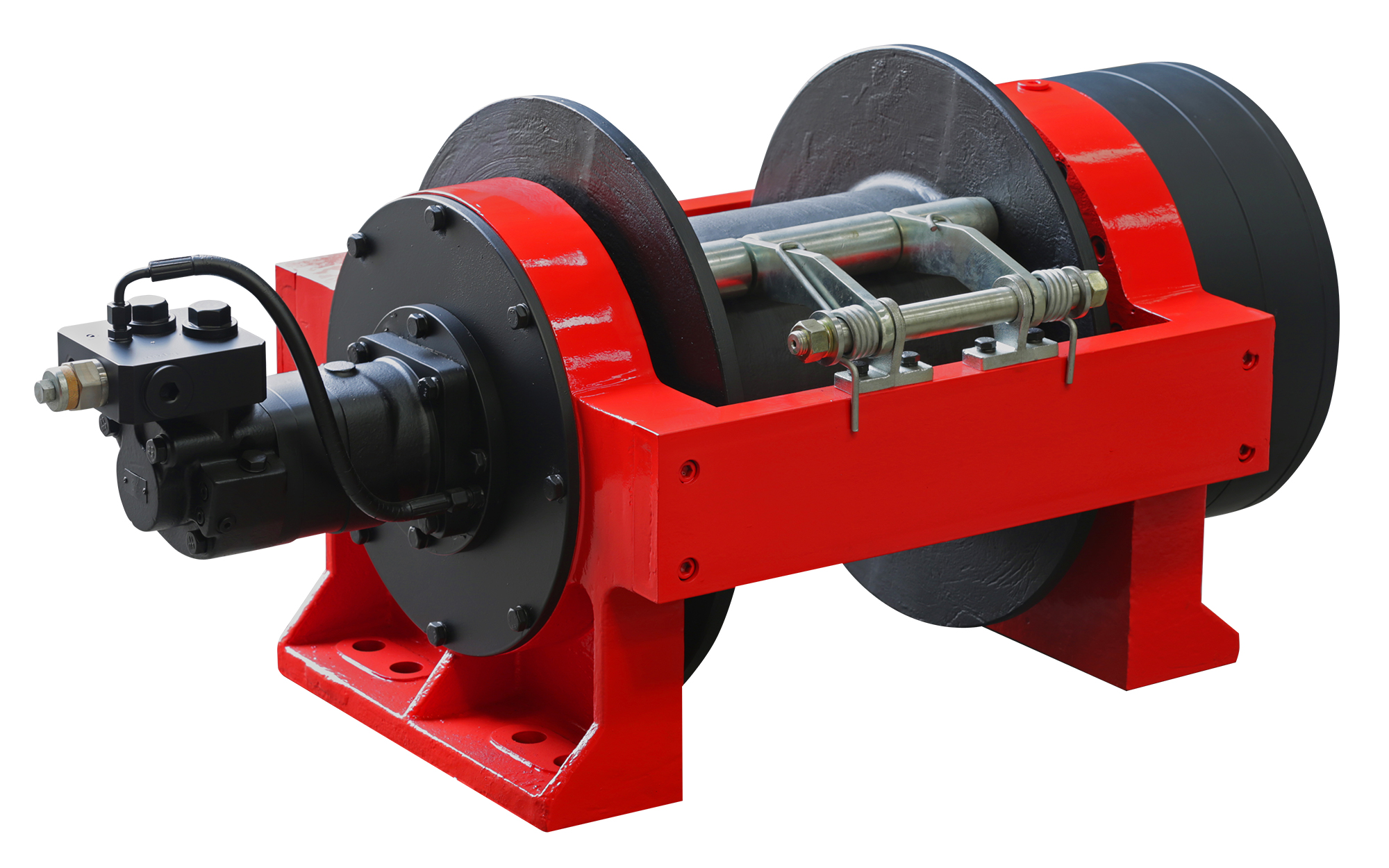

The Dragon Winch Hydra 660 HD is suited for many different uses including Recovery Vehicles, Fire & Rescue, Industrial & Construction, Forestry, Military and Trailers. Durable and tough due to superior materials and construction methods, the Hydra 660 HD provides a robust and reliable winching solution in all weather conditions and environments. It is capable of pulling up to 66,000 lb / 29,937 kg / 29.9 t. The Hydra 660 HD is recommended to have 32 mm diameter Rope to help get the best performance out of your Hydra 660.

Trade Price
£11,500.00 (inc. vat) £9,583.33 (ex. vat)

Product CodeProduct NamePulling RateRope Speed
00038Hydra 660 HD66,000 lbs (30,000 kg)5.5 m/min
Key Features
Line Capacity66,000lbs (30,000kg)Line Pull - No LoadN/AUnit Dimensions w/d/h (mm)1337mm x 530mm x 450mm
LineN/ALine Pull - Full LoadN/AUnit Dimensions w/d/h (in)52.64in x 20.87in x 17.72in
MotorHydraulic Dis 50ml/rPower SupplyHydraulicUnit Dimensions w/d/h (in)52.64in x 20.87in x 17.72in
Gearbox2 Stage PlanetaryVoltage (v)N/AMounting Screw Spacing (mm)610mm x 330mm / 610mm x 200mm
Reduction RatioTBCHorsepower (hp)N/AMounting Screw Spacing (in)24.02in x 12.99in / 24.02in x 7.78in
Control OptionsN/ABraking SystemHydraulicShipping Weight570kg
Warranty2 Year Return to BaseLine ManagementAluminium Fairlead
Pack Includes
  • x1 Rope Pusher
  • x1 Instruction Manual
Suggested Uses
  • Recovery Vehicles
  • Fire & Rescue
  • Industrial & Construction
  • Forestry
  • Military
  • Trailers
