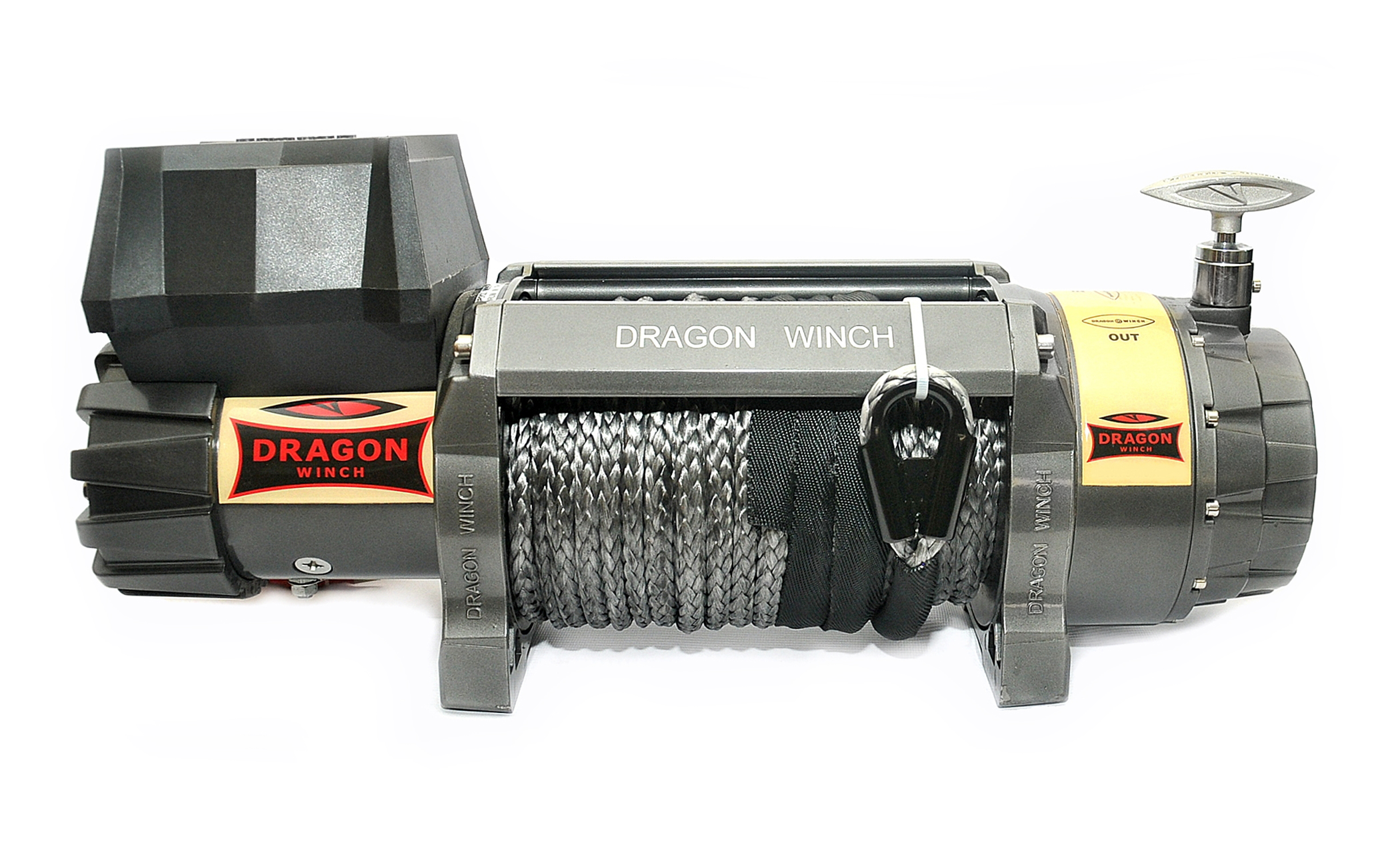

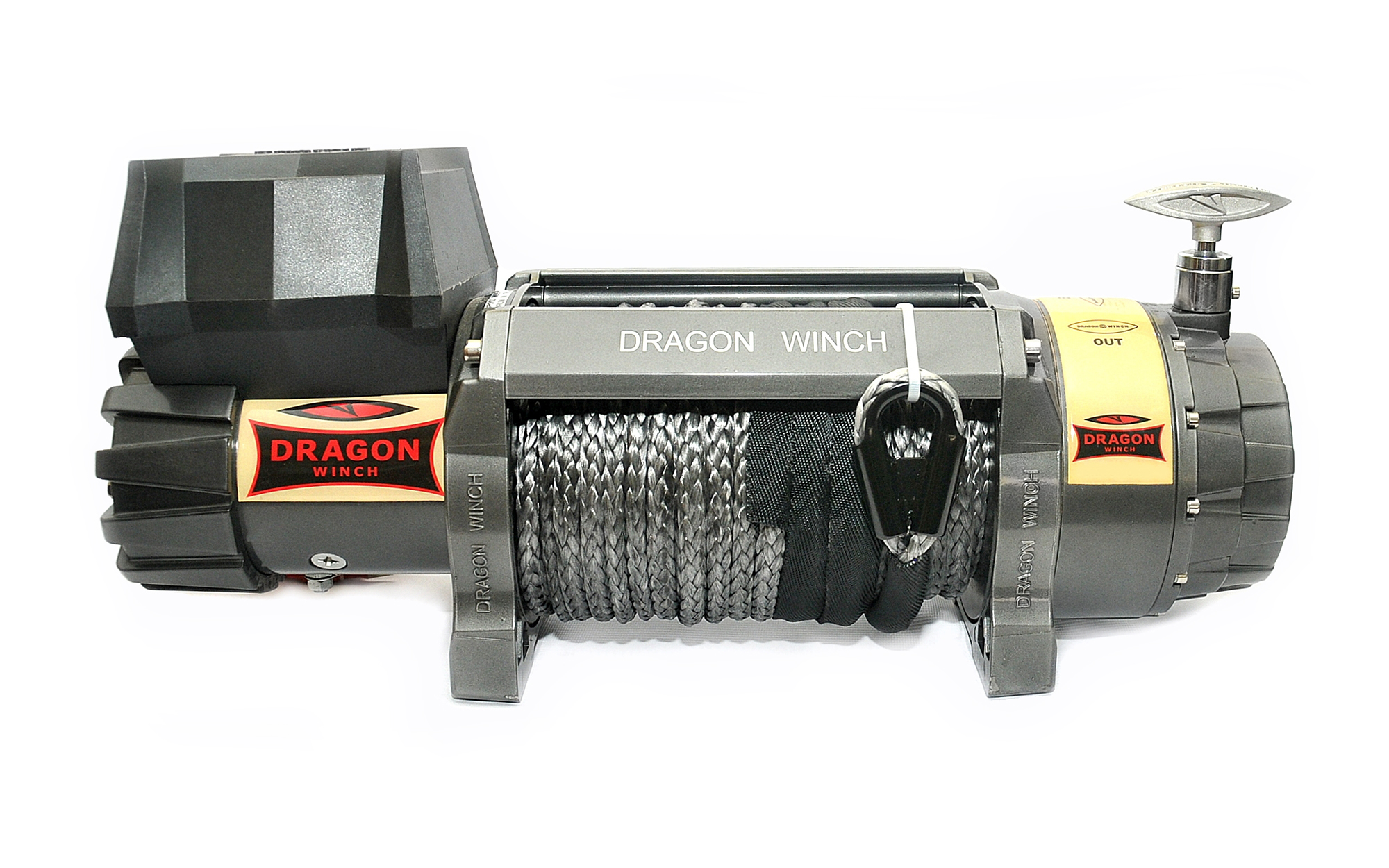

Highlander 9000 HD with Synthetic Rope
The Dragon Winch Highlander 9000 HD with synthetic rope is ideally suited for medium to large off-road vehicles as it's capable of pulling up to 9,000 lb / 4,082 kg / 4.1 t. Designed with a powerful motor, heavy-duty gearbox and a unique construction for rough operating conditions, the Highlander 9000 HD with synthetic rope guarantees the highest level of reliability.
Trade Price
£855.99
(inc. vat)
£713.33
(ex. vat)
| Product Code | Product Name | Voltage | Pulling Rate | Rope Length | Options | |
|---|---|---|---|---|---|---|
| 00379 | Highlander 9000 HD with Synthetic Rope & Aluminium Fairlead | 12 v | 9,000 lbs (4,082 kg) | 26 m | Aluminium Fairlead |
|
Key Features
| Line Capacity | 9,000lbs (4,082kg) | Line Pull - No Load | 25 m/min (65 Amps) | Unit Dimensions w/d/h (mm) | 599mm x 166mm x 270mm |
|---|---|---|---|---|---|
| Line | 26m of 10mm Synthetic Rope with Clevis Hook | Line Pull - Full Load | 5.8 m/min (360 Amps) | Unit Dimensions w/d/h (in) | 23.58in x 6.54in x 10.63in |
| Motor | Reversible 9 hp (6.71 kW) 12v Electric Motor, Powers In & Out | Power Supply | Electrical (Battery) | Unit Dimensions w/d/h (in) | 23.58in x 6.54in x 10.63in |
| Gearbox | 3 Stage Planetary | Voltage (v) | 12v | Mounting Screw Spacing (mm) | 254mm x 114mm |
| Reduction Ratio | 138:1 | Horsepower (hp) | 9hp | Mounting Screw Spacing (in) | 10in x 4.49in |
| Control Options | Wired & Wireless Controllers | Braking System | Dynamic | Shipping Weight | 46kg |
| Warranty | 2 Year Return to Base | Line Management | Aluminium Fairlead |
Pack Includes
|
Suggested Uses
|
