Home / Online Store / Electrical Winches / Highlander 12000 HD with Synthetic Rope

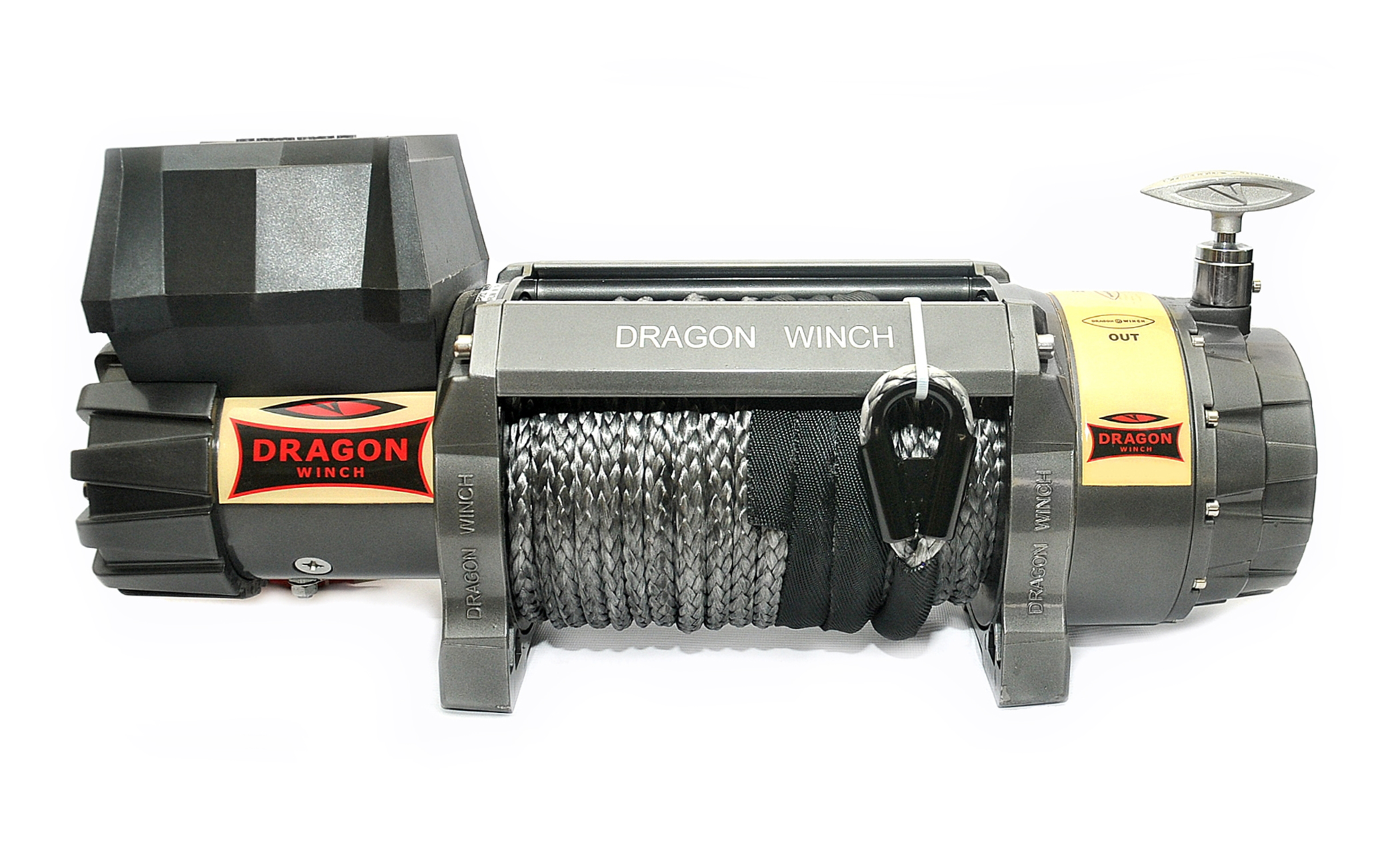

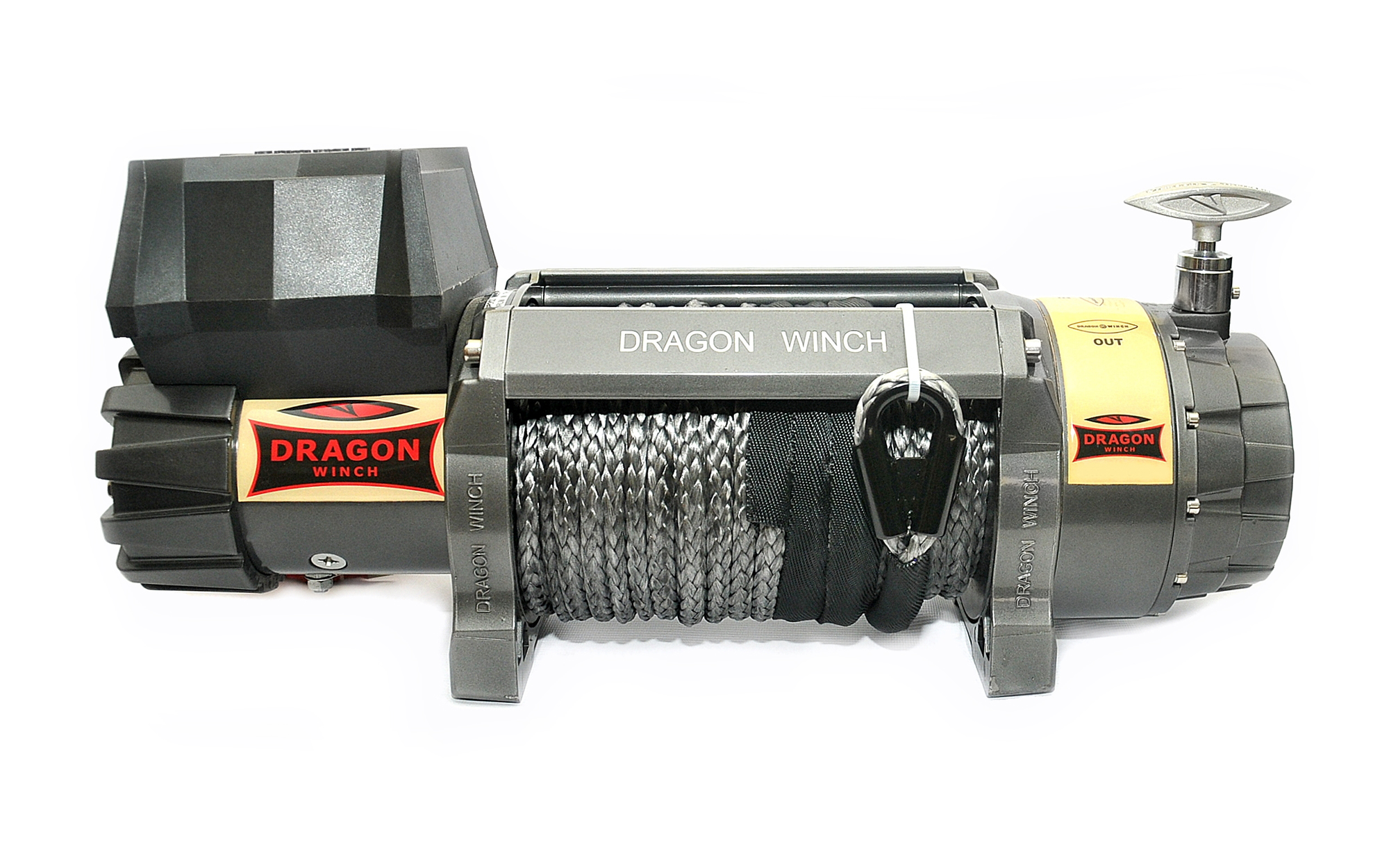

The Dragon Winch Highlander 12000 HD is suited for many different uses including Off-Road & 4x4s and Industrial & Construction. Durable and tough due to superior materials and construction methods, the Highlander 12000 HD provides a robust and reliable winching solution in all weather conditions and environments. It is capable of pulling upto 12,000 lb / 5,443 kg / 5.4 t. The Highlander 12000 HD comes with a 26m Synthetic Rope with Clevis Hook fed through an Aluminium Fairlead, which are all included. The winch is controlled with a Wired & Wireless Controller. The Highlander 12000 HD comes in 12v and 24v options. The winch comes with a two-year return-to-base warranty.

Trade Price
£545.95 (inc. vat) £454.96 (ex. vat)

Product CodeProduct NameVoltagePulling RateRope LengthOptions
00376Highlander 12000 HD with Synthetic Rope & Aluminium Fairlead12 v12,000 lbs28 mAluminium Fairlead
00377Highlander 12000 HD with Synthetic Rope & Aluminium Fairlead24 v12,000 lbs28 mAluminium Fairlead
Key Features
Line Capacity12,000lbs (5,443kg)Line Pull - No Load9.6 m/min (30 Amps)Unit Dimensions w/d/h (mm)599mm x 175mm x 255mm
Line26m of 10mm Synthetic Rope with Clevis HookLine Pull - Full Load2.4 m/min (250 Amps)Unit Dimensions w/d/h (in)23.58in x 6.89in x 10.04in
MotorReversible 9 hp (6.71 kW) 12/24v Electric Motor, Powers In & OutPower SupplyElectrical (Battery)Unit Dimensions w/d/h (in)23.58in x 6.89in x 10.04in
Gearbox3 Stage PlanetaryVoltage (v)12/24vMounting Screw Spacing (mm)254mm x 114mm
Reduction Ratio273:1Horsepower (hp)9hpMounting Screw Spacing (in)10in x 4.49in
Control OptionsWired & Wireless ControllersBraking SystemDynamicShipping Weight47kg
Warranty2 Year Return to BaseLine ManagementAluminium Fairlead
Pack Includes
  • x1 Synthetic Rope
  • x1 Clevis Hook
  • x1 Aluminium Fairlead
  • x1 Wired Hand Control
  • x1 Wireless Controller
  • x1 Wireless Controller Batteries (23A)
  • x1 Mounting Screws
  • x1 Control Box
  • x1 Power Cable
  • x1 Instruction Manual
Suggested Uses
  • Off-Road & 4x4s
  • Industrial & Construction
