Home / Online Store / Electrical Winches / Highlander 4500 HDL with Synthetic Rope

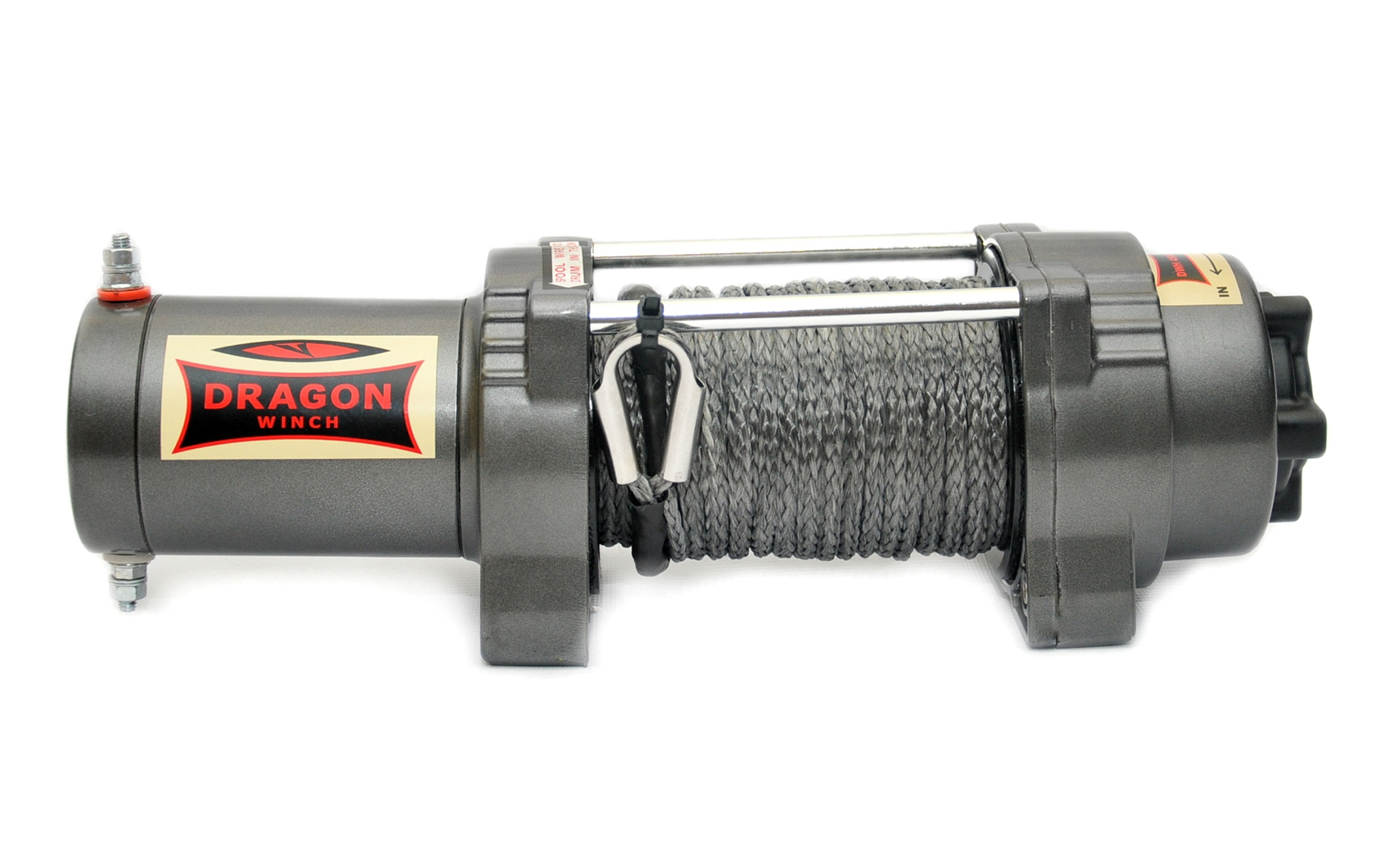

The Dragon Winch Highlander 4500 HDL with synthetic rope is ideally suited for medium-large ATVs and UTVs and is capable of pulling up to 4,500 lb / 2,041 kg / 2.0 t. Designed with a stronger motor, high-quality gearbox and a unique construction for harsh operating conditions, the Highlander 4500 HDL with synthetic rope guarantees the highest level of reliability and safety.

Trade Price
£310.95 (inc. vat) £259.13 (ex. vat)

Product CodeProduct NameVoltagePulling RateRope LengthOptions
00381Highlander 4500 HDL with Synthetic Rope & Aluminium Fairlead12 v4,500 lbs (2,041 kg)15 mAluminium Fairlead
Key Features
Line Capacity4,500lbs (2,041kg)Line Pull - No Load9.4 m/min (27.5 Amps)Unit Dimensions w/d/h (mm)378mm x 114mm x 120mm
Line15m of 6mm Synthetic Rope with Clevis HookLine Pull - Full Load2.5 m/min (176 Amps)Unit Dimensions w/d/h (in)14.88in x 4.49in x 4.72in
MotorReversible 1.9 hp (1.42 kW) 12v Electric Motor, Powers In & OutPower SupplyElectrical (Battery)Unit Dimensions w/d/h (in)14.88in x 4.49in x 4.72in
Gearbox3 Stage PlanetaryVoltage (v)12vMounting Screw Spacing (mm)169mm x 114mm
Reduction Ratio136:1Horsepower (hp)1.9hpMounting Screw Spacing (in)6.65in x 4.49in
Control OptionsSteering Wheel Switch & Wireless Remote ControlBraking SystemAutomaticShipping Weight12.7kg
Warranty2 Year Return to BaseLine ManagementAluminium Fairlead
Pack Includes
  • x1 Synthetic Rope
  • x1 Clevis Hook
  • x1 Aluminium Fairlead
  • x1 Wireless Controller
  • x1 Wireless Controller Batteries (23A)
  • x1 Steering Wheel Switch
  • x1 Mounting Screws
  • x1 Control Box
  • x1 Power Cable
  • x1 Relay
  • x1 Instruction Manual
Suggested Uses
  • ATVs & Quads
  • UTVs
  • Boats & Marine
