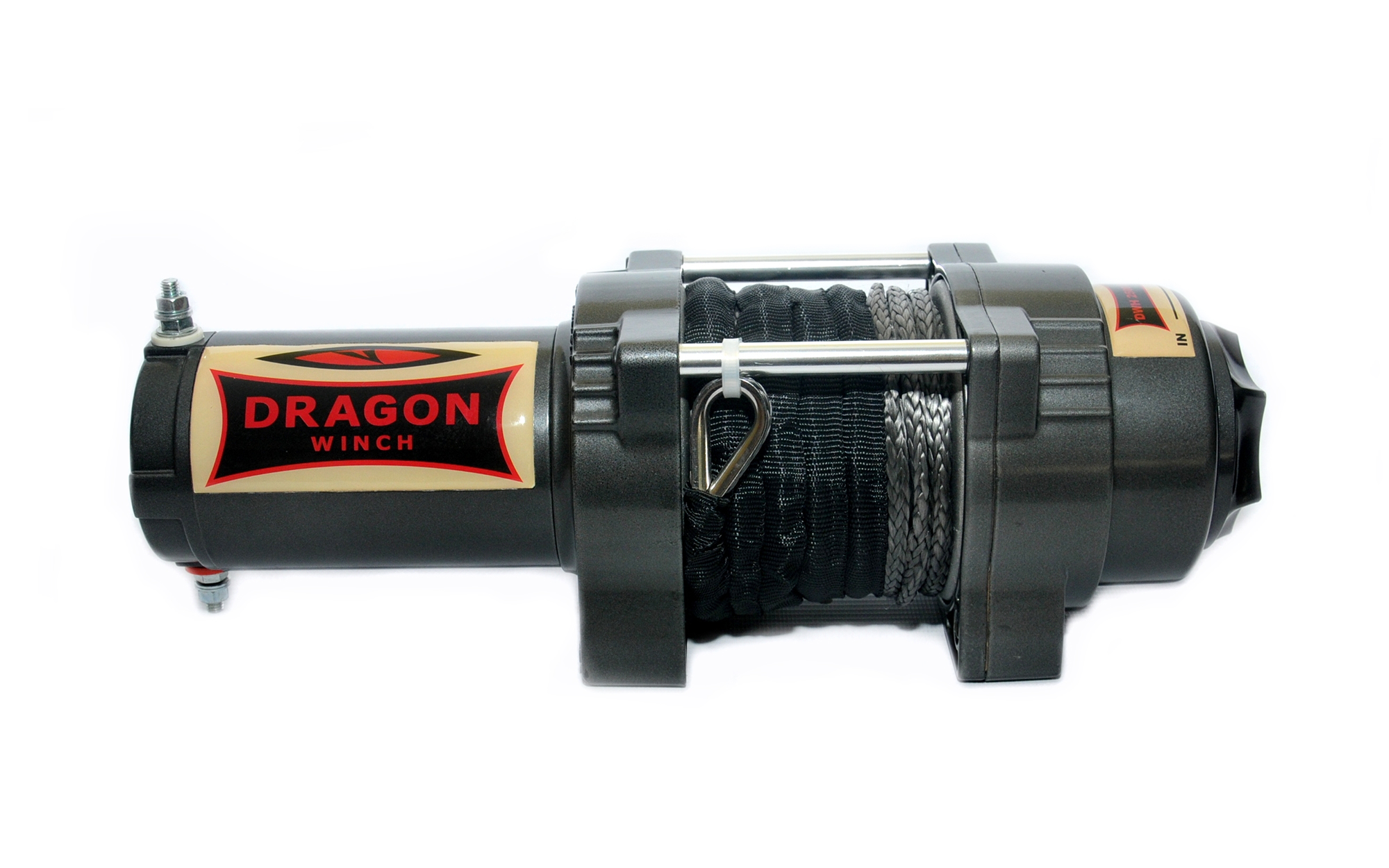

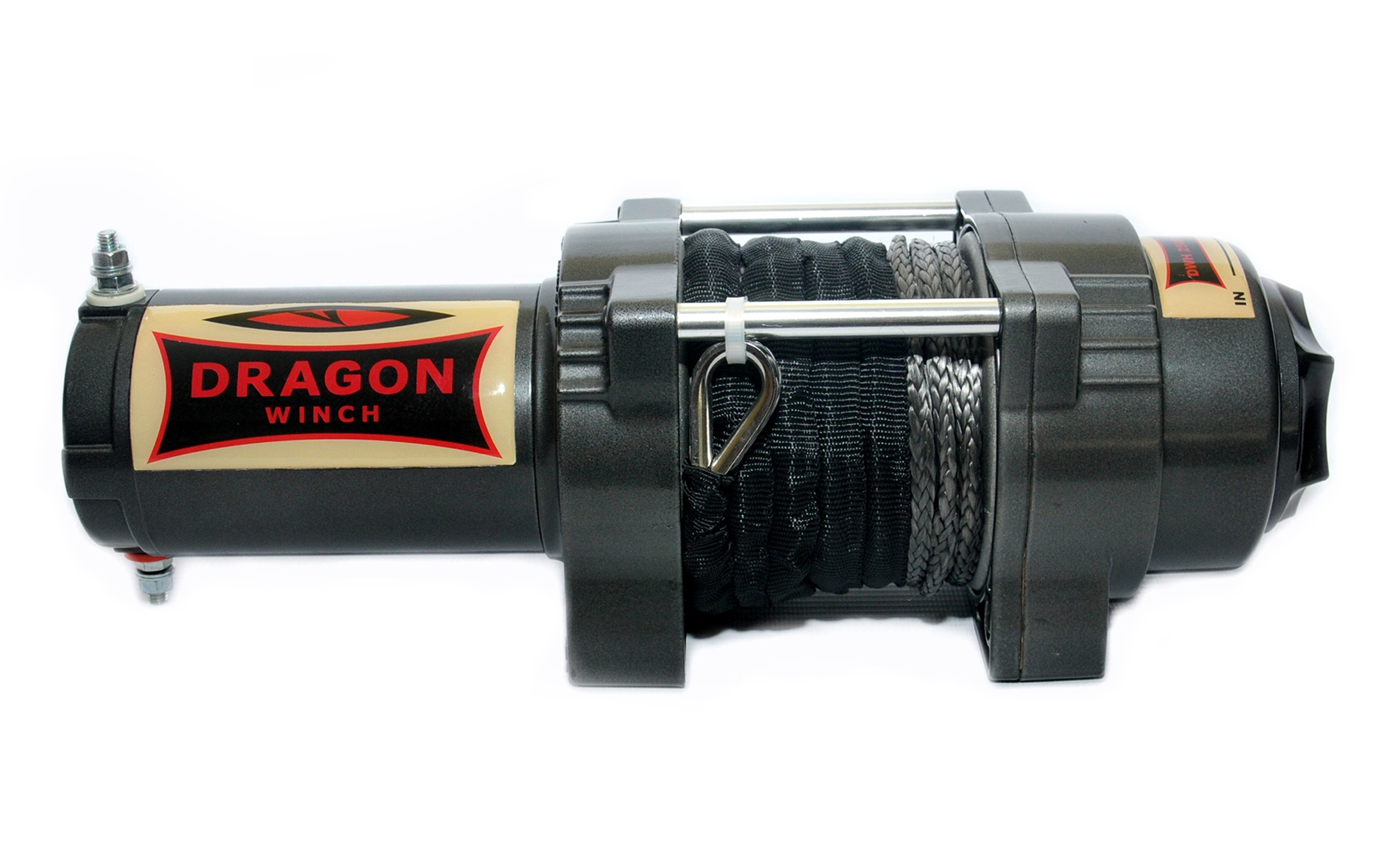

Highlander 3000 HD with Synthetic Rope
The Dragon Winch Highlander 3000 HD with synthetic rope is ideally suited for small to medium ATVs and UTVs as it's capable of pulling up to 3,000 lb / 1,361 kg / 1.4 t. Designed with a stronger motor, heavy-duty gearbox for harsh operating conditions, the Highlander 3000 HD with synthetic rope guarantees the highest level of reliability and safety.
Trade Price
£240.99
(inc. vat)
£200.83
(ex. vat)
| Product Code | Product Name | Voltage | Pulling Rate | Rope Length | Options | |
|---|---|---|---|---|---|---|
| 00387 | Highlander 3000 HD with Synthetic Rope & Aluminium Fairlead | 12 v | 3,000 lbs (1,360 kg) | 15 m | Aluminium Fairlead |
|
Key Features
| Line Capacity | 3,000lbs (1,360kg) | Line Pull - No Load | 4.7 m/min (20 Amps) | Unit Dimensions w/d/h (mm) | 347mm x 114mm x 120mm |
|---|---|---|---|---|---|
| Line | 15m of 6mm Synthetic Rope with Clevis Hook | Line Pull - Full Load | 2.5 m/min (130 Amps) | Unit Dimensions w/d/h (in) | 13.66in x 4.49in x 4.72in |
| Motor | Reversible 1.6 hp (1.19 kW) 12v Electric Motor, Powers In & Out | Power Supply | Electrical (Battery) | Unit Dimensions w/d/h (in) | 13.66in x 4.49in x 4.72in |
| Gearbox | 3 Stage Planetary | Voltage (v) | 12v | Mounting Screw Spacing (mm) | 169mm x 114mm |
| Reduction Ratio | 136:1 | Horsepower (hp) | 1.6hp | Mounting Screw Spacing (in) | 6.65in x 4.49in |
| Control Options | Steering Wheel Switch & Wireless Remote Control | Braking System | Automatic | Shipping Weight | 10kg |
| Warranty | 2 Year Return to Base | Line Management | Aluminium Fairlead |
