Home / Online Store / 15,001 - 20,000 lb / Truck 16800 HD

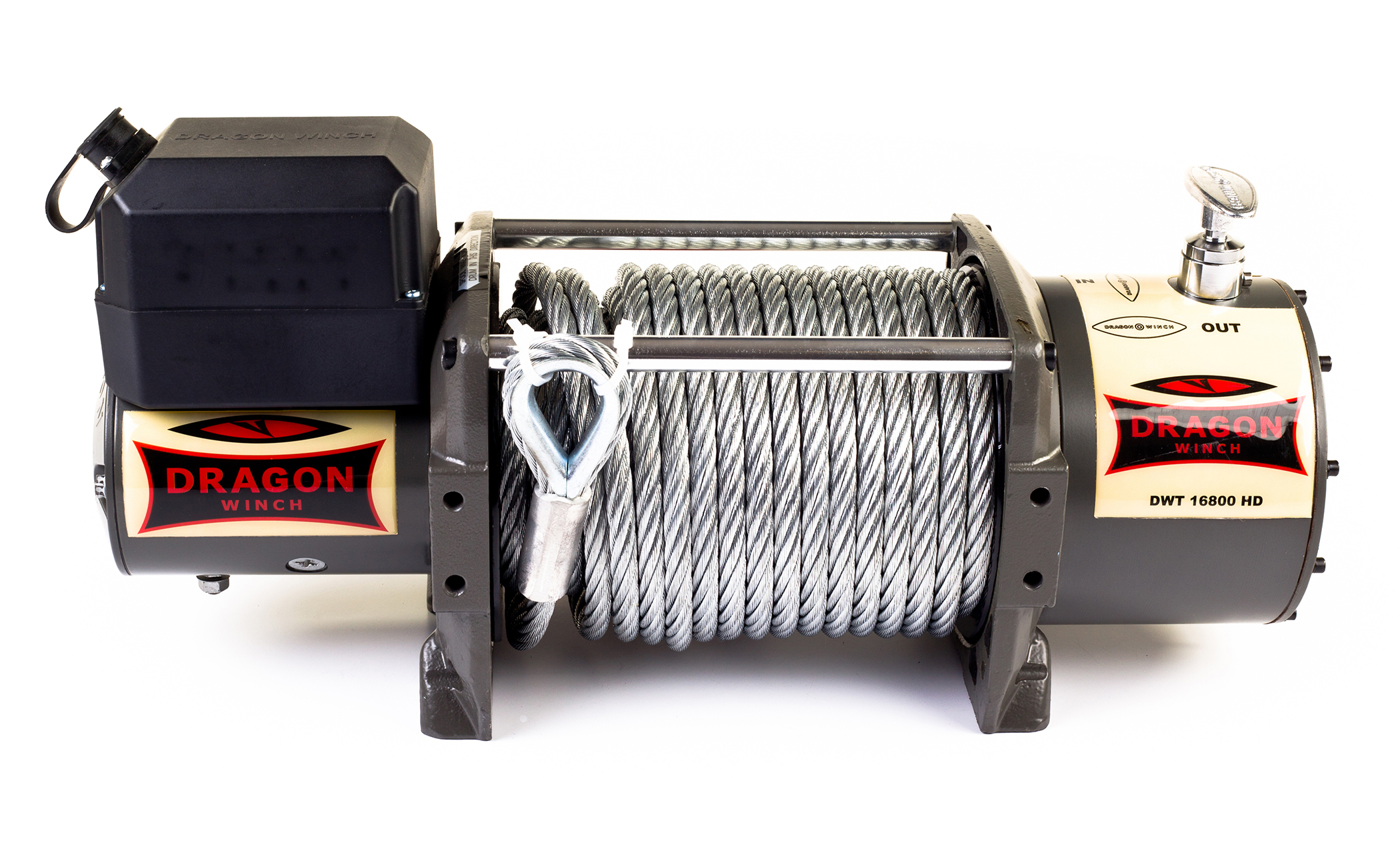

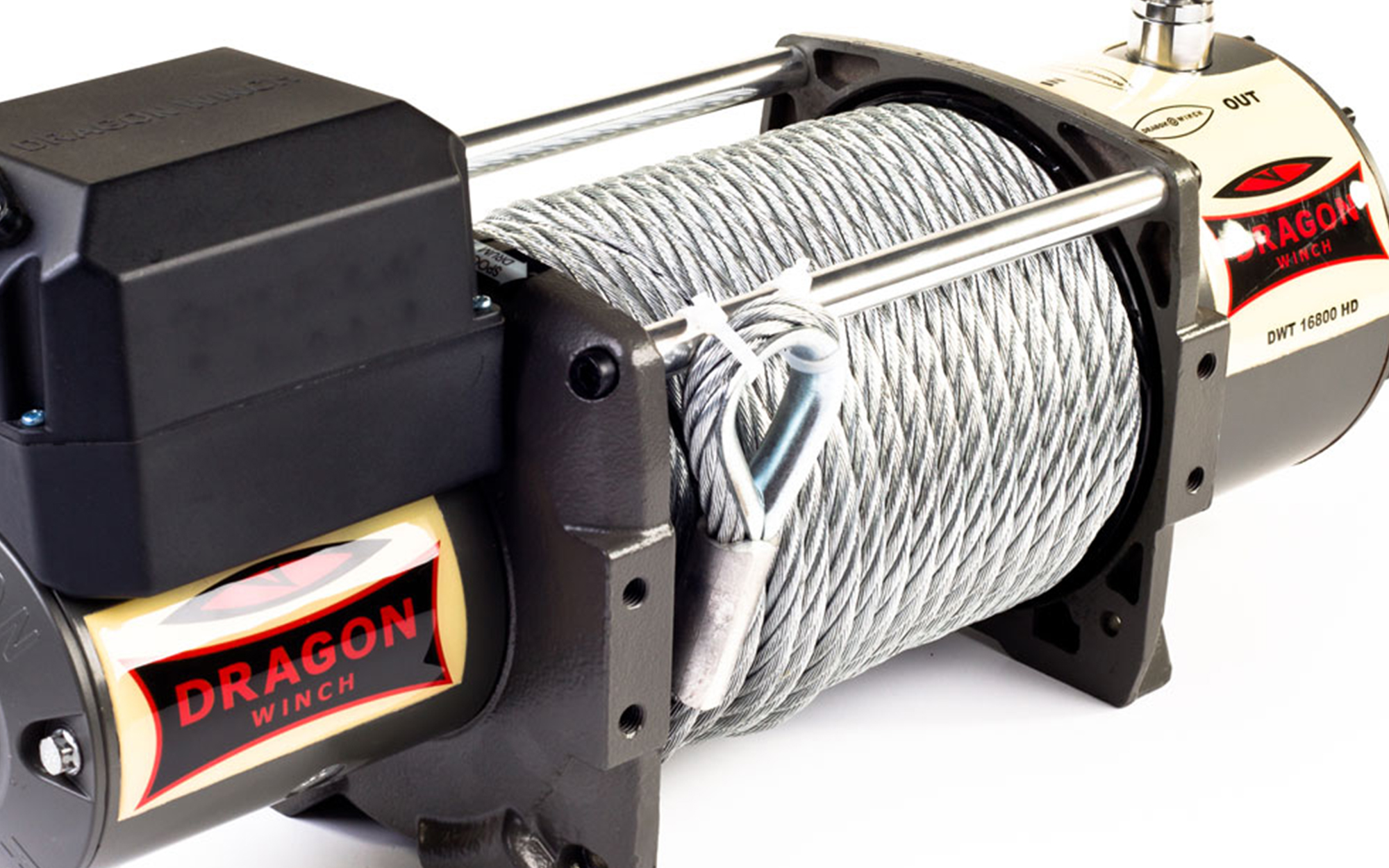

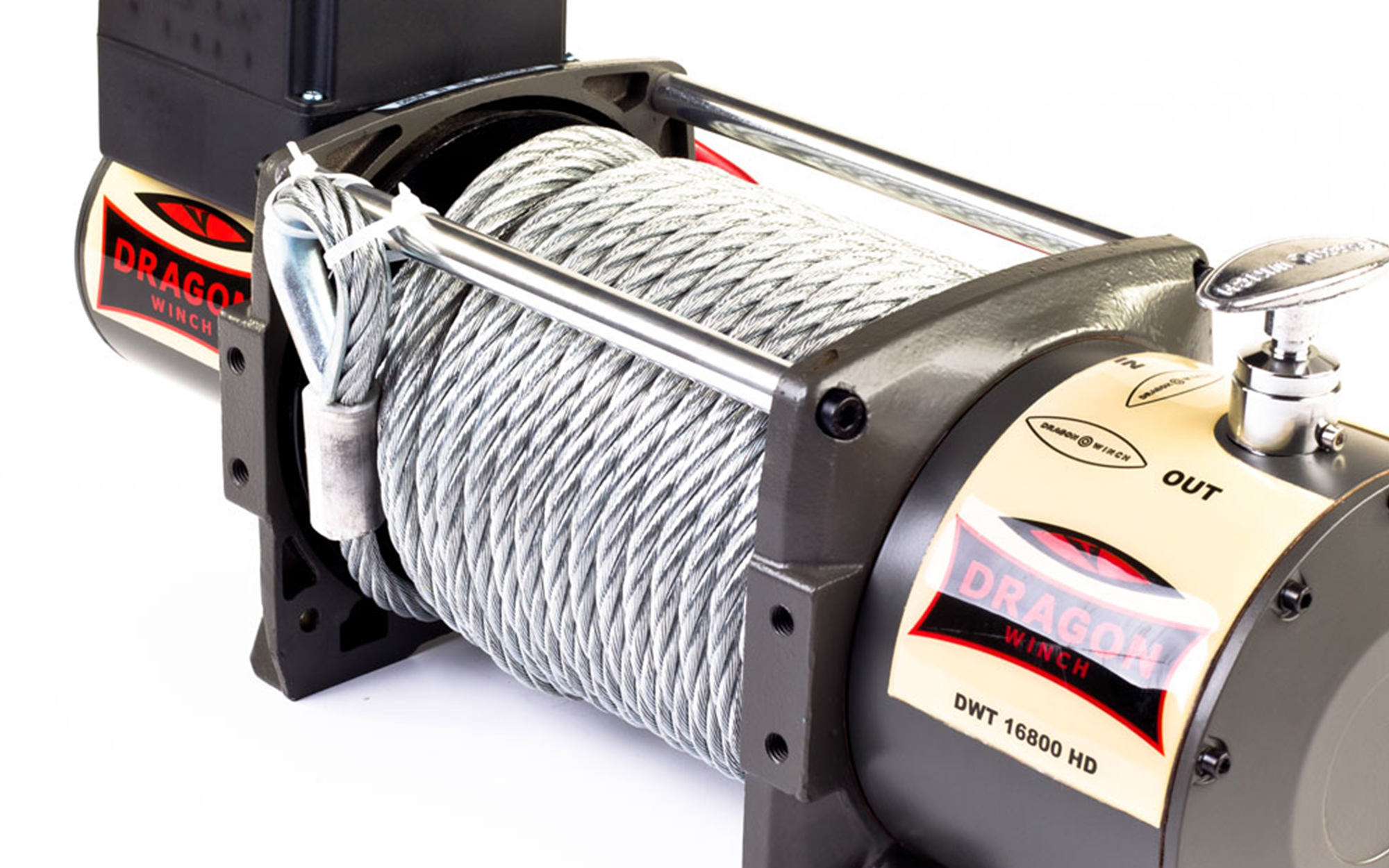

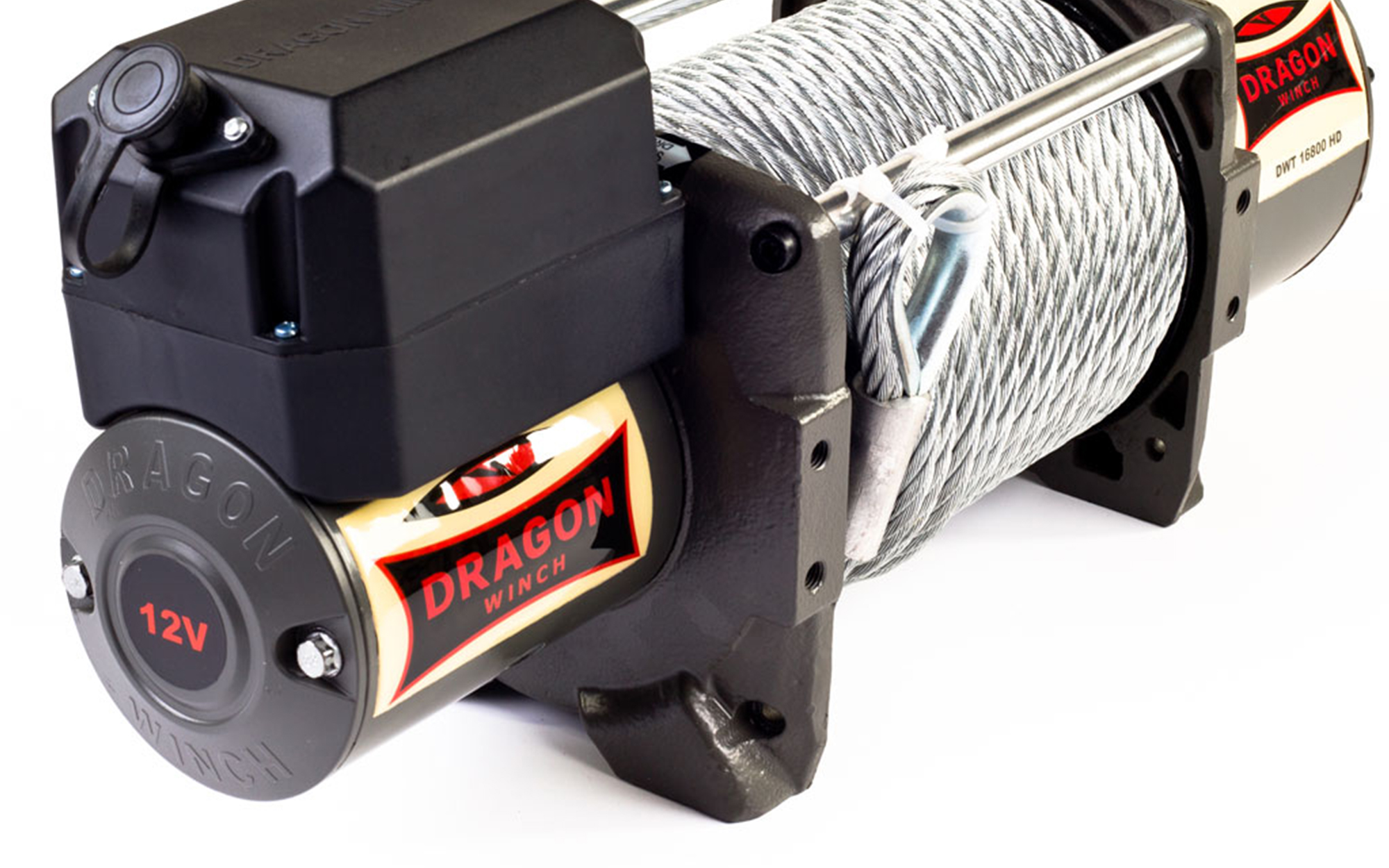

The Dragon Winch Truck 16800 HD is ideally suited for industrial vehicles and is capable of pulling up to 16800lbs (7620kg). Designed to be super-strong and highly durable the Truck 16800 HD is designed to operate in the harshest working conditions.

Trade Price
£575.95 (inc. vat) £479.96 (ex. vat)

Product CodeProduct NameVoltagePulling RateRope Length
00033Truck 16800 HD12 v16,800 lbs (7,620 kg)26 m
+-
00338Truck 16800 HD24 v16,800 lbs (7,620 kg)26 m
+-
Key Features
Line Capacity16,800lbs (7,620kg)Line Pull - No Load5.5 m/min (70 Amps)Unit Dimensions w/d/h (mm)560mm x 196mm x 267mm
Line26m of 11.6mm Steel Cable with Clevis HookLine Pull - Full Load1.1 m/min (470 Amps)Unit Dimensions w/d/h (in)22.05in x 7.72in x 10.51in
MotorReversible 7.8 hp (5.82 kW) 12v / 24v Electric Motor, Powers In & OutPower SupplyElectrical (Battery)Unit Dimensions w/d/h (in)22.05in x 7.72in x 10.51in
Gearbox3 Stage PlanetaryVoltage (v)12/24vMounting Screw Spacing (mm)254mm x 114mm
Reduction Ratio358:1Horsepower (hp)7.8hpMounting Screw Spacing (in)10in x 4.49in
Control OptionsWired & Wireless ControllersBraking SystemDynamicShipping Weight54kg
Warranty2 Year Return to BaseLine ManagementRoller Guides
Pack Includes
  • x1 Steel Cable
  • x1 Clevis Hook
  • x1 Roller Guides
  • x1 Wired Hand Control
  • x1 Wireless Controller
  • x1 Wireless Controller Batteries (23A)
  • x1 Mounting Screws
  • x1 Control Box
  • x1 Power Cable
  • x1 Instruction Manual
Suggested Uses
  • Recovery Vehicles
  • Industrial & Construction
  • Forestry
  • Trailers
