Home / Online Store / Line Length 6m - 10m / Maverick 2500 ST with Yellow Remote

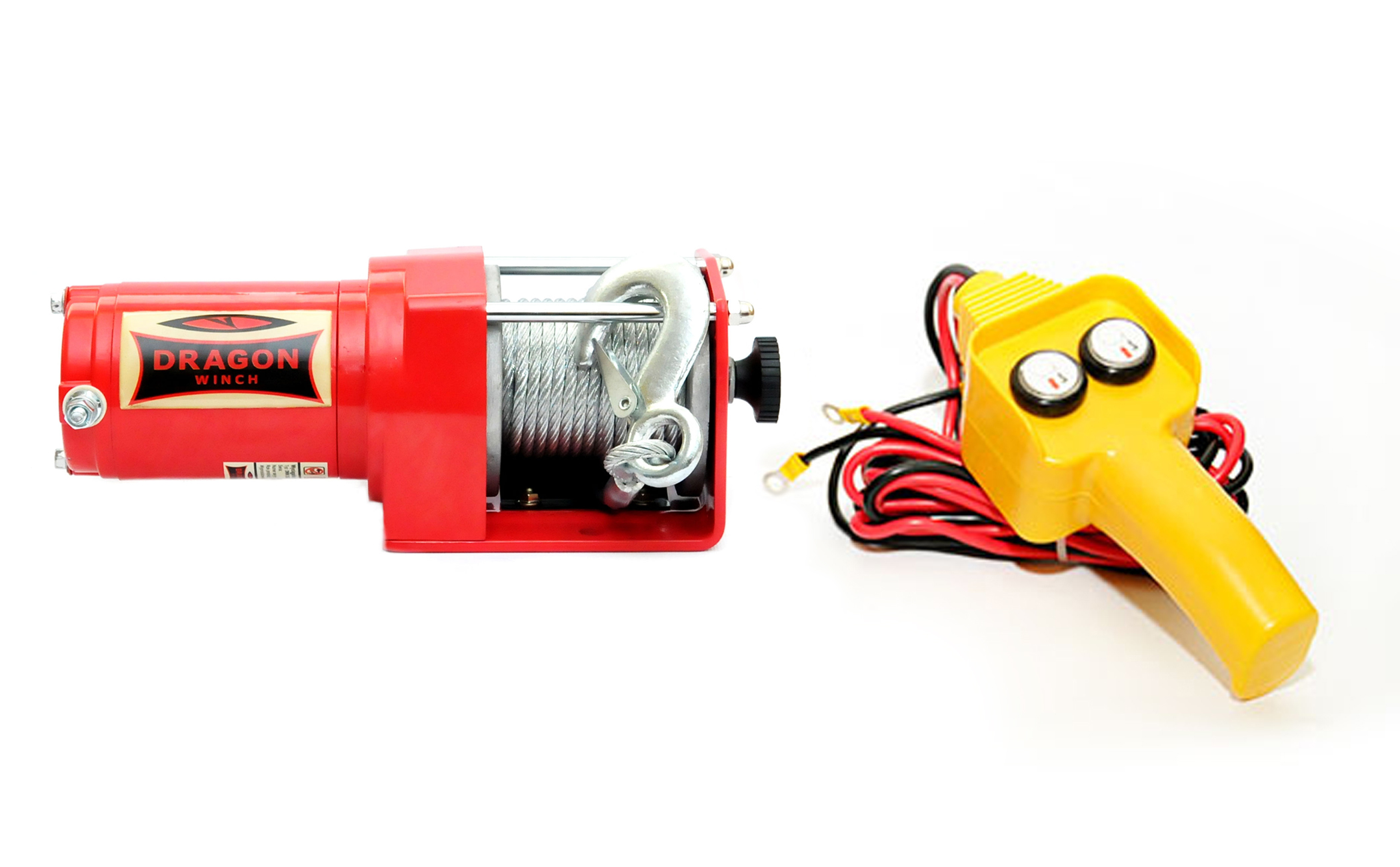

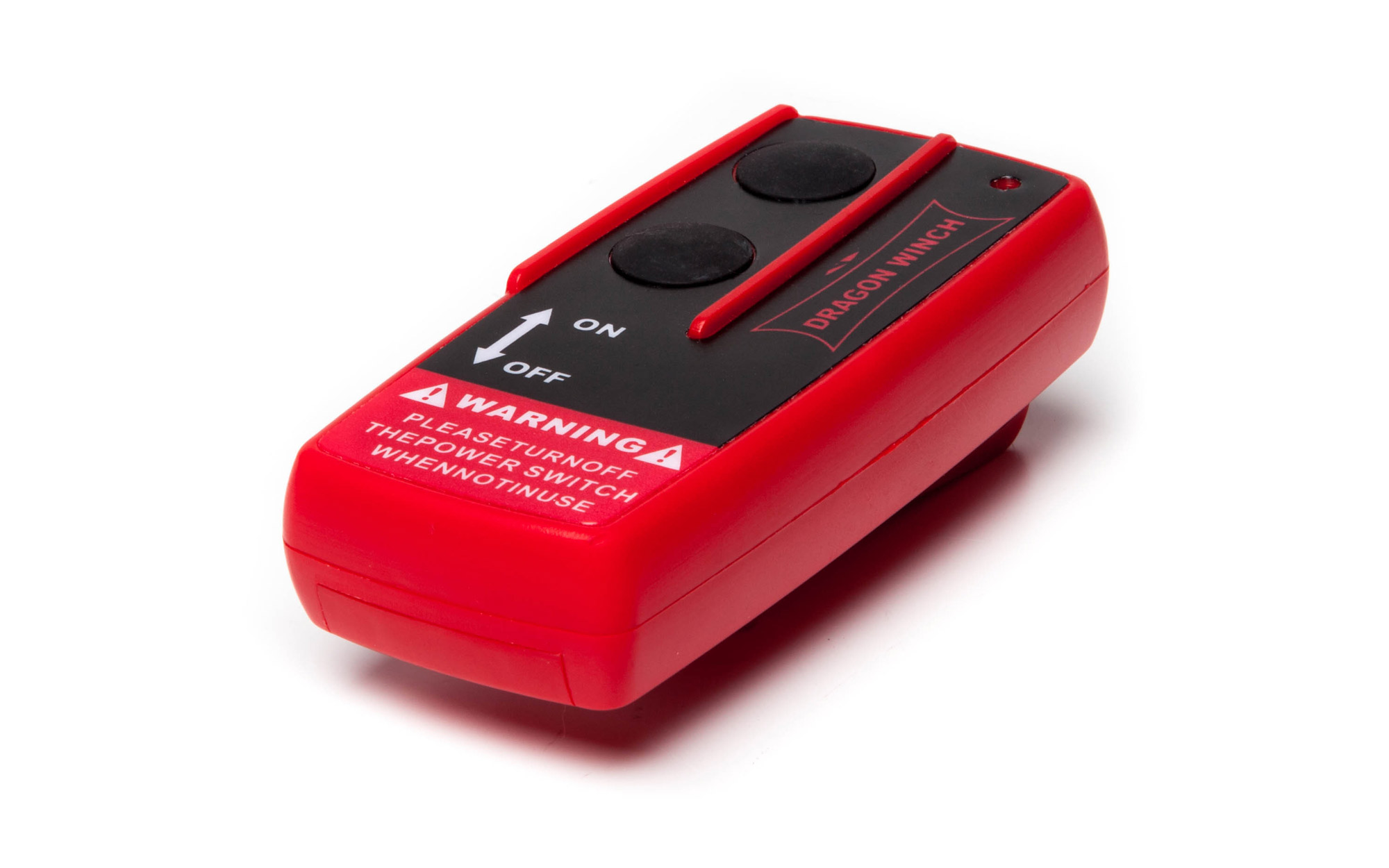

The Dragon Winch Maverick 2500 ST is suited for many different uses including ATVs & Quads, UTVs and Trailers. Durable and tough due to superior materials and construction methods, the Maverick 2500 ST provides a robust and reliable winching solution in all weather conditions and environments. It is capable of pulling upto 2,500 lb / 1,134 kg / 1.1 t. The Maverick 2500 ST comes with a 10m Steel Cable with Clevis Hook fed through Roller Guides, which are all included. The winch is controlled with a Steering Wheel Switch & Wireless Remote Control. The Maverick 2500 ST comes in a 12v option only. The winch comes with a two-year return-to-base warranty.

Trade Price
£94.99 (inc. vat) £79.16 (ex. vat)

Product CodeProduct NameVoltagePulling RateRope Length
00015Maverick 2500 ST with Remote12 v2,500 lbs (1,133 kg)10 m
+-
Key Features
Line Capacity2,500lbs (1,133kg)Line Pull - No Load3.2 m/min (20 Amps)Unit Dimensions w/d/h (mm)285mm x 103mm x 105mm
Line10m of 4.5mm Steel Cable with Clevis HookLine Pull - Full Load0.8 m/min (110 Amps)Unit Dimensions w/d/h (in)11.22in x 4.06in x 4.13in
MotorReversible 0.9 hp (0.67 kW) 12v Electric Motor, Powers In & OutPower SupplyElectrical (Battery)Unit Dimensions w/d/h (in)11.22in x 4.06in x 4.13in
Gearbox1 Stage PlanetaryVoltage (v)12vMounting Screw Spacing (mm)80mm
Reduction Ratio153:1Horsepower (hp)0.9hpMounting Screw Spacing (in)3.15in

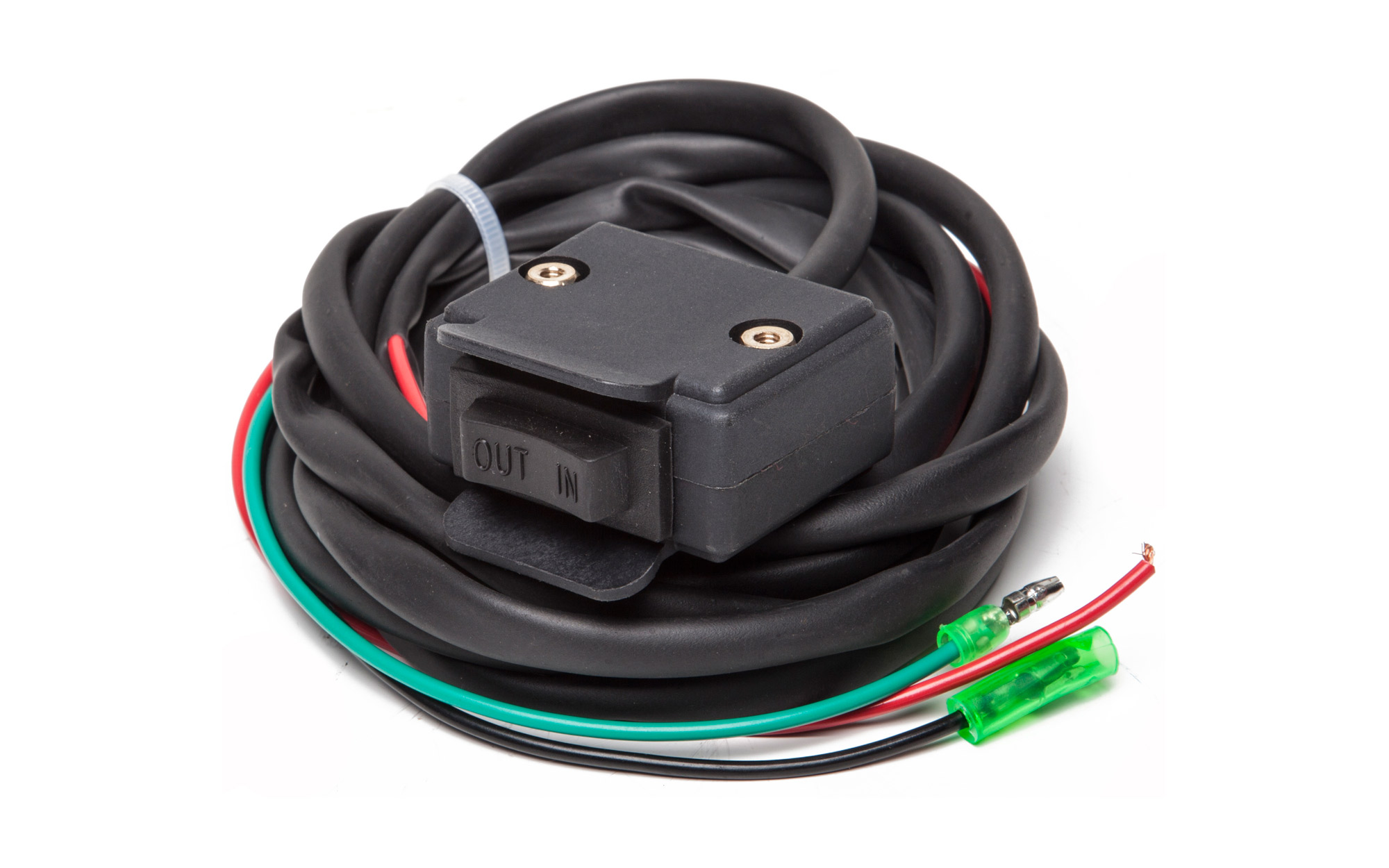

Control OptionsSteering Wheel Switch & Wireless Remote ControlBraking SystemSelfbrakeShipping Weight6kg
Warranty2 Year Return to BaseLine ManagementRoller Guides
Pack Includes
  • x1 Steel Cable

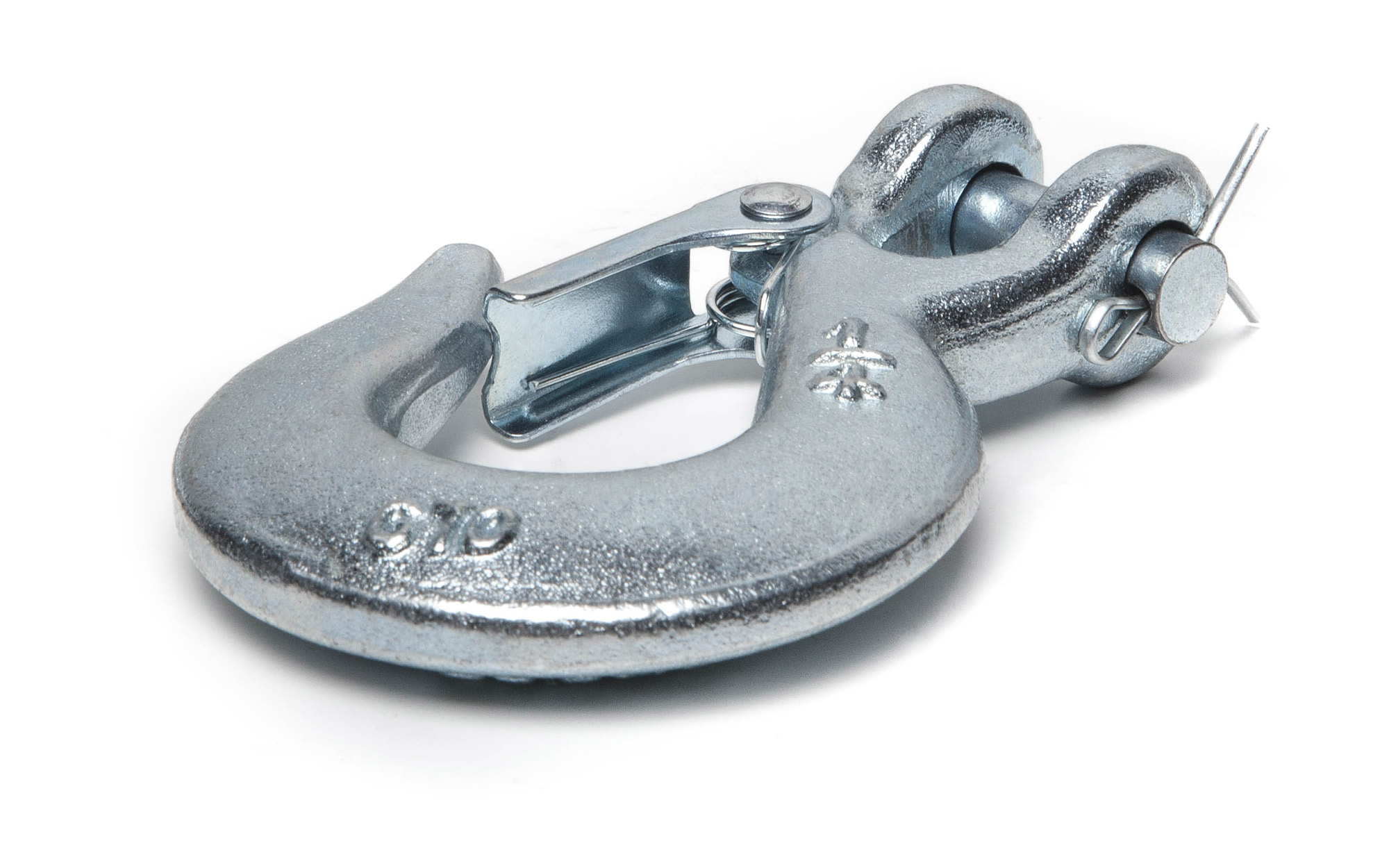

  • x1 Clevis Hook

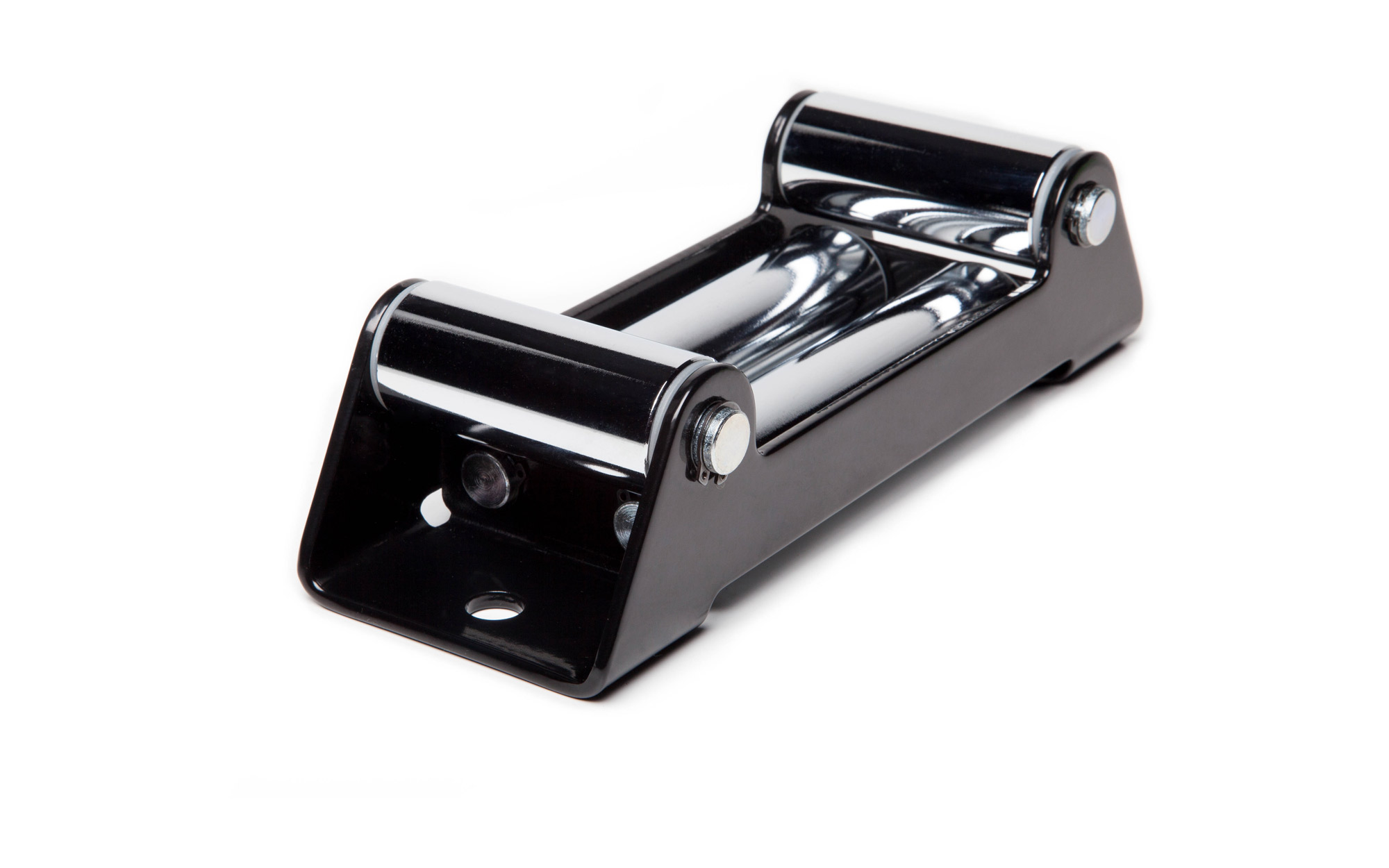

  • x1 Roller Guides

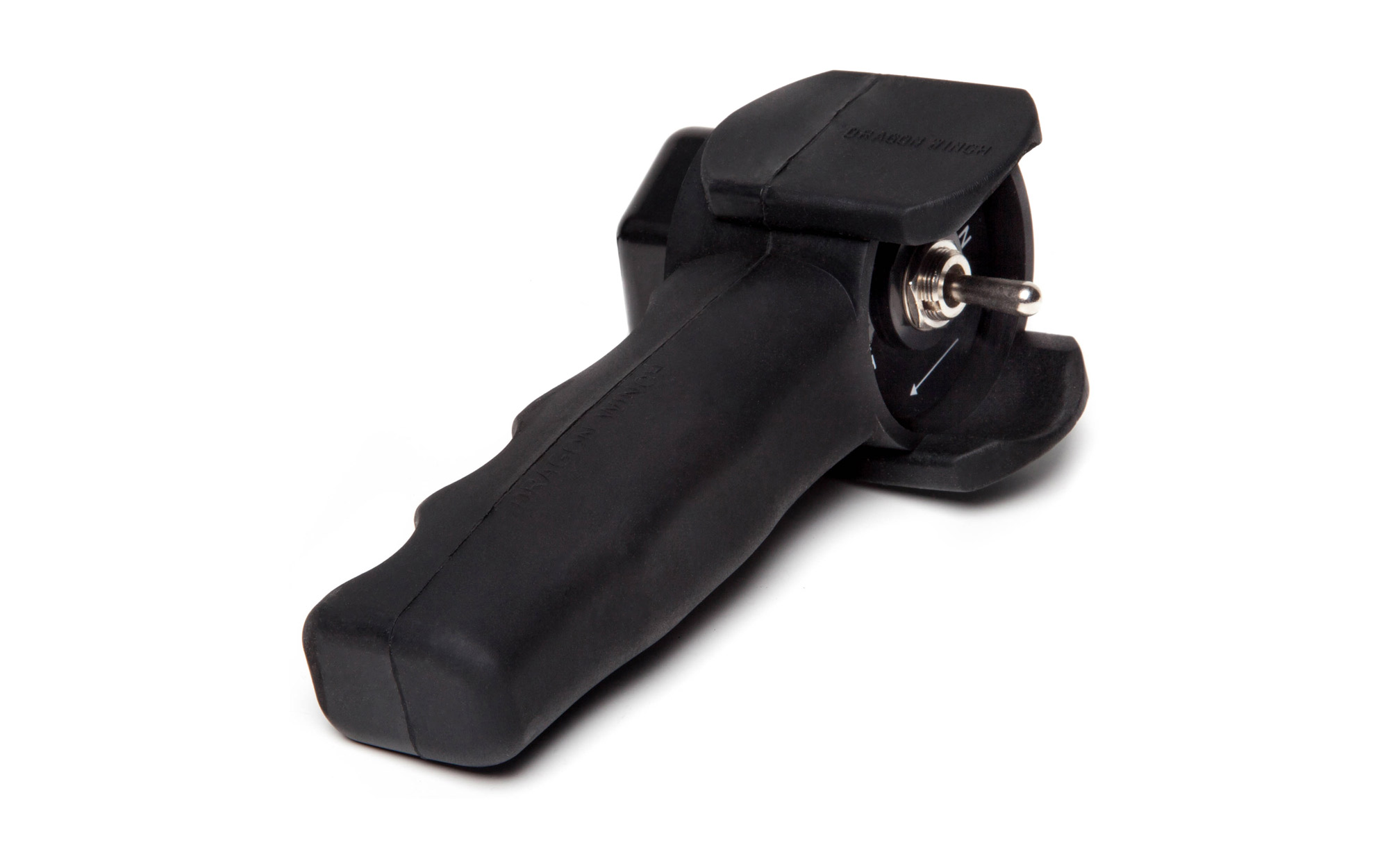

  • x1 Yellow Wired Hand Control

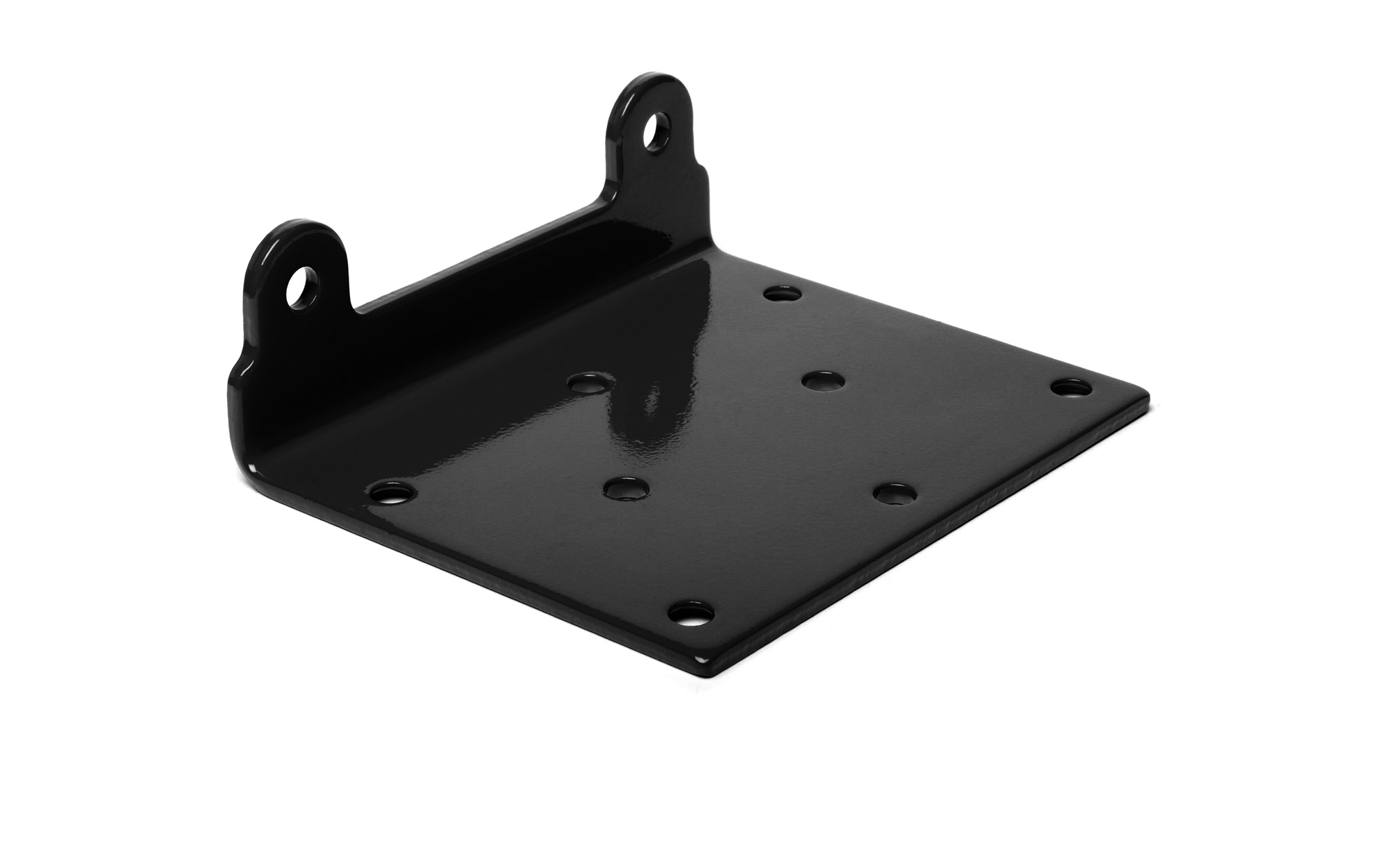

  • x1 Mounting Plate

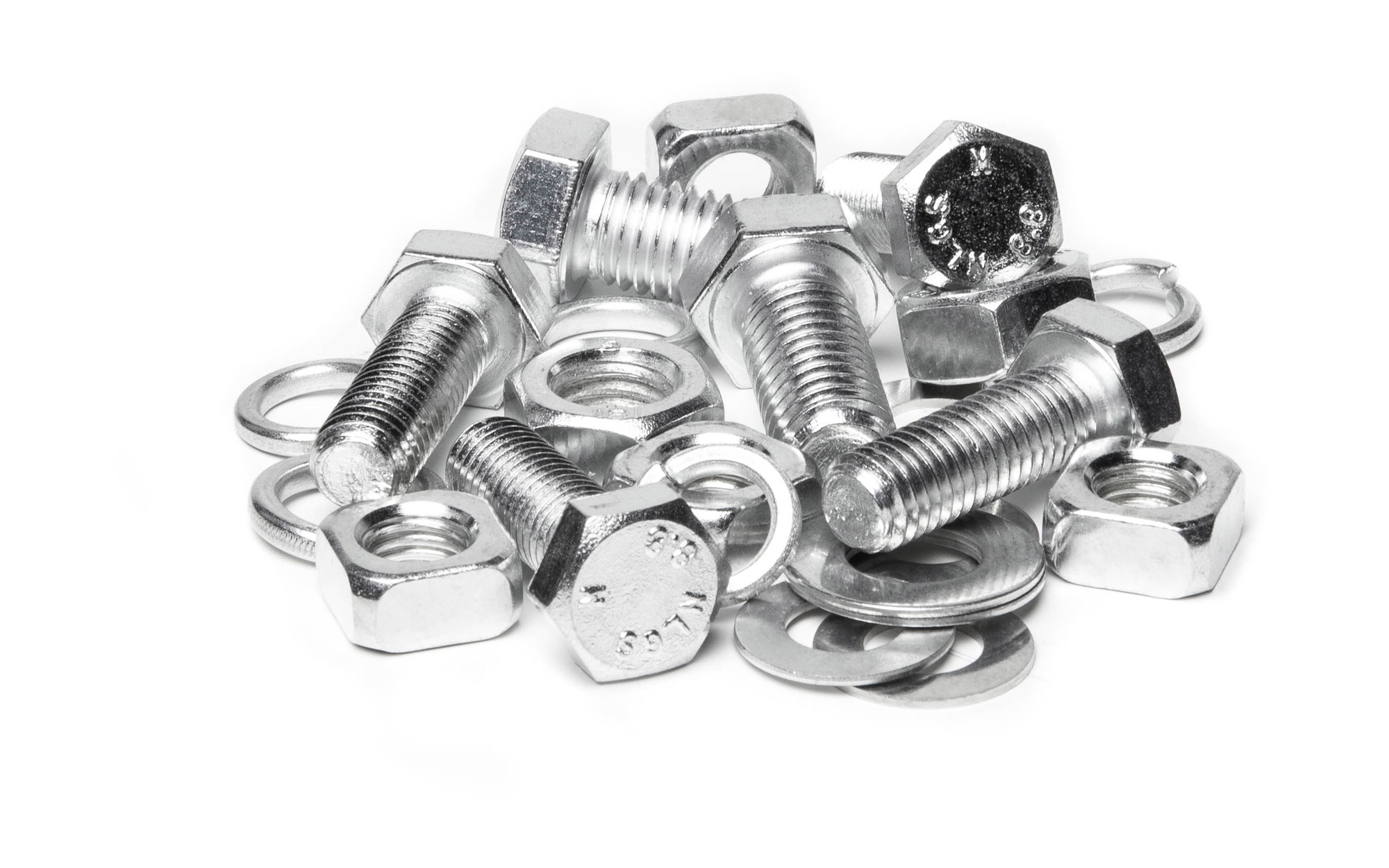

  • x1 Mounting Screws
  • x1 Instruction Manual
Suggested Uses
  • ATVs & Quads
  • UTVs
  • Trailers
