Home / Online Store / Self Braking / Maverick 3500 ST

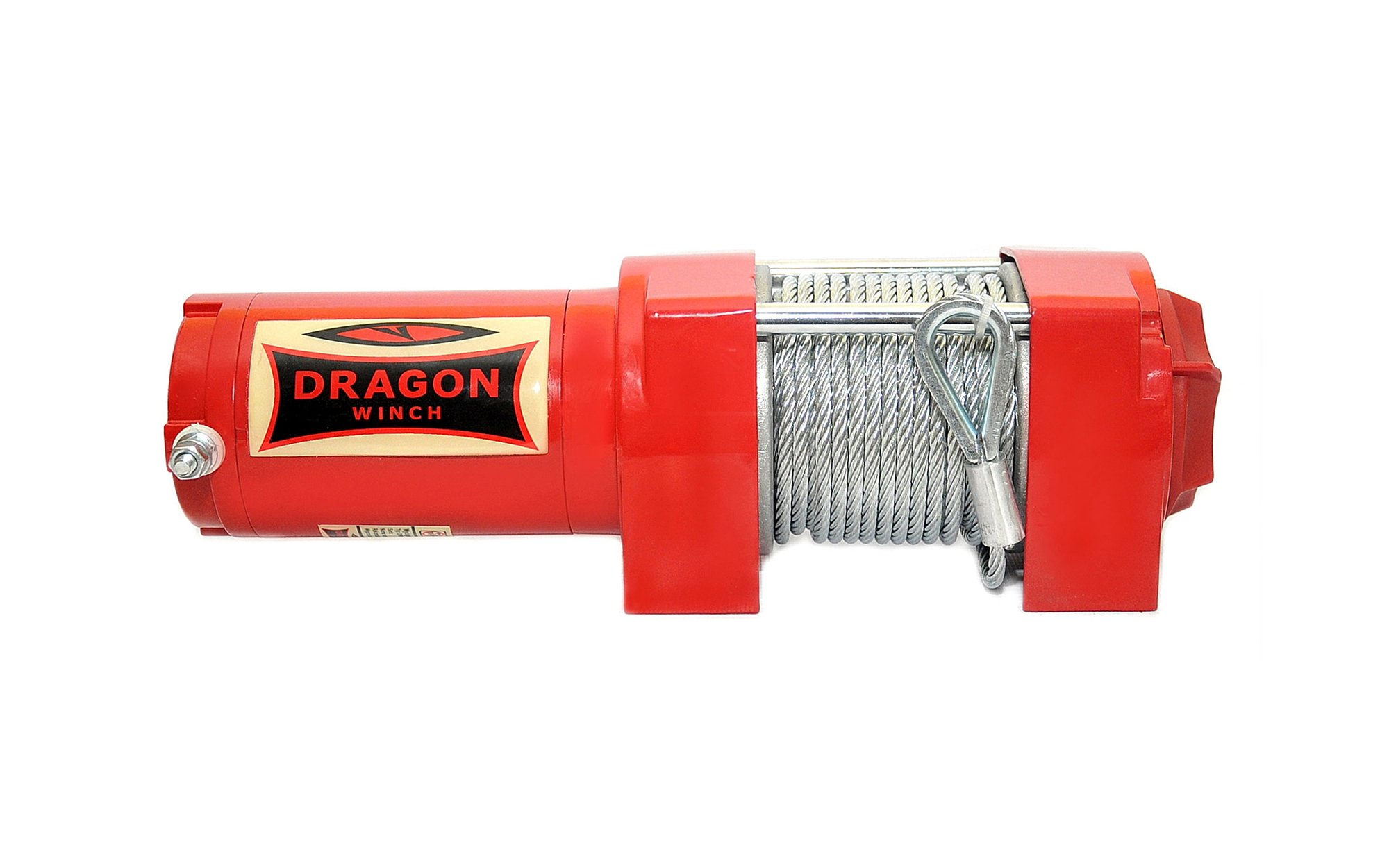

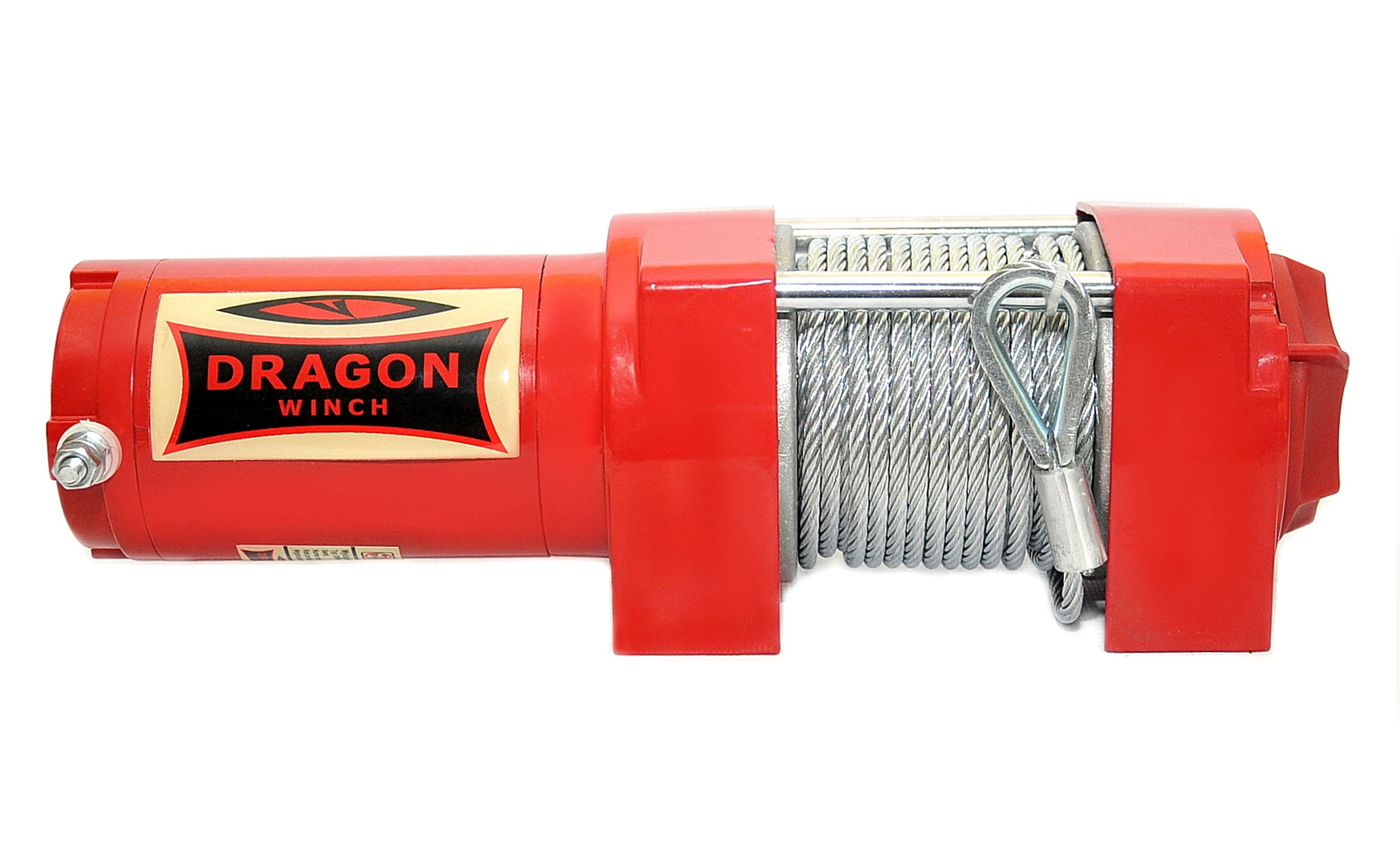

The Maverick 3500 ST is the perfect choice when taking your Quad Bike on more demanding terrain. With only a 12V demand on your battery it ensures you can keep going even with the original manufacturers battery. With less protection coming from the body of the Quad Bike itself this winch comes with a wireless remote control so you can winch safely from behind.

Trade Price
£127.99 (inc. vat) £106.66 (ex. vat)
Product CodeProduct NameVoltagePulling RateRope Length
00013Maverick 3500 ST12 v3,500 lbs (1,588 kg)10 m
+-
Key Features
Line Capacity3,500lbs (1,588kg)Line Pull - No Load4.7 m/min (30 Amps)Unit Dimensions w/d/h (mm)325mm x 105mm x 95mm
Line10m of 4.5mm Steel Cable with Clevis HookLine Pull - Full Load1.8 m/min (190 Amps)Unit Dimensions w/d/h (in)12.8in x 4.13in x 3.74in
MotorReversible 0.9 hp (0.67 kW) 12v Electric Motor, Powers In & OutPower SupplyElectrical (Battery)Unit Dimensions w/d/h (in)12.8in x 4.13in x 3.74in
Gearbox1 Stage PlanetaryVoltage (v)12vMounting Screw Spacing (mm)130mm x 80mm
Reduction Ratio153:1Horsepower (hp)0.9hpMounting Screw Spacing (in)5.1in x 3.1in
Control OptionsSteering Wheel Switch & Wireless Remote ControlBraking SystemSelfbrakeShipping Weight11kg
Warranty2 Year Return to BaseLine ManagementRoller Guides
Pack Includes
  • x1 Steel Cable
  • x1 Clevis Hook
  • x1 Roller Guides
  • x1 Wireless Controller
  • x1 Wireless Controller Batteries (23A)
  • x1 Steering Wheel Switch
  • x1 Mounting Plate
  • x1 Mounting Screws
  • x1 Control Box
  • x1 Power Cable
  • x1 Relay
  • x1 Instruction Manual
Suggested Uses
  • ATVs & Quads
  • UTVs
  • Trailers
Connection Diagram PNG873.07 kBDownload
Datasheet PNG873.07 kBDownload
