Home / Online Store / 5,001 - 10,000 lb / Maverick 10000 HD

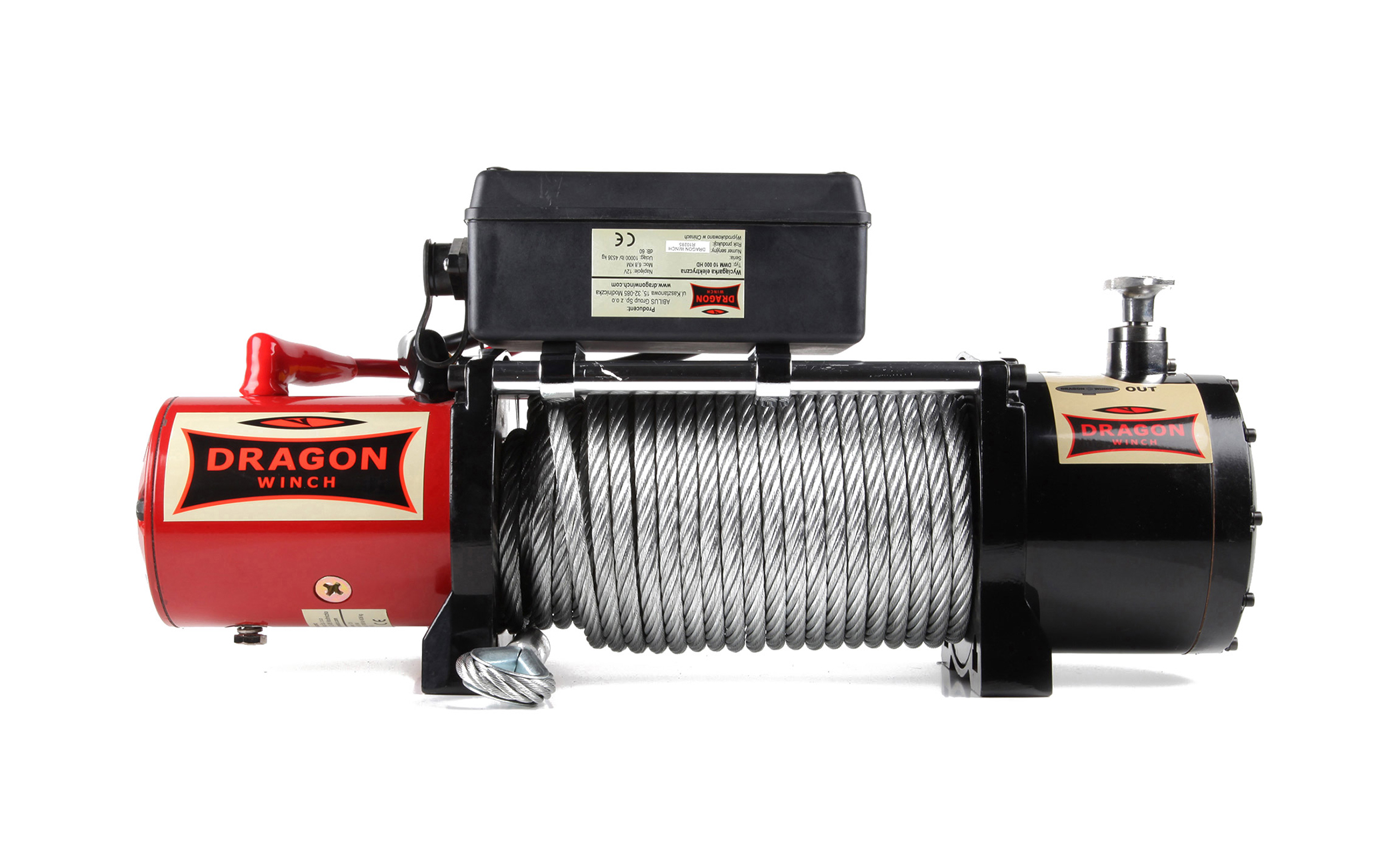

The Dragon Winch Maverick 10000 HD is ideally suited for medium-large off-road and industrial vehicles and is capable of pulling up to 10000lbs (4536kg). Proven to be durable and tough due to superior materials and construction methods, the Maverick 10000HD provides a durable and reliable winching solution.

Trade Price
£315.95 (inc. vat) £263.29 (ex. vat)

Product CodeProduct NameVoltagePulling RateRope LengthOptions
00009Maverick 10000 HD with Roller Guides12 v10,000 lb (4,536 kg)28 mRoller Guides
+-
Key Features
Line Capacity10,000lbs (4,536kg)Line Pull - No Load8 m/min (70 Amps)Unit Dimensions w/d/h (mm)535mm x 160mm x 245mm
Line28m of 8.4mm Steel Cable with Clevis HookLine Pull - Full Load2.5 m/min (435 Amps)Unit Dimensions w/d/h (in)21.06in x 6.3in x 9.65in
MotorReversible 6.8 hp (5.07 kW) 12v Electric Motor, Powers In & OutPower SupplyElectrical (Battery)Unit Dimensions w/d/h (in)21.06in x 6.3in x 9.65in
Gearbox3 Stage PlanetaryVoltage (v)12vMounting Screw Spacing (mm)254mm x 114mm
Reduction Ratio216:1Horsepower (hp)6.8hpMounting Screw Spacing (in)10in x 4.49in
Control OptionsWired & Wireless ControllersBraking SystemDynamicShipping Weight42kg
Warranty2 Year Return to BaseLine ManagementRoller Guides
Pack Includes

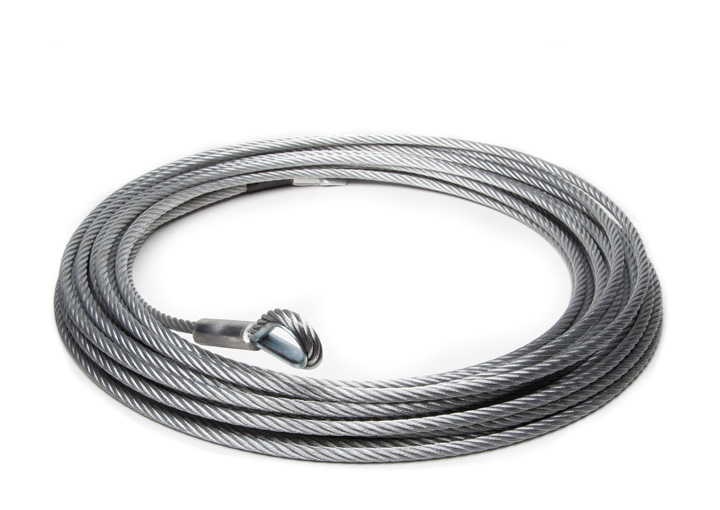

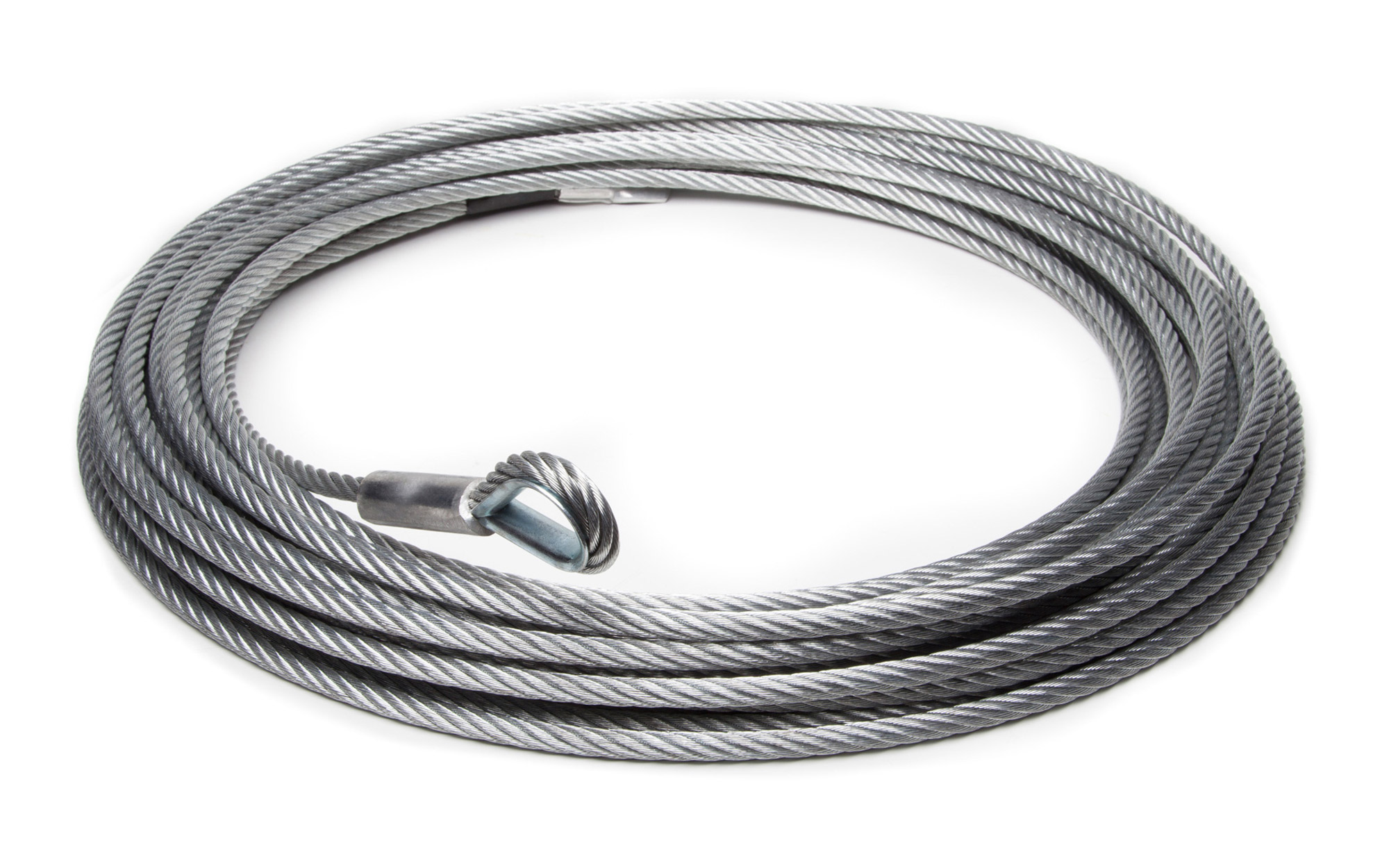

  • x1 Steel Cable

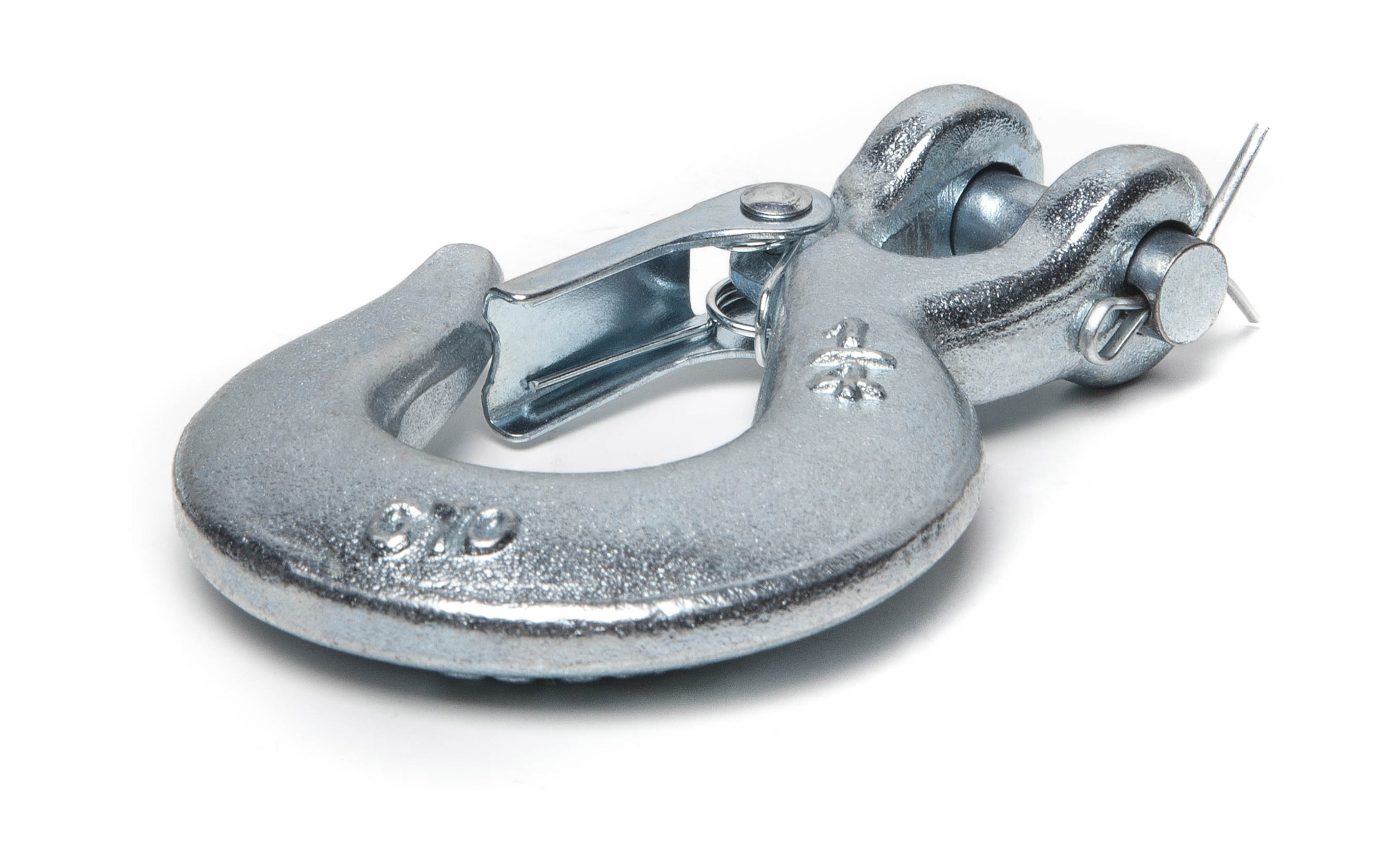

  • x1 Clevis Hook

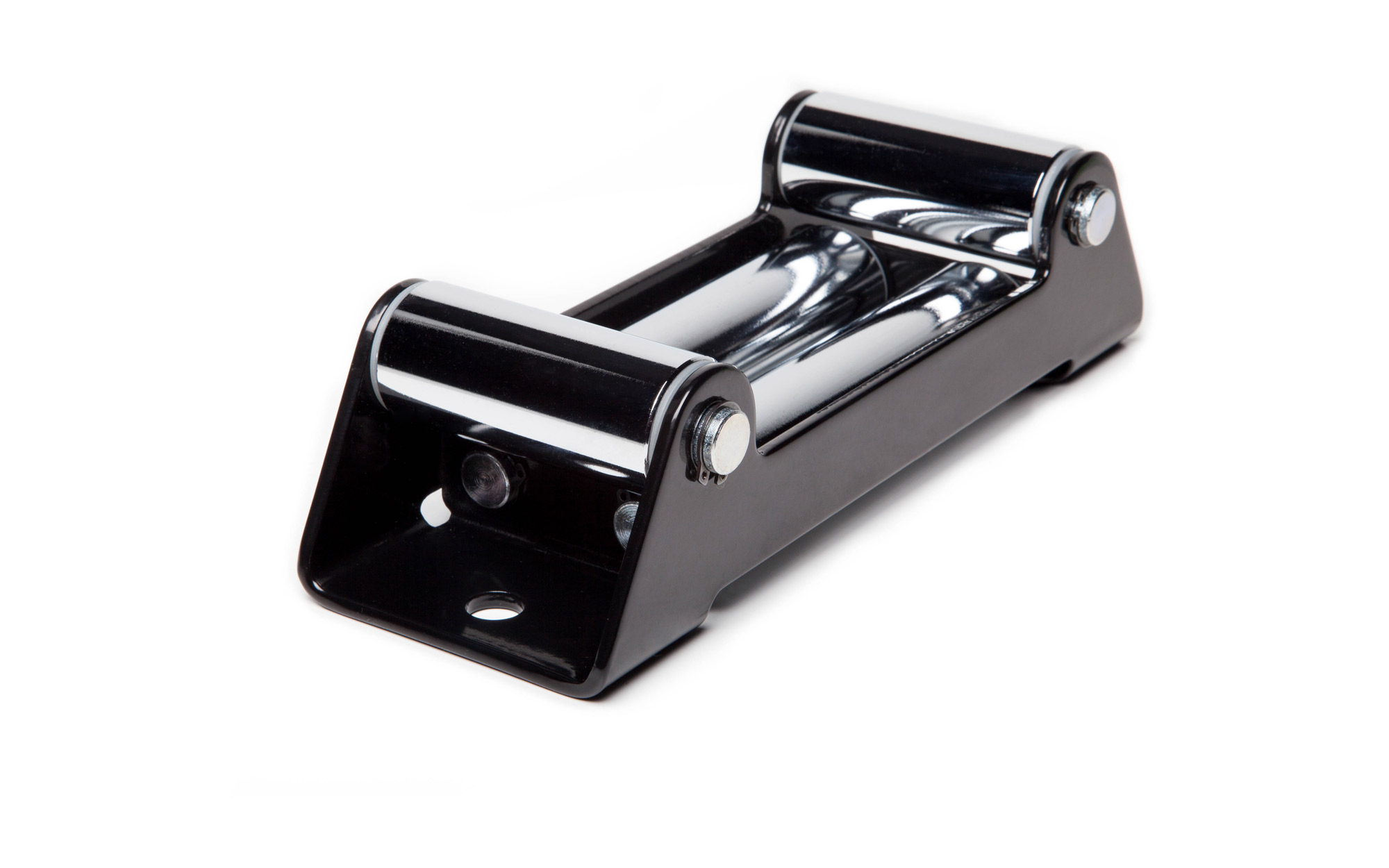

  • x1 Roller Guides

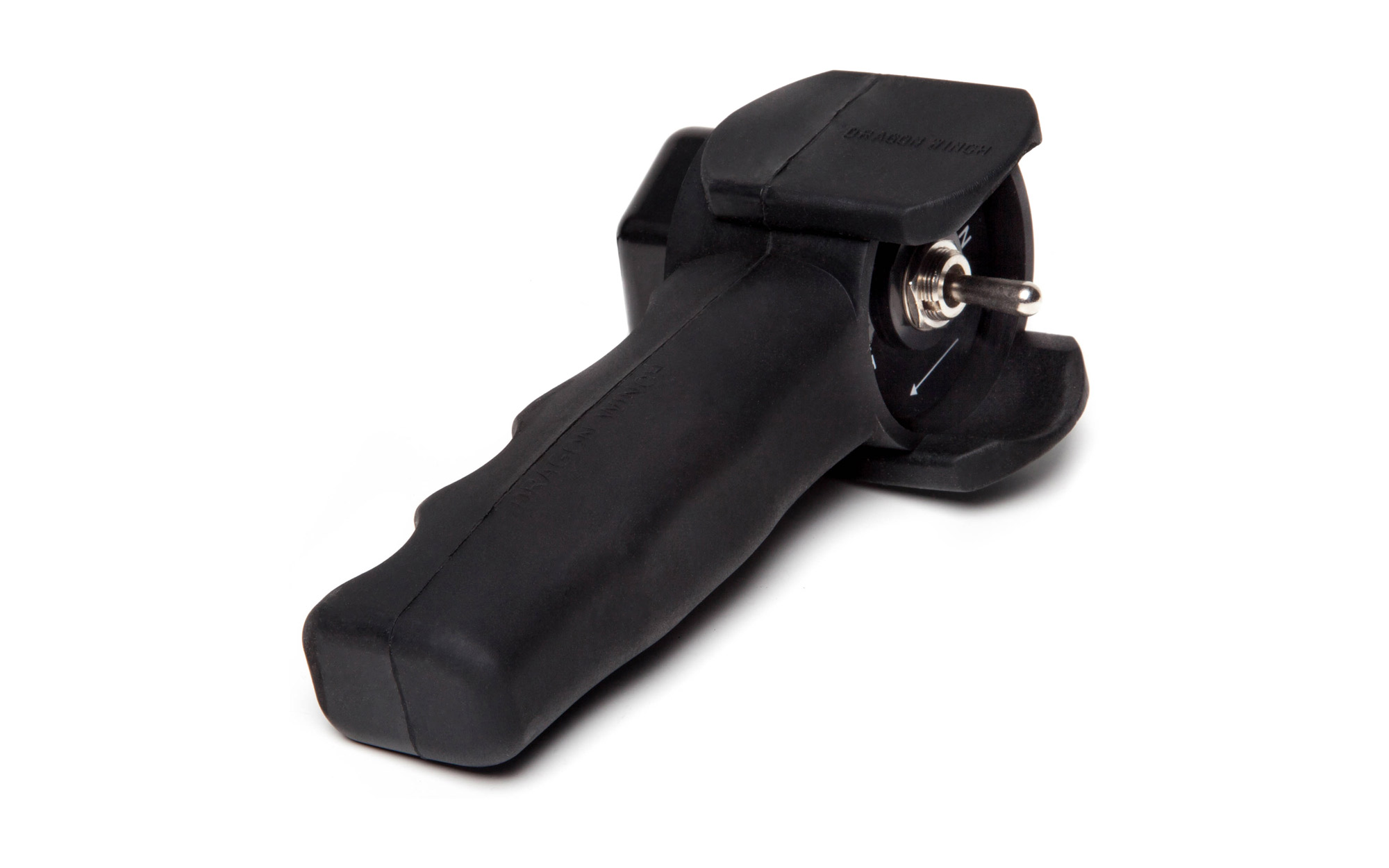

  • x1 Wired Hand Control

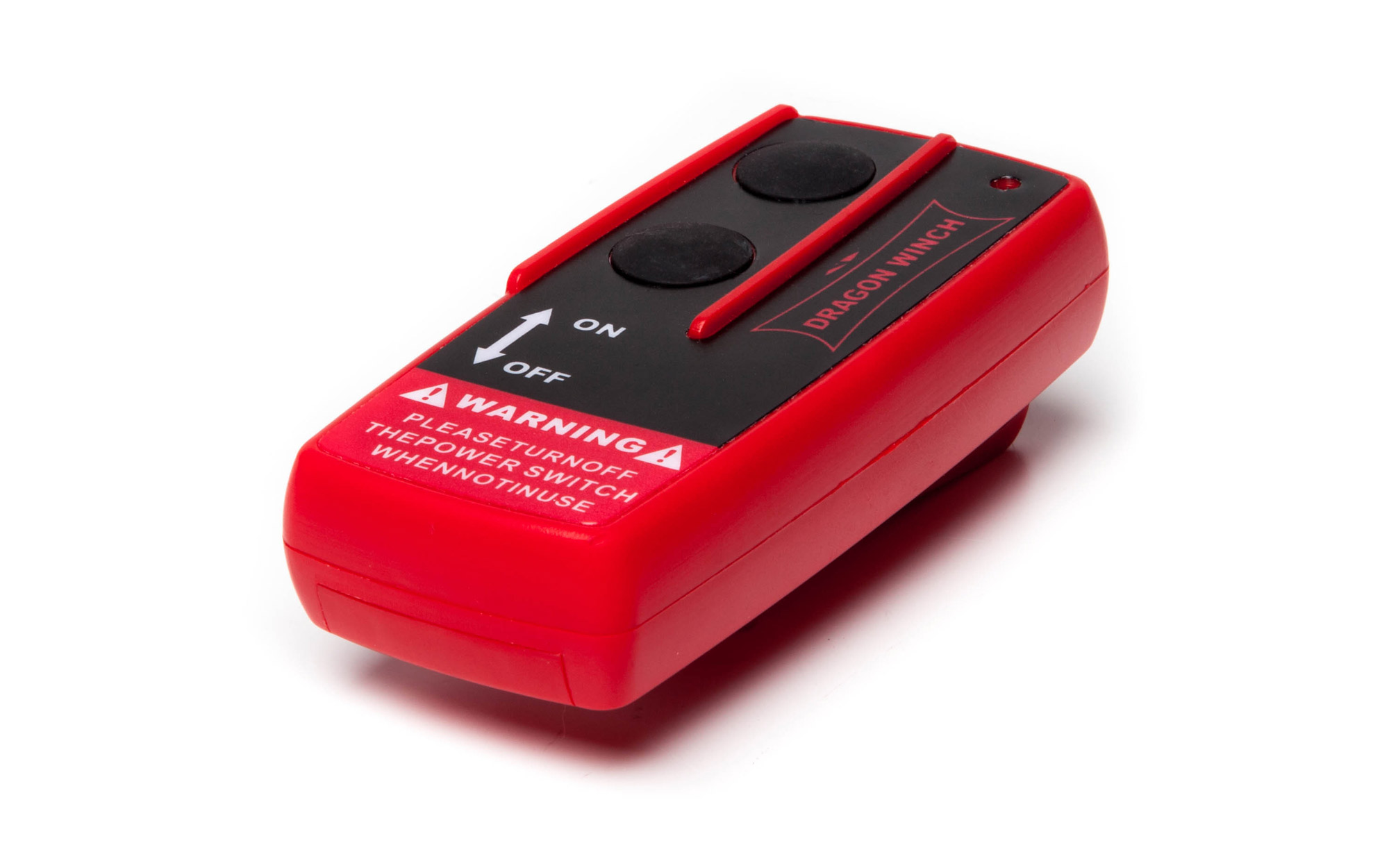

  • x1 Wireless Controller
  • x1 Wireless Controller Batteries (23A)

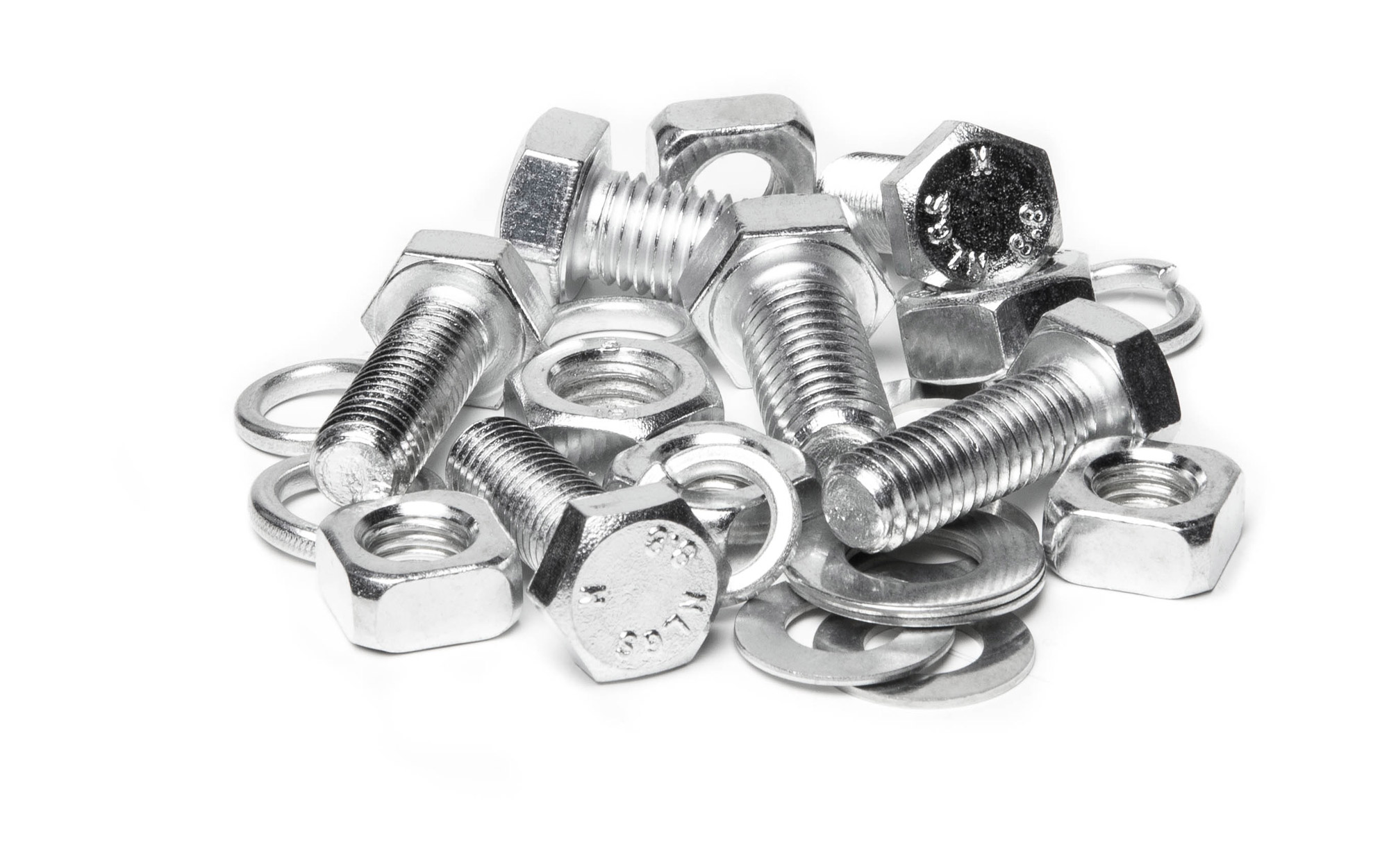

  • x1 Mounting Screws

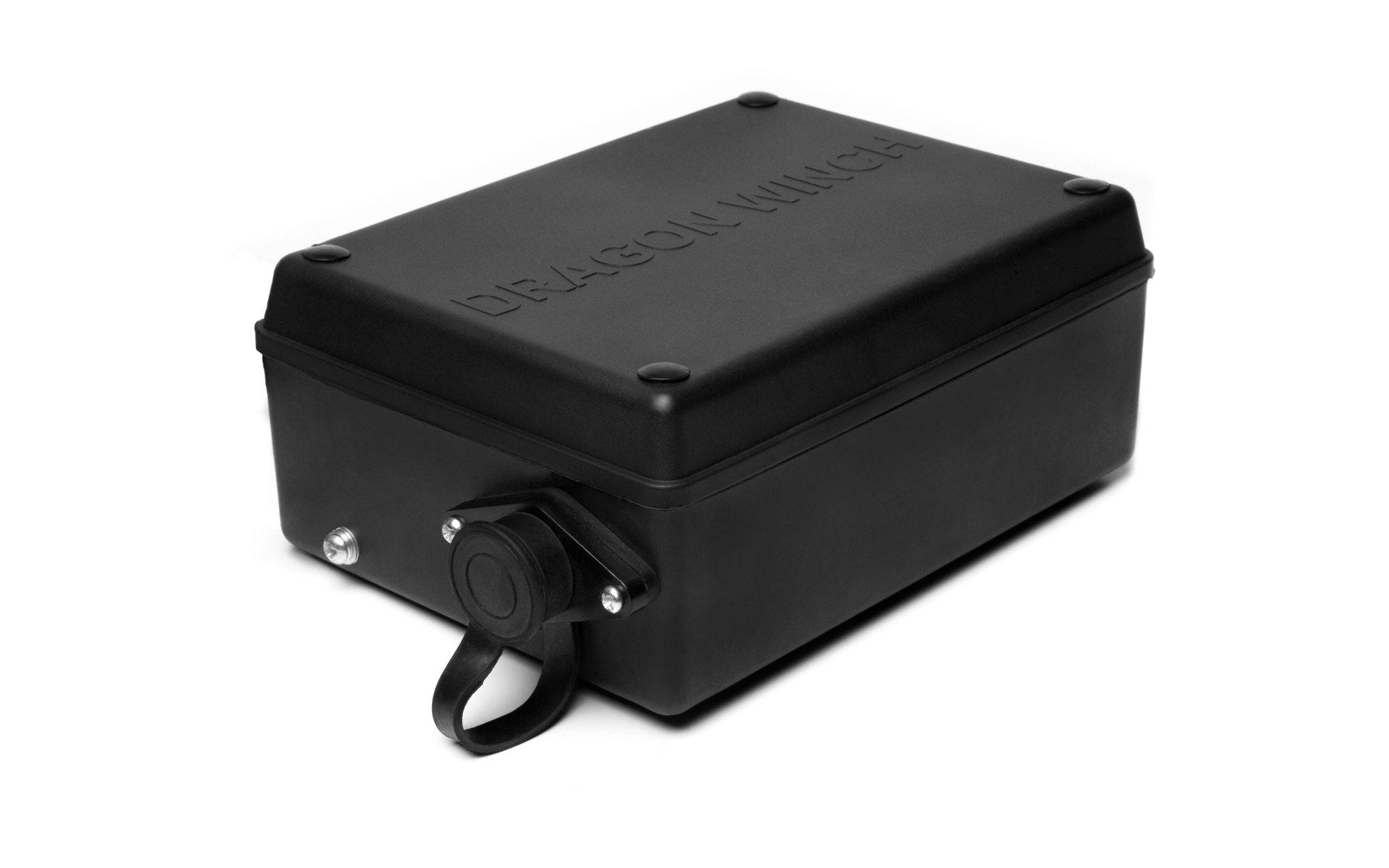

  • x1 Control Box

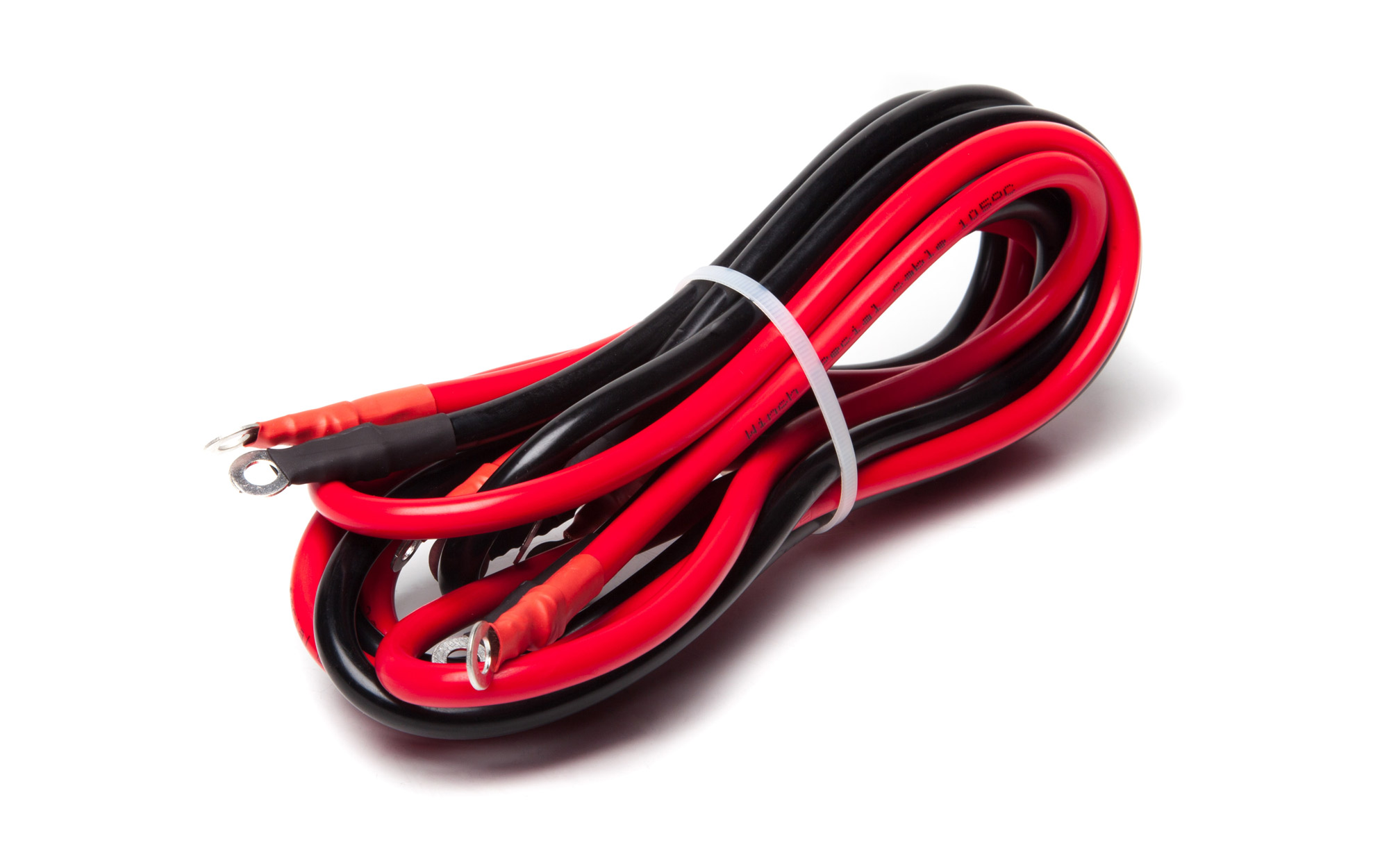

  • x1 Power Cable
  • x1 Instruction Manual
Suggested Uses
  • Recovery Vehicles
  • UTVs
  • Off-Road & 4x4s
  • Industrial & Construction
  • Trailers
